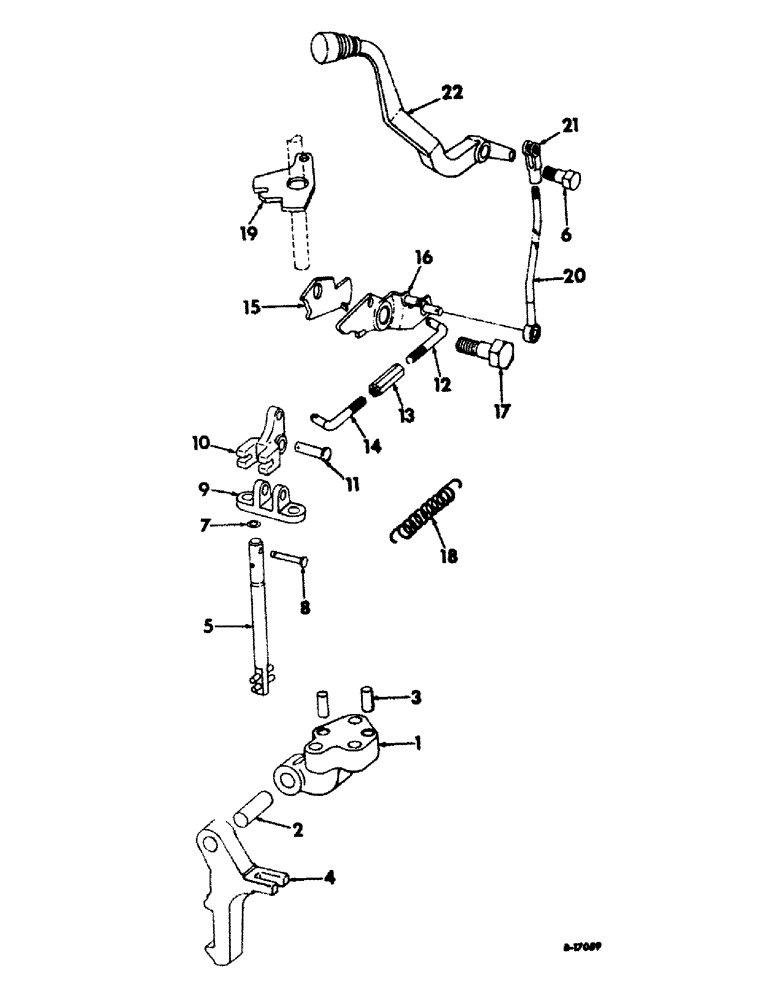

Запчасти Case IH 2826 (07-61) - DRIVE TRAIN, PARKING LOCK, HAND OPERATED, RANGE TRANSMISSION (04) - Drive Train

1

384055R11

BRACKET

ASSY, parking lock lever support

1шт.

364257R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

SCREW, 1/2-13 x 1-3/4 hex-hd. cap

3шт.

2

19969R1

DOWEL,3/4" x 2 1/4"

PIN, 3/4 x 2-1/4 dowel

1шт.

3

20024R1

PIN

3/8 x 1 dowel

2шт.

4

384094R2

LEVER

parking lock

1шт.

5

384096R11

ROD

SHAFT ASSY, parking lock actuating

1шт.

19967R1

DOWEL,1/4" x 1 1/4"

PIN, 1/4 x 1-1/4 dowel

2шт.

6

386133R2

LOCK BOLT,Hex, 3/8" - 16 x 1.40"

BOLT, park lock handle

1шт.

7

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 x 5/8 x 1/16, parking lock actuating shaft

1шт.

8

385098R1

HEADED PIN,1/4" x 1 11/16"

PIN, operating lever

1шт.

103383

COTTER PIN,1/8" x 1/2"

Pin, Split (Cotter), 1/8" x 1/2"

1шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .065

1шт.

9

384259R1

BRACKET

park lock operating lever

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

10

384260R1

LEVER

park lock operating

1шт.

11

52893H

CLEVIS PIN,3/8" x 1.781"

PIN, 3/8 x 1-25/32 rod end

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

12

390858R1

ROD

park lock front operating

1шт.

272120

CONNECTING LINK

7/16-14 hex, jam

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

1шт.

13

390856R1

TURNBUCKLE

park lock adjustment

1шт.

14

390857R1

ROD

park lock rear operating

1шт.

19334R1

NUT,7/16"-20, G5, LH

7/16-14 LH thd. hex

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

1шт.

432-48

COTTER PIN,1/16" x 1/2"

WASHER, 13/32 x 13/16 x .065

1шт.

15

385097R3

PAWL

neutral lock plate

1шт.

16

386127R11

LEVER

BELLCRANK ASSY, park lock ever center actuating

1шт.

17

383153R3

BOLT,Shldr, Hex, 5/8" - 11 x 1.80"

BOLT, park lock bellcrank pivot

1шт.

18

208354R1

VALVE SPRING

SPRING, park lock actuating

1шт.

19

NSS

NOT SOLD SEPARAT

PLATE ASSY, neutral lock, refer to gear shift levers listing, this section

1шт.

443039

PIN

1/4 x 1-1/4 groove

1шт.

20

386134R11

ROD

ASSY, park lock actuating

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

21

213-316

ADJUSTABLE CLEVIS,3/8" - 24

CLEVIS, 3/8-24 x 2-3/16 short adj. rod end

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

103496

CLEVIS PIN,3/8" x 1.060"

PIN, 3/8 x 1-3/32 rod end

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

22

386132R1

HANDLE

park lock

1шт.
