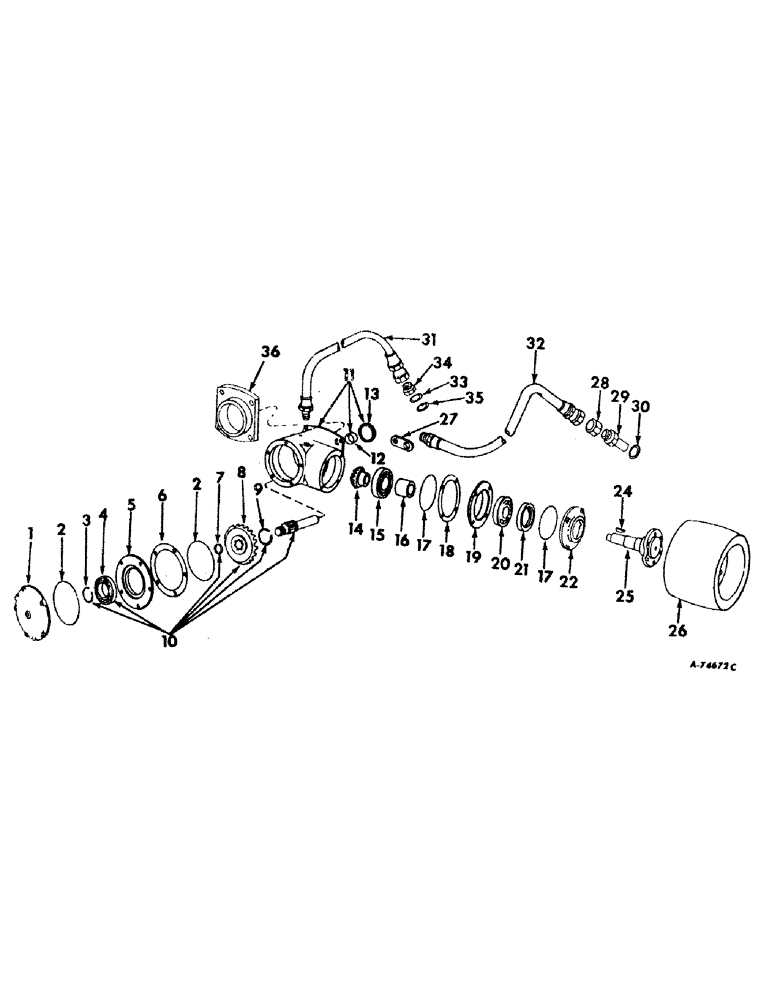

Запчасти Case IH 2826 (07-54) - DRIVE TRAIN, BELT PULLEY, TRACTORS WITH INDEPENDENT PTO (04) - Drive Train

NSS

NOT SOLD SEPARAT

ATTACHMENT, belt pulley, 386026R91

1шт.

1

373059R1

RETAINER, pulley drive gear brg.

1шт.

9617020

PLUG,1/4" - 18 x 0.48"

1/4-18 auto. Hex Socket

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8-16 x 1-3/8 hex-hd. cap

5шт.

2

252741R1

O-RING

53/4 x 6 x 1/8, pulley drive gear bearing cage or retainer

2шт.

3

NSS

NOT SOLD SEPARAT

RING, pulley drive gear bearing snap, order 388211R91

1шт.

4

NSS

NOT SOLD SEPARAT

BEARING, pulley drive gear roller, order 388211R91

1шт.

5

373055R1

CAGE, pulley drive gear bearing

1шт.

6

373056R1

SHIM, pulley drive gear brg case, .007

1шт.

6

373057R1

SHIM, pulley drive gear brg cage, .012 (or as required)

2шт.

6

373058R1

SHIM, pulley drive gear brg cage, .0299 (or as required)

2шт.

7

145201R1

PLUG

input shaft

1шт.

8

NSS

NOT SOLD SEPARAT

GEAR, pulley drive bevel, 19 teeth, order 388211R91

1шт.

9

325051R1

RING, pulley drive bevel gear snap

1шт.

10

388211R91

GEAR AND SHAFT ASSY, drive

1шт.

11

384320R11

HOUSING ASSY, belt pulley drive

1шт.

9617020

PLUG,1/4" - 18 x 0.48"

1/4-18 auto. Hex Socket

2шт.

9409947

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG, 3/4-14 auto. sq-soc. pipe

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

12

364725R2

BUSHING, input shaft

1шт.

13

365416R91

OIL SEAL

pulley drive gear hub oil

1шт.

14

384323R2

GEAR, driven bevel, 20 teeth

1шт.

70120D

SLOTTED NUT,7/8"-14

NUT, pulley shaft gear retainer

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

358235

WASHER, pulley shaft gear retainer

1шт.

15

384324R91

BEARING, pulley shaft inner roller

1шт.

16

373061R1

SPACER, pulley shaft bearing

1шт.

17

393729R1

SHIM

O-RING, 4-3/4 x 5 x 1/8, pulley shaft retainer or cage

2шт.

18

364741R2

SHIM, pulley shaft bearing cage, .007 (or as required)

2шт.

19

364740R1

CAGE, pulley shaft bearing

1шт.

20

384325R91

BEARING, pulley shaft outer roller

1шт.

21

365434R91

OIL SEAL

SEAL, pulley shaft brg retainer oil

1шт.

22

NSS

NOT SOLD SEPARAT

RETAINER, pulley shaft bearing, not serviced separately

1шт.

179842

SPACER

3/8-16 x 1-3/8 hex-hd. cap

4шт.

23

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

24

40093D

WOODRUFF KEY,#127, 1/4" x 2 1/8", HT

KEY, 1/4 x 2-1/8 Woodruff 127

1шт.

25

384326R1

SHAFT, pulley

1шт.

26

364748R91

PULLEY, belt, 11 in. dia x 7-1/2 in. face

1шт.

181428

BOLT,Hex, 1/2" - 20 x 1 1/8", Gr 5

SCREW, 1/2-20 x 1-1/8 hex-hd. cap

6шт.

27

384331R1

RETAINER, plug storage

1шт.

28

9403370

CAP,37 Degree, 1/2"-20

1/2-20 C-Z 37 deg. hyd. flared tube

1шт.

29

384328R1

HYD CONNECTOR,1/2" - 20 JIC x 3/8" - 24 JIC

CONNECTOR, orifice

1шт.

30

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

31

384329R91

HOSE ASSEMBLY, belt pulley inlet

1шт.

105423

ELBOW,90 Degree, 1/4" NPT Street

1/4 90 deg. street

1шт.

32

393452R91

HOSE ASSEMBLY, belt pulley outlet

1шт.

34

9410357

PLUG

1/2-20 C-Z str. thd. o-ring boss, in independent PTO cover when belt pulley is not in use

1шт.

36

NSS

NOT SOLD SEPARAT

(Not used in this application)

1шт.

33

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.

35

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, Used w/plug, 9410357

1шт.
