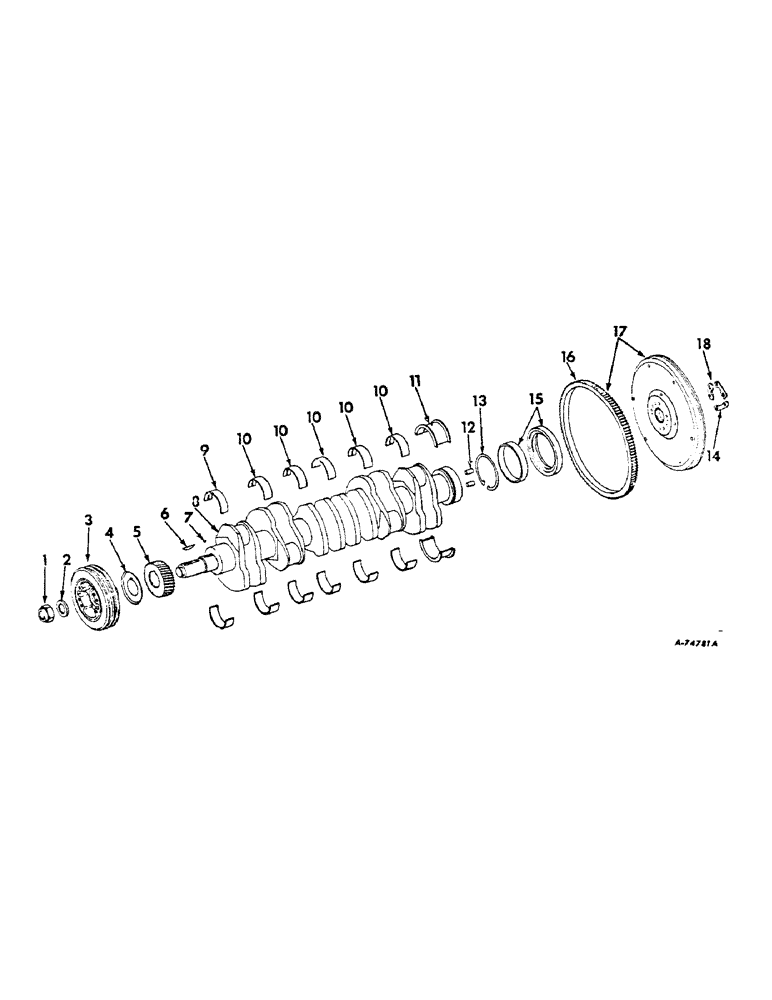

Запчасти Case IH 2806 (D-10) - DIESEL ENGINE, CRANKSHAFT, FLYWHEEL AND BEARINGS (01) - ENGINE

1

19857R1

NUT

starting

1шт.

2

116451H

WASHER

starting nut

1шт.

3

701036C93

DAMPER

vibration damper service, also order seal assy, 606780C91

1шт.

4

612280C1

SLINGER

crankshaft oil

1шт.

5

326705R1

PINION

GEAR, crankshaft

1шт.

6

332421R2

KEY

vibration damper

1шт.

7

124556

WOODRUFF KEY,#18, 1/4" x 1 1/8", HT

Crankshaft gear #18, 1/4" x 1 1/8", HT

1шт.

8

323985R92

CRANKSHAFT

ASSY, std, composed of (6) bearing 323962R11, (1) bearing 328771R91, (5) bearing 328774R91, (1) bearing 328777R91, (1) crankshaft 323882R2 (NSS), (2) pin 19838R1, (6) plug 50410DA

1шт.

8

349054R92

CRANKSHAFT W/BEARINGS FIELD PACKAGE, undersize, consists of six connecting rod bearings, seven crankshaft bearings and crankshaft

1шт.

9

328771R91

BEARING SET

BEARING ASSY, crankshaft front, 2 halves, std

1шт.

9

341536R91

BEARING ASSY, crankshaft front, 2 halves, .002 U/S

1шт.

9

341545R91

BEARING SET

ASSY, crankshaft front, 2 halves, .010 U/S

1шт.

9

341554R91

CRANKSHAFT BEARING

BEARING ASSY, crankshaft front, 2 halves, .020 U/S

1шт.

9

341563R91

BEARING SET

ASSY, crankshaft front, 2 halves, .030 U/S

1шт.

10

328774R91

BEARING SET

BEARING ASSY, crankshaft intermediate, 2 halves, std

5шт.

10

341539R91

BEARING ASSY, crankshaft intermediate, 2 halves, .002 U/S

5шт.

10

341548R91

BEARING SET

ASSY, crankshaft intermediate, 2 halves, .010 U/S

5шт.

10

341557R91

CRANKSHAFT BEARING

BEARING ASSY, crankshaft intermediate, 2 halves, .020 U/S

5шт.

10

341566R91

BEARING SET

ASSY, crankshaft intermediate, 2 halves, .030 U/S

5шт.

11

328777R91

BEARING SET

BEARING ASSY, crankshaft rear, 2 halves, std

1шт.

11

341542R91

CRANKSHAFT BEARING

BEARING ASSY, crankshaft rear, 2 halves, .002 U/S

1шт.

11

341551R91

BEARING SET,Piston Rod

BEARING ASSY, crankshaft rear, 2 halves, .010 U/S

1шт.

11

341560R91

BEARING LINER

BEARING ASSY, crankshaft rear, 2 halves, .020 U/S

1шт.

11

341569R91

BEARING SET

ASSY, crankshaft rear, 2 halves, .030 U/S

1шт.

12

19838R1

DOWEL,15.88mm OD x 31.75mm L

PIN, flywheel to crankshaft dowel

2шт.

13

456736R1

SNAP RING,2.062", Int, #206

Ring, Snap, 2.062", Int, #206

1шт.

14

345473R1

RETAINER

LOCK, bolt

1шт.

15

326701R92

SEAL, crankshaft rear oil, in order to convert engines to lip type seal, order package, 609332C91, up to engine serial no. 21596

1шт.

15

609333C91

PACKAGE

SEAL, w/sleeve, crankshaft rear oil, engine serial no. 21597 & above

1шт.

16

341604R1

GEAR

flywheel ring, 132 teeth

1шт.

17

341603R31

FLYWHEEL

ASSY

1шт.

330059R1

BOLT

BOLT, flywheel to crankshaft, 1/2-20 x 1-5/8, type 4, D361, Serial Range: 501-12666

6шт.

327131R1

BOLT

BOLT, flywheel to crankshaft, 1/2-20 x 1-1/2, D-361 12667 up

6шт.

18

345472R1

RETAINER

LOCK, bolt

2шт.

18

609332C91

PACKAGE

crankshaft rear oil seal conversion, consists of seal, 609333C91 & retainer, 601743C1, up to engine serial no. 21596

1шт.
