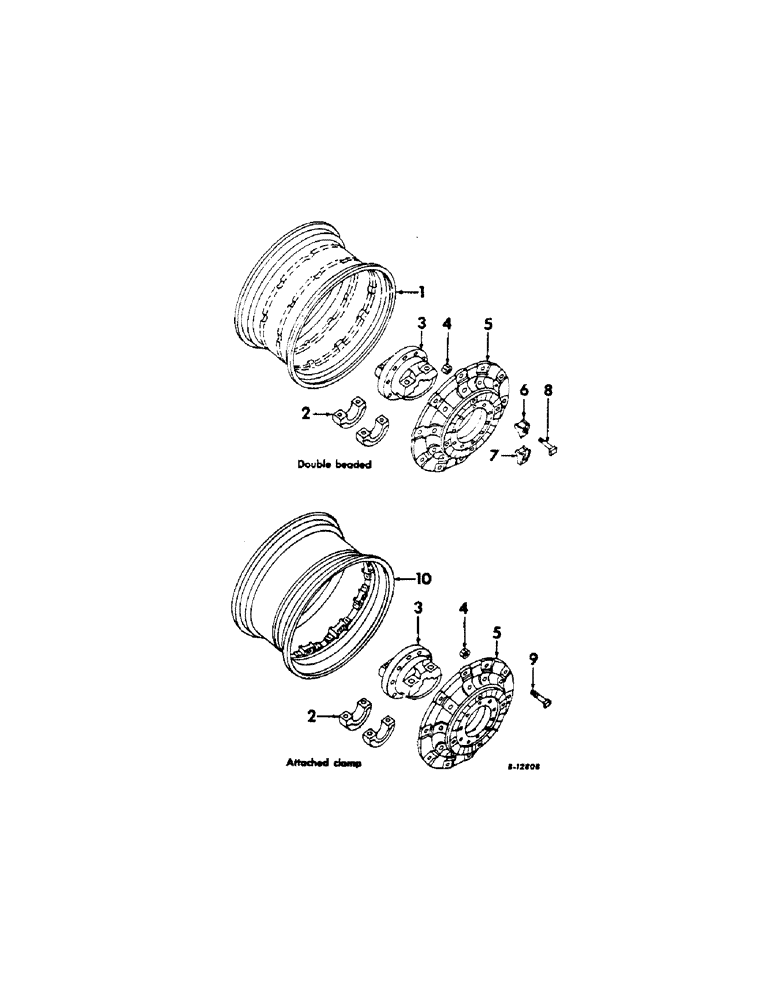

Запчасти Case IH 2806 (L-08[A]) - WHEELS & WHEEL WEIGHTS, REAR WHEELS, INTERNATIONAL TRACTORS Wheels & Wheel Weights

1

380868R1

RIM

rear wheel, W16L-34 rim for 18.4-34 tire

2шт.

2

380863R2

COLLAR

CLAMP, rear wheel hub

4шт.

385784R11

STUD

STUD W/NUT ASSY, rear wheel hub clamp

8шт.

384697R1

WASHER

rear wheel hub clamp stud

8шт.

3

380861R2

HUB, rear wheel

2шт.

271614

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW, 3/4-10 x 2-3/4 hex-hd cap

20шт.

4

352536R1

NUT

rear wheel rim clamp bolt, 20 for 30 in. wheels

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

20шт.

4

352536R1

NUT

rear wheel rim clamp bolt, 24 for 34 in. wheels

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

24шт.

5

380855R1

WHEEL, 30 in. rear

2шт.

5

380858R1

WHEEL, 34 in. rear

2шт.

6

380870R1

CLAMP

rear wheel rim, 16 for 30 in. wheels

1шт.

6

380870R1

CLAMP

rear wheel rim, 20 for 34 in. wheels

1шт.

7

397251R1

CLAMP

rear wheel rim fixed, will work for 380871R1

4шт.

8

380878R1

BOLT (SPREADER),Sq Hd, 3/4" - 16 x 2 3/4"

BOLT, rear wheel rim clamp, 20 for 30 in. wheels

1шт.

9

384070R1

WHEEL BOLT,Sq Hd, 3/4" - 16 x 4 1/2"

BOLT, rear wheel rim mounting, 20 for 30 in. wheels

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

20шт.

9

384070R1

WHEEL BOLT,Sq Hd, 3/4" - 16 x 4 1/2"

BOLT, rear wheel rim mounting, 24 for 34 in. wheels

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

24шт.

10

384068R91

RIM

ASSY, rear wheel, DW20-30 rim for 23.1-30 tire

2шт.

10

384069R91

RIM ASSY, rear wheel, DW20-34 rim for 23.1-34 tire

1шт.

373941R2

SOCKET WRENCH

WRENCH, 1-5/16 box

1шт.
