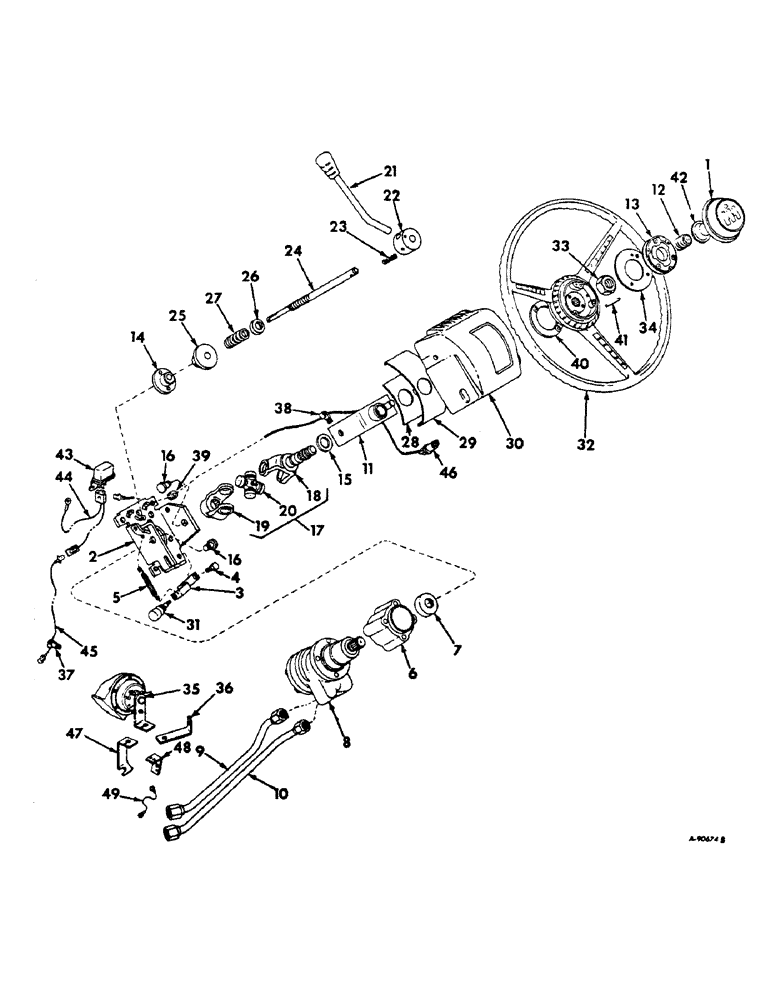

Запчасти Case IH 2806 (J-28) - STEERING MECHANISM, TILT STEERING WHEEL Steering Mechanism

400178R91

PARTS ACCESSORY, tilt steering wheel, Farmall carbureted tractors and Farmall diesel w/D-310 engine, consists of ref nos. 1 thru 34

1шт.

400179R91

PARTS ACCESSORY, tilt steering wheel, International carbureted tractors and International diesel w/D-310 engine, consists of nos. 1 thru 34

1шт.

400180R91

PARTS ACCESSORY, tilt steering wheel, Farmall diesel tractors w/D-282 engine, consists of ref nos 1 thru 34

1шт.

400181R91

PARTS ACCESSORY, tilt steering wheel, International diesel tractors w/D-282 engine, consists of ref nos 1 thru 34

1шт.

400397R91

PARTS ACCESSORY, electric horn, carbureted engine tractors and diesel engine tractors w/D-282 engines, consists of ref nos 35 thru 49

1шт.

400398R91

PARTS ACCESSORY, electric horn, diesel engine tractors w/D-310 engine, consists of ref nos 35, 36 and 38 thru 49

1шт.

1

400220R1

BUTTON

& INSERT ASSY, horn

1шт.

2

400182R2

SUPPORT, steering wheel lower

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/18-18 x 3/4 C-Z hex-hd cap

3шт.

3

400183R1

SUPPORT ASSY, release lever

1шт.

4

400862R1

BOLT,Hex, 5/16" - 18 x 0.85"

shoulder

1шт.

3

400185R1

SPRING

release lever

1шт.

6

400186R1

HUB, power steering hand pump

1шт.

7

226032R1

SEAL

hand pump dust

1шт.

8

400187R92

PUMP

ASSY, steering hand, Farmall tractors, for components see list of parts under details of hydrostatic power steering hand pump

1шт.

8

400188R92

PUMP ASSY, steering hand, International tractors, for components see list of parts under details of hydrostatic power steering hand pump

1шт.

180112

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

SCREW, 5/16-18 x 2-3/4 C-Z hex-hd cap

4шт.

404178R1

SCREW, steering, wheel support

1шт.

9

400189R1

TUBE

ASSY, rear valve, Serial Range: port-left

1шт.

10

400191R1

TUBE

ASSY, front valve port to right port hand pump upper section

1шт.

11

400193R91

SUPPORT

& BUSHING ASSY, upper

1шт.

12

400396R1

SPRING

steering wheel horn button

1шт.

13

400395R1

PLATE

ASSY, base

1шт.

162906

SCREW, no. 10 x 5/8 slt-rd-hd type 8 tap, C-Z

3шт.

14

398283R1

INSERT, governor control rod

1шт.

19955R1

PIN,1/4" x 1/2", Coiled

1шт.

15

403472R1

SPACER

tilt wheel .015, optional with 403473R1, (or as required)

2шт.

15

403473R1

SPACER

tilt wheel .030, optional with 403472R1, (or as required)

1шт.

16

400200R1

PIN

upper shaft support pivot

2шт.

376787R1

WASHER

X-type

2шт.

17

400201R91

JOINT

ASSY, tilt wheel shaft & yoke

1шт.

18

400202R1

YOKE

ASSY, tilt wheel shaft

1шт.

19

400204R91

JOINT

ASSY, bearing & spider

1шт.

400205R1

YOKE

fitting

1шт.

20

150635R92

SPIDER

BEARING & SPIDER ASSY

1шт.

21

400206R1

HANDLE ASSY, governor control

1шт.

22

400208R1

HUB, governor control handle, order hub 406396R1 and ball 16011R1

1шт.

22

406396R1

HUB, governor control handle

1шт.

618638R1

PIN,3/16" x 1 1/8", Coiled

1шт.

16011R1

BALL

11/32 cr-stl

1шт.

23

400209R1

VALVE SPRING

SPRING, governor control poppet, diesel engine tractors

1шт.

24

400210R1

SHAFT, governor control upper, for service replacement furnish, shaft 404246R1, yoke assy 404240R1, set screw 333800R1

1шт.

24

404246R1

SHAFT

governor control upper

1шт.

21492R1

PIN

3/16 x 1-5/8 HV coiled spring

1шт.

25

403279R1

RETAINER ASSY, governor control friction

1шт.

382816R1

SET SCREW

1/4-20 x 3/8 hex-soc-hd cone pt set

1шт.

26

370628R1

RETAINER

RETAINER, governor control valve

1шт.

27

371603R1

SPRING, touch control friction

1шт.

28

400211R1

SHIM, shield back-up

1шт.

29

400212R1

SHIELD

tilt wheel

1шт.

30

400213R1

COVER

tilt wheel

1шт.

160515

SCREW,Cross Pan Hd, 1/4" - 20 x 1/2"

3шт.

31

400214R1

KNOB

GRIP ASSY, release lever

1шт.

16559R1

WASHER,1/4"

17/64 x 5/8 x .048 C-Z

1шт.

12

400217R1

WHEEL (STEERING)

WHEEL, steering

1шт.

33

400219R1

NUT, steering wheel

1шт.

34

402434R1

SEAL, horn button

1шт.

35

166166R91

HORN

ASSY

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

36

396527R1

SUPPORT, horn assy, tractors w/D-282 engine

1шт.

36

396528R1

SUPPORT, horn assy, tractors w/D-310 engine

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Thru support into radiator Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

37

366460R1

CABLE CLIP

CLIP, horn switch to horn cable, tractors w/D-282 engine

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

38

400392R1

CLIP

contact roller switch cable

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

109084

NUT,1/4"-20, G5

1шт.

39

140711

GROMMET,1/4" ID x 5/8" x .188", Str Cut

rubber

1шт.

40

400393R1

PLATE, steering wheel contact roller

1шт.

125702

SCREW, 6-18 x 1/2 slt-f-hd tap.

2шт.

41

400394R1

SPRING

base plate to contact rate

1шт.

42

68025H

CUP

contact

1шт.

43

1116920

RELAY

horn, Delco-Remy

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

109084

NUT,1/4"-20, G5

2шт.

44

405243R1

CABLE ASSY, horn relay, will work for 400390R1

1шт.

45

400401R1

CABLE ASSY, horn relay, Serial Range: junction-horn

1шт.

46

400391R1

SWITCH

contact roller

1шт.

47

396529R1

BRACE, horn assy support bracket

1шт.

113913

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

SCREW, 5/16-18 x 7/8 slt-f-hd

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

615031R1

WASHER

/38 x 7/8 x .083

1шт.

48

(Not used in this application)

1шт.

49

405219R1

CABLE

ASSY, horn to ground, will work for 396530R1

1шт.
