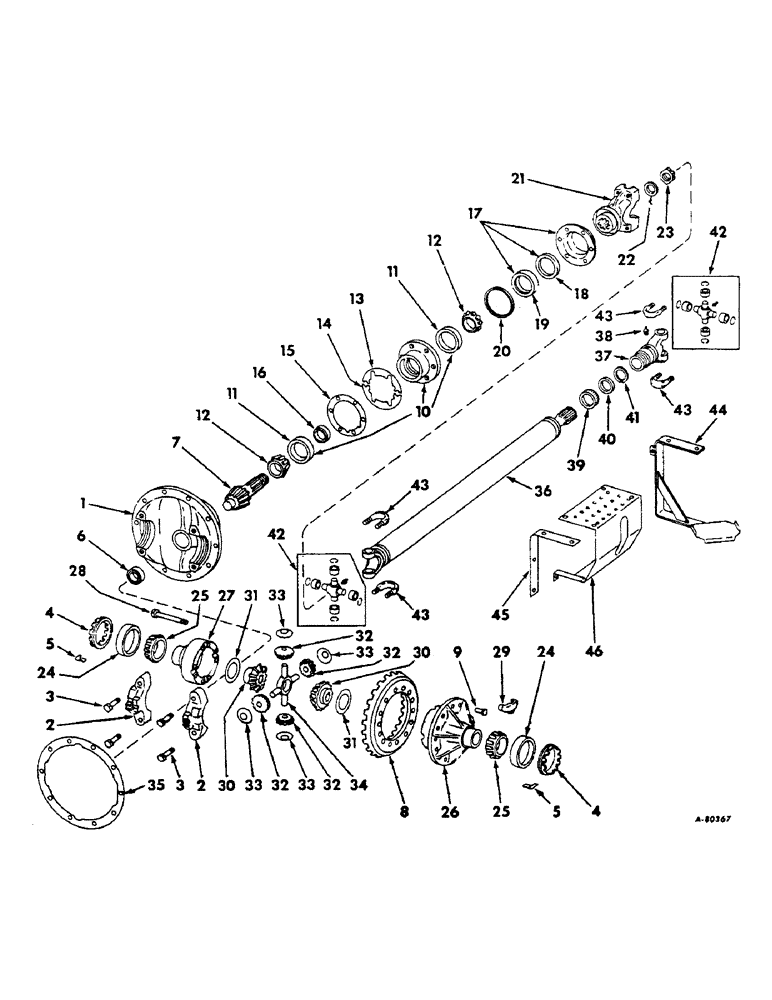

Запчасти Case IH 2806 (J-26) - STEERING MECHANISM, FRONT AXLE DIFFERENTIAL AND DRIVE SHAFT, TRACTORS WITH ALL WHEEL DRIVE Steering Mechanism

385774R91

CARRIER ASSY, differential, consists of ref nos. 2 thru 34 & attaching parts

1шт.

1

69016R93

CARRIER, w/caps & screw, differential

1шт.

208491R1

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8

SCREW, 7/16-14 x 1-1/4 hex-hd cap

8шт.

130560R1

SCREW,Hex, 7/16" - 14 x 2 1/4"

7/16-14 x 2-1/4 hex-hd cap

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

10шт.

2

NSS

NOT SOLD SEPARAT

CAP, carrier, not serviced separately order carrier, 69016R92

1шт.

3

69018R1

SCREW

differential carrier cap

4шт.

4

54528HA

ADJUSTER, differential brg

2шт.

5

13875V

LOCK

differential brg adjuster

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

6

119461R91

BEARING, ROLLER, CYL,25mm ID x 52mm OD x 20.64mm W

pinion pilot

1шт.

7

PINION, bevel drive, order 385783R91

1шт.

8

GEAR, bevel drive, order 385783R91

1шт.

9

69017R1

RIVET

bevel drive gear

14шт.

10

385775R91

CAGE

ASSY, pinion brg

1шт.

11

917217R1

BEARING, CUP

BEARING, pinion shaft cup

2шт.

12

917218R91

ROLLER BEARING

ASSY, pinion shaft cone

2шт.

13

52773HA

SHIM, pinion brg cage upper, .003

1шт.

14

52774H

SHIM, pinion brg cage lower, .003

1шт.

15

683264R1

SHIM

pinion brg cage, .005

1шт.

15

52748HA

SHIM

pinion brg cage, .010

1шт.

15

52749HA

SHIM, pinion brg cage, .030

1шт.

16

49412HA

SPACER, pinion shaft brg, .516/.517

1шт.

16

49413HA

SPACER, pinion shaft brg, .519/.520

1шт.

16

49414HA

SPACER, pinion shaft brg, .522/.523

1шт.

16

92309R2

SPACER, pinion shaft brg, .524/.525

1шт.

16

49415HA

SPACER

pinion shaft brg, .525/.526

1шт.

16

386894R1

SPACER, pinion shaft brg, .506/.507

1шт.

16

386895R1

SPACER, pinion shaft brg, .507/.508

1шт.

16

386896R1

SPACER, pinion shaft brg, .508/.509

1шт.

16

386897R1

SPACER, pinion shaft brg, .509/.510

1шт.

16

386898R1

SPACER, pinion shaft brg, .510/.511

1шт.

16

386899R1

SPACER, pinion shaft brg, .511/.512

1шт.

16

386900R1

SPACER, pinion shaft brg. .512/.513

1шт.

16

386901R1

SPACER, pinion shaft brg, .513/.514

1шт.

16

385776R1

SPACER, pinion shaft brg, .514/.515

1шт.

16

385777R1

SPACER, pinion shaft brg, .515/.516

1шт.

16

385778R1

SPACER, pinion shaft brg, .517/.518

1шт.

16

385779R1

SPACER, pinion shaft brg, .518/.519

1шт.

16

385780R1

SPACER, pinion shaft brg, .520/.521

1шт.

16

385781R1

SPACER, pinion shaft brg, .521/.522

1шт.

16

385782R1

SPACER, pinion shaft brg, .523/.524

1шт.

17

52727HBX

RETAINER ASSY, pinion shaft oil seal

1шт.

83968R1

BOLT,Hex, 9/16" x 1 1/2", Gr 8

SCREW, 9/16-12 x 1-1/2 hex-hd

6шт.

114756

LOCK WASHER,Ext Tooth, 9/16"

WASHER, 9/16 ext-tooth lock

6шт.

18

59871H

FELT

WASHER, pinion shaft oil seal retainer felt

1шт.

19

312460C91

RETAINER

SEAL, pinion shaft oil

1шт.

20

49392H

SEAL

CORK, pinion shaft oil seal retainer

1шт.

21

200991R11

FLANGE

YOKE ASSY, differential carrier end

1шт.

22

54557H

WASHER

WASHER, end yoke mounting nut

1шт.

23

117804H

NUT

end yoke mounting

1шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

24

59317R1

CUP

BEARING, differential case cup

2шт.

25

25695HO

ROLLER BEARING,66.688mm ID x 30.124mm

BEARING ASSY, differnetial case cone

2шт.

26

69189R1

BOX

CASE, differential, flanged half

1шт.

27

69184R1

CASE

differential, plain half

1шт.

28

69019R1

BOLT (SPREADER)

BOLT, differential case

8шт.

12565R1

NUT

1/2-20 phosphate coated type LLT hex. lock

8шт.

29

69170R1

LUBRICATOR, differential

1шт.

181063

BOLT,Hex, 1/4" - 20 x 3/4"

SCREW, 1/4-20 x 3/4 phosphate coated hex-hd cap

1шт.

115109

WASHER,1/4"

1шт.

30

69304R2

GEAR

differential side

2шт.

31

86233H

THRUST WASHER

differential side gear thrust

2шт.

32

869922R2

GEAR

PINION, differential

4шт.

33

88015H

WASHER

differential pinion thrust

4шт.

34

869921R2

U-JOINT SPIDER

SPIDER, differential pinion

1шт.

35

69177R1

GASKET

differential carrier

1шт.

36

387089R91

SHAFT

ASSY, stub, Farmall tractors

1шт.

36

387090R91

SHAFT ASSY, stub, International tractors

1шт.

17

913726R11

YOKE

ASSY, sleeve

1шт.

18

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

39

913731R1

RETAINER

CAP, dust

1шт.

40

913730R1

SEAL

cork

1шт.

41

913729R1

WASHER

steel

1шт.

42

913774R91

KIT

PACKAGE, journal & bearing

2шт.

43

204138R1

BOLT,7/16" - 20 x 2 1/4"

U-BOLT, drive shaft

4шт.

271505

BODY

7/16-20 hex.

8шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

44

385834R11

SUPPORT ASSY, shield & step, Farmall tractors

1шт.

45

385837R1

SUPPORT, shield, Farmall tractors

1шт.

46

385838R11

SHIELD ASSY, safety, Farmall tractors

1шт.

179812

GEAR

SCREW, 5/16-18 x 1/2 hex-hd cap

6шт.

375250R1

SCREW,Flg, 5/8" - 11 x 2 1/4"

5/8-11 x 2-1/4 twelve-pt cap, thru clutch housing, rear frame, shield and step

6шт.

271563

SUPPORT,Hex, 5/8" - 11 x 2 1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 hex-hd cap, clutch housing to rear frame

1шт.

271607

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5

SCREW, 3/4-10 x 1-1/2 hex-hd cap

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

385783R91

SET

GEAR SET, bevel drive, consists of ref nos. 7, 8 & 9

1шт.
