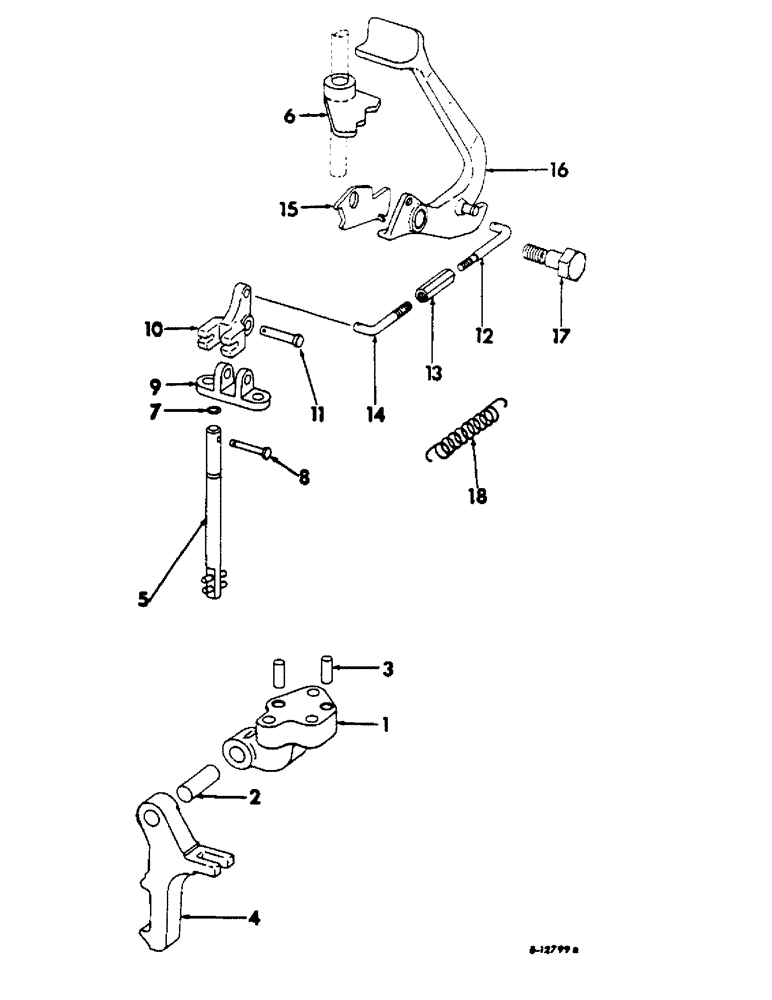

Запчасти Case IH 2806 (H-14) - CONTROLS, PARKING LOCK, FOOT OPERATED, RANGE TRANSMISSION Controls

1

384055R11

BRACKET

ASSY, parking lock lever support

1шт.

364257R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

SCREW, 1/2-13 x 1-3/4 hex-hd cap

3шт.

2

393184R1

PIN

3/4 x 2-1/4 dowel

1шт.

3

20024R1

PIN

3/8 x 1 dowel

2шт.

4

384094R2

LEVER

parking lock

1шт.

5

384096R11

ROD

SHAFT ASSY, parking lock actuating

1шт.

6

385095R11

PLATE ASSY, neutral lock

1шт.

188438

GROOVED PIN,1/4" x 1 1/2", Type F

Pin, Grooved, 1/4" x 1 1/2", Type F

1шт.

7

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 x 5/8 x 1/16

1шт.

8

385098R1

HEADED PIN,1/4" x 1 11/16"

PIN, operating lever

1шт.

103383

COTTER PIN,1/8" x 1/2"

Pin, Split (Cotter), 1/8" x 1/2"

1шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .065

1шт.

9

384259R1

BRACKET

park lock operating lever

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

10

384260R1

LEVER

park lock operating

1шт.

11

52893H

CLEVIS PIN,3/8" x 1.781"

PIN, 3/8 x 1-25/32 rod end

1шт.

103373

COTTER PIN,3/32" x 3/4"

PIN, 1/8 x 1/2 cot.

1шт.

12

384261R1

ROD

park lock front operating, order rod, 390857R1, rod, 390858R1, nut, 20742R1, nut, 272120 & turnbuckle, 390856R1, Farmall tractors up to serial no. 21638, International tractors up to serial no. 5237

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

1шт.

12

390858R1

ROD

park lock front operating, Farmall tractors with serial no. 21639 & above, International tractors with serial no. 5238 & above

1шт.

25-147

JAM NUT,Jam, 7/16"-14, G5

7/16-14 hex. jam

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

1шт.

13

382847R1

TURNBUCKLE

park lock adjustment, Farmall tractors up to serial no. 21638, International tractors up to serial no. 5237

1шт.

13

390856R1

TURNBUCKLE

park lock adjustment, Farmall tractors with serial no. 21639 & above, International tractors with serial no. 5238 & above

1шт.

14

384263R1

ROD

park lock rear operating, order rod, 390857R1, rod, 390858R1 nut, 20742R1, nut, 272120 & turnbuckle, 390856R1, Farmall tractors up to serial no. 21638, International tractors up to serial no. 5237

1шт.

137265

NUT, 3/8-16 LH thd hex. jam

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

14

390857R1

ROD

park lock rear operating, Farmall tractors with serial no. 21639 & above, International tractors with serial no. 5238 & above

1шт.

19334R1

NUT,7/16"-20, G5, LH

7/16-14 LH thd hex.

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

15

385097R3

PAWL

neutral lock plate

1шт.

16

384264R11

PEDAL ASSY, park lock operating

1шт.

17

383153R2

BOLT

park lock pedal pivot

1шт.

18

208354R1

VALVE SPRING

SPRING, park lock pedal

1шт.

386877R91

PACKAGE, park lock control service, used to convert from foot operated to hand operated parking lock

1шт.

Consists of (1) bellcrank 386127R11, (1) bolt 383153R2, (1) bolt 386133R1, (1) bracket 386131R1, (1) clevis 116536, (1) handle 386132R1, (1) nut 102365, (1) nut 114494, (2) pin 103373, (1) pin 103496, (1) pin 188438 (1) plate 386129R11, (1) rod 386134R11, (1) screw 179842, (1) washer 103341

1шт.
