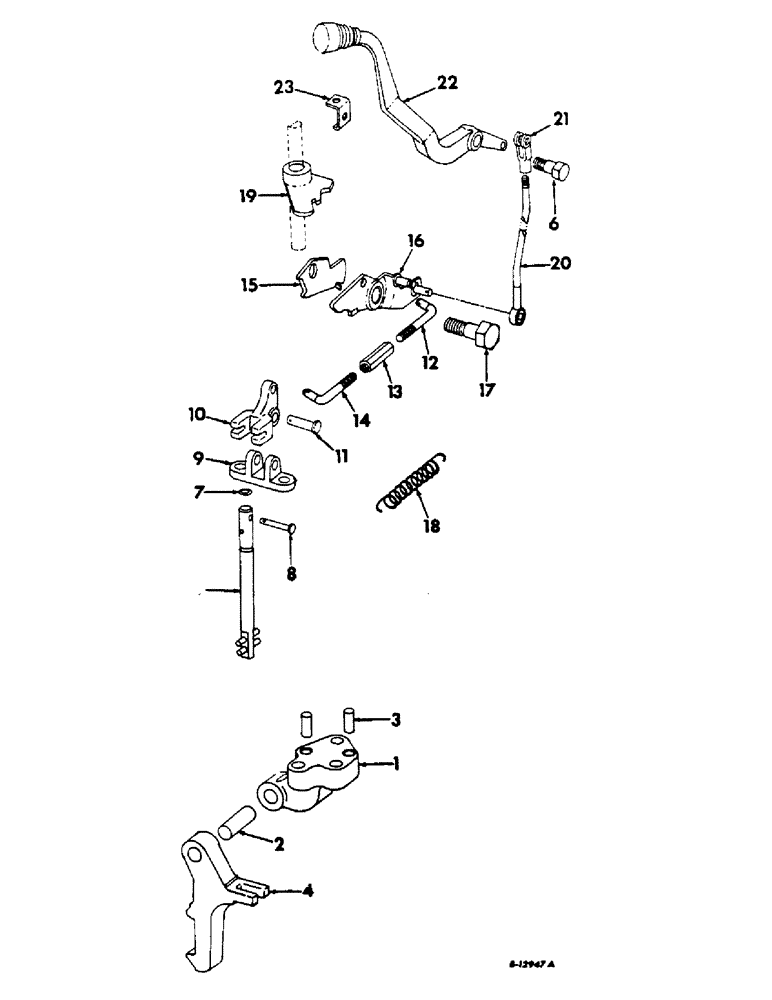

Запчасти Case IH 2806 (H-13) - CONTROLS, PARKING LOCK, HAND OPERATED, RANGE TRANSMISSION Controls

1

384055R11

BRACKET

ASSY, parking lock lever support

1шт.

364257R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

SCREW, 1/2-13 x 1-3/4 hex-hd cap

3шт.

2

393184R1

PIN

3/4 x 2-1/4 dowel

1шт.

3

20024R1

PIN

3/8 x 1 dowel

2шт.

4

384094R2

LEVER

parking lock

1шт.

5

384096R11

ROD

SHAFT ASSY, parking lock actuating

1шт.

6

386133R2

LOCK BOLT,Hex, 3/8" - 16 x 1.40"

BOLT, park lock handle pivot

1шт.

7

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1/2 x 5/8 x 1/16

1шт.

8

385098R1

HEADED PIN,1/4" x 1 11/16"

PIN, operating lever

1шт.

103383

COTTER PIN,1/8" x 1/2"

Pin, Split (Cotter), 1/8" x 1/2"

1шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .065

1шт.

9

384259R1

BRACKET

park lock operating lever

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

10

384260R1

LEVER

park lock operating

1шт.

11

52893H

CLEVIS PIN,3/8" x 1.781"

PIN, 3/8 x 1-25/32 rod end

1шт.

103373

COTTER PIN,3/32" x 3/4"

PIN, 1/8 x 1/2 cot.

1шт.

12

384261R1

ROD

park lock front operating, order rod, 390857R1, rod, 390858R1, nut, 20742R1, nut, 272120 & turnburckle, 390856R1, Farmall tractors up to serial no. 21638, International tractors up to serial no. 5237

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

1шт.

12

390858R1

ROD

park lock front operating, Farmall tractors with serial no. 21639 & above, International tractors with serial no. 5238 & above

1шт.

272120

CONNECTING LINK

7/16-14 hex. jam

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

1шт.

13

382847R1

TURNBUCKLE

park lock adjustment, Farmall tractors up to serial no. 21638, International tractors up to serial no. 5237

1шт.

13

390856R1

TURNBUCKLE

park lock adjustment, Farmall tractors with serial no. 21639 & above, International tractors with serial no. 5238 & above

1шт.

14

384263R1

ROD

park lock rear operating, order rod, 390857R1, rod, 390858R1, nut, 20742R1, nut, 272120 & turnbuckle, 390856R1, Farmall tractors up to serial no. 21638, International tractors up to serial no. 5237

1шт.

137265

NUT, 3/8-16 LH thd hex. jam

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

14

390857R1

ROD

park lock rear operating, Farmall tractors with serial no. 21639 & above, International tractors with serial no. 5238 & above

1шт.

19334R1

NUT,7/16"-20, G5, LH

7/16-14 LH thd hex.

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

15

385097R3

PAWL

neutral lock plate

1шт.

16

386127R11

LEVER

BELLCRANK ASSY, park lock over center actuating

1шт.

17

383153R2

BOLT

park lock bellcrank pivot

1шт.

18

208354R1

VALVE SPRING

SPRING, park lock actuating

1шт.

19

386129R11

PLATE ASSY.

PLATE ASSY, neutral lock

1шт.

188438

GROOVED PIN,1/4" x 1 1/2", Type F

Pin, Grooved, 1/4" x 1 1/2", Type F

1шт.

20

386134R11

ROD

ASSY, park lock actuating

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

21

213-316

ADJUSTABLE CLEVIS,3/8" - 24

CLEVIS, 3/8-24 x 2-3/16 short adj rod end

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

NLS

NO LONGER SERVICED

PIN, 3/8 x 1-3/32 rod end

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

22

386132R1

HANDLE

park lock

1шт.

23

386131R1

BRACKET, park lock handle

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8-16 x 1-3/8 hex-hd cap

1шт.
