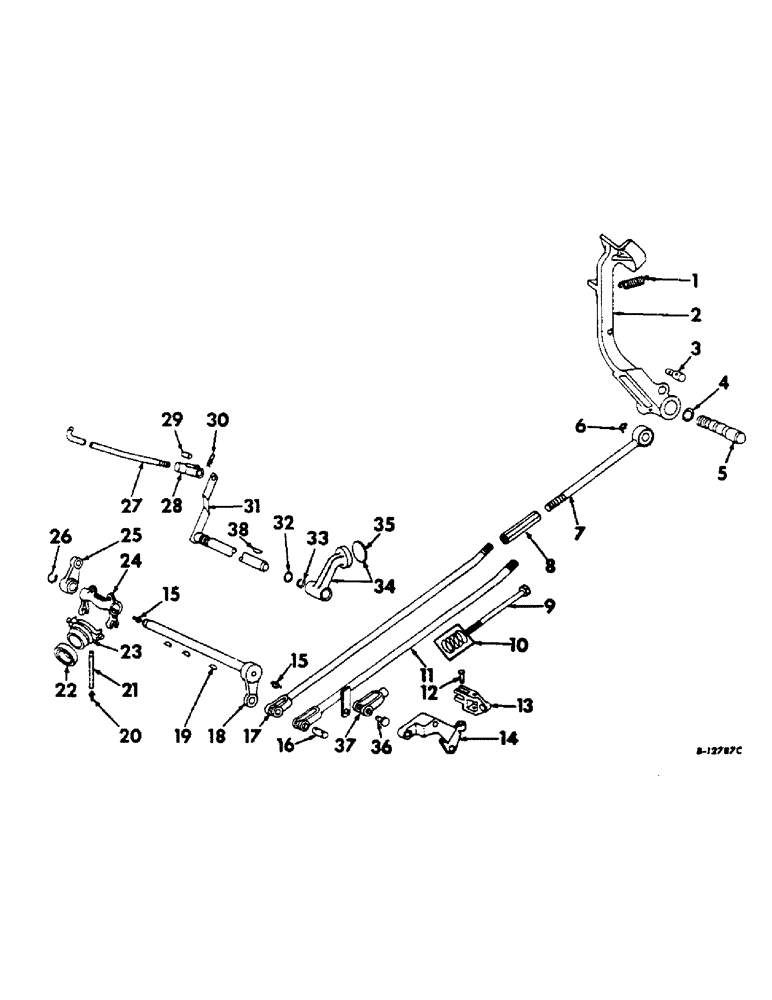

Запчасти Case IH 2806 (H-08) - CONTROLS, CLUTCH CONTROLS AND TRANSMISSION BRAKE Controls

1

626206R1

SPRING

clutch pedal return

1шт.

2

380176R1

PEDAL, clutch

1шт.

3

384047R1

BALL JOINT

PIN, clutch pedal pivot

1шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

4

298385R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

11/16 x 13/16 x 1/16 clutch pedal pivot shaft

1шт.

5

384014R1

SHAFT

clutch pedal, furnish shaft, 395249R1 & nut, 443329, Farmall tractor serial no. 24107 & below, International tractor serial no. 5911 & below

1шт.

386047R1

NUT, 5/8 hex. slotted

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

1шт.

364030R1

SPACER

clutch shaft

1шт.

Q3482

WASHER

1-5/32 x 1-3/4 x 11 ga

1шт.

5

395249R1

SHAFT

clutch pedal pivot, Farmall tractor serial no. 24108 & above, International tractor serial no. 5912 & above

1шт.

443329

NUT, 5/8-11 lock

1шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

1шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

1шт.

364030R1

SPACER

clutch shaft

1шт.

Q3482

WASHER

1-5/32 x 1-3/4 x 11 ga.

1шт.

6

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 65 deg angle drive type lub

1шт.

7

380178R11

ROD

ASSY, clutch operating rear

1шт.

114507

JAM NUT,Jam, 5/8"-11, G5

1шт.

8

384248R1

TURNBUCKLE

1шт.

9

385148R1

SCREW, 1/4-18 x 6-1/2 hex-hd cap, dump valve actuating, tractors with torque amplifier, Farmall tractors 501 to 19074, International tractors, Serial Range: 501-4892

1шт.

9

391946R1

BOLT,Hex, 1/4" - 28 x 5 1/2"

SCREW, 1/4-28 x 5-1/2 hex-hd cap, dump valve actuating, tractors with torque amlifier

1шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .065, Farmall tractors 19075 up, International tractors 4893 up

2шт.

10

385144R1

SPRING, clutch brake actuating, tractors with torque amplifier, Farmall tractors 501 to 19074, International tractors, Serial Range: 501-4892

1шт.

11

385142R91

ROD

ASSY, clutch operating front, tractors with torque amplifier

1шт.

12

382491R1

PIN

bellcrank pivot, tractors with torque amplifier

1шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 cotter

1шт.

3479

WASHER,7/32" x 9/16" x .060"

7/32 x 9/16 x 16 ga

2шт.

13

382490R1

LEVER

BELLCRANK, clutch brake, tractors with torque amplifier

1шт.

89375H

CLEVIS PIN

PIN, 1/4 x 1-19/32 rod end

1шт.

103361

PIN, SPLIT (COTTER)

PIN, 1/16 x 1/2 cotter

1шт.

14

382489R11

PIVOT ASSY.

PIVOT ASSY, valve operating, tractors with torque amplifier

1шт.

445572

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 8

SCREW, 5/16-18 x 2-3/4 hex-hd cap

1шт.

20330R1

BOLT,5/16" x 3 3/4", Gr 8

SCREW, 5/16-18 x 3-3/4 hex-hd cap

1шт.

15

109461

LUBE NIPPLE,1/8"-27 x .66 lg

FITTING, 1/4 drive type str lub

2шт.

16

382492R2

AXLE PIN,15.77mm OD x 35.56mm L

PIN, clutch rod clevis

1шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

17

383192R11

ROD

ASSY, clutch operating, front

1шт.

18266R1

NUT, 5/8-11 LH thd hex. jam

1шт.

18

380180R12

SHAFT

ASSY, clutch relesae, for service replacement of 380180R11 also order three keys, 120502

1шт.

19

126-122

WOODRUFF KEY,#13, 3/16" x 1", HT

KEY, 3/16 x 1 Woodruff 13, used with shaft, 380180R11

3шт.

19

120502

STOP

3/16 x 7/8 Woodruff 11

3шт.

20

Q3618

LUBE NIPPLE,5/16"-32 x .66 lg

FITTING, 5/16-32 nef str lub, clutch release sleeve

1шт.

21

365720R1

PIPE

clutch release sleeve grease

1шт.

22

365867R91

BALL BEARING

BEARING, clutch release ball

1шт.

23

380109R1

SLEEVE

clutch release

1шт.

24

380110R1

FORK

clutch release

1шт.

24

380110R1GV

CLUTCH

Value, Clutch Release

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8-16 x 1-1/4 hex-hd cap

2шт.

25

384306R1

LEVER

transmission brake operating

1шт.

26

384305R1

RING

clutch release shaft snap

1шт.

27

384307R1

ROD

transmission brake operating

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x 3/32

1шт.

28

213-318

CLEVIS

1/2-20 x 2-9/16 adj rod end transmission brake operating rod

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, 1/2-20 hex. jam

1шт.

29

384308R1

PIN

operating rod clevis

1шт.

30

460047R1

CLIP, SPRING

PIN, quick attachable cotter transmission brake operating rod

1шт.

31

384309R11

SHAFT

ASSY, transmission brake

1шт.

32

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32 transmission brake shaft

1шт.

33

384305R1

RING

transmission brake shaft snap

1шт.

34

384311R11

PEDAL

LEVER ASSY, transmission brake

1шт.

35

NSS

NOT SOLD SEPARAT

FACING, transmission brake lever, not serviced separately

1шт.

36

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN, 1/4 x 51/64 rod end, tractors with torque amplifier

1шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 cot.

1шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .065

1шт.

37

104036

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS, 1/4 rod end adj, tractors with torque amplifier

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4-28 hex. jam

1шт.

38

126-122

WOODRUFF KEY,#13, 3/16" x 1", HT

KEY, 3/16 x 1 Woodruff 13

1шт.
