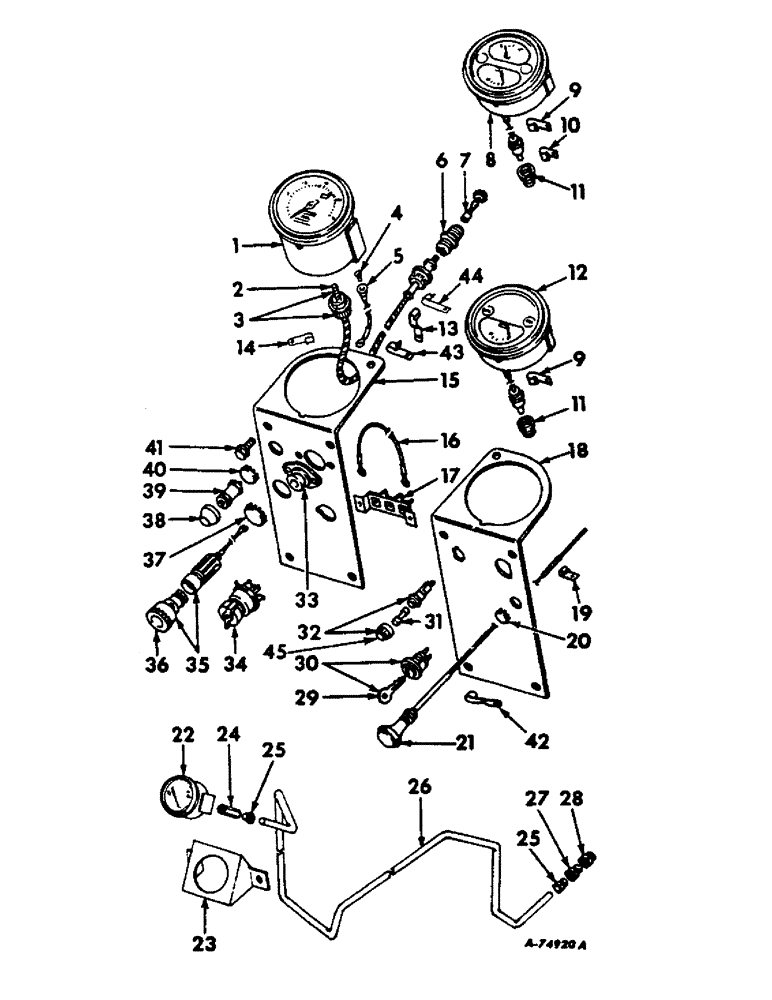

Запчасти Case IH 2806 (H-02) - CONTROLS, ENGINE CONTROLS AND INSTRUMENTS Controls

1

388589R91

TACHOMETER

SPEEDOMETER-TACHOMETER ASSY

1шт.

2

384844R91

CABLE

CORE ASSY, tachometer flexible drive shaft, used w/shaft, 384843R91, carbureted engine tractors

1шт.

2

393327R91

CABLE ASSY.

CORE ASSY, tachometer flexible drive shaft, used w/shaft, 393326R91, carbureted engine tractors

1шт.

2

384846R91

CORE ASSY, tachometer flexible drive shaft, 78 in. long, used only w/shaft, 384845R91, diesel engine tractors

1шт.

2

387916R91

CABLE ASSY.

CORE ASSY, tachometer flexible drive shaft, 80 in. long, used only w/shaft, 384845R92, diesel engine tractors

1шт.

2

393329R91

CORE

ASSY, tachometer flexible drive shaft, used w/shaft, 393328R91, diesel engine tractors

1шт.

3

384843R91

SHAFT

ASSY, tachometer flexible drive, order shaft assy, 393326R91, carbureted engine tractors

1шт.

3

393326R91

CABLE

SHAFT ASSY, tachometer flexible drive, polypropylene jacketed casing, carbureted engine tractors

1шт.

3

384845R92

SHAFT

ASSY, tachometr flexible drive, order shaft assy, 393328R91 diesel engine tractors

1шт.

3

393328R91

CABLE

SHAFT ASSY, tachometer flexible drive, polypropylene jacketed casing, diesel engine tractors

1шт.

4

9417863

BULB,C2F, #1895, 14V

LAMP, no. 1895 12 volt, tachometer

1шт.

4

9412348

BULB,C2B, #257, 14V

LAMP, no. 257 12 volt, oil & amp tellite flasher

2шт.

5

383620R91

ELECTRICAL WIRE

SOCKET ASSY, tachometer light

1шт.

6

368246R1

CONNECTION

HOUSING, tachometer connection, carbureted engine tractors

1шт.

7

368245R12

PINION

GEAR ASSY, tachometer drive, carbureted engine tractors

1шт.

8

397939R92

INDICATOR STRIP

CLUSTER ASSY, gauge, gasoline engine tractors (Replaces 382732R92)

1шт.

8

397939R92

INDICATOR STRIP

CLUSTER ASSY, gauge, diesel engine tractors (Replaces 396380R91)

1шт.

9

355574R1

CLIP

capillary tube

1шт.

10

351699R1

CLIP, capillary tube

1шт.

1797879

SCREW, 1/2-13 x 3/4 hex-hd cap

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

11

51510D

BUSHING

capillary tube bulb installation

1шт.

12

382734R93

GAUGE

CLUSTER ASSY, gauge, LP gas engine tractors

1шт.

13

370740R1

CLAMP

CLIP, tachometer flexible drive shaft, twisted, carbureted engine tractors, on rear tool box mounting bracket

1шт.

13

384558R1

CLIP

tachometer flexible drive shaft, short, diesel engine tractors, on clutch housing upper RH rear tapped hole

1шт.

179875

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5

SCREW, 1/2-13 x 1/2 hex-hd cap

1шт.

11002VA

WASHER

17/32 x 7/8 x 16 ga

1шт.

14

363812R1

CLIP, tachometer flexible drive shaft, on torque amplifier handle support bracket

1шт.

15

382724R91

PANEL

ASSY, instrument LH

1шт.

16

382676R91

CABLE

ASSY, horn switch to junction block

1шт.

17

378336R91

BLOCK

ASSY, junction

1шт.

109084

NUT,1/4"-20, G5

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

3шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

18

382726R91

PANEL ASSY, instrument RH

1шт.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, instrument panel mounting

10шт.

19

370740R1

CLAMP

CLIP, choke control, carbureted engine tractors

1шт.

20

383621R1

PLUG, choke control hole button, diesel engine tractors

1шт.

21

374219R92

CABLE

CONTROL ASSY, choke, gasoline engine tractors

1шт.

21

374218R92

CABLE

CONTROL ASSY, choke, LP gas engine tractors

1шт.

21

374281R92GV

CABLE

Value, Choke Cable

1шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

22

384203R91

GAUGE ASSY.

GAGE ASSY, fuel pressure, replaces 384204R91

1шт.

23

384207R1

HOUSING

fuel pressure gage, diesel engine tractors

1шт.

24

19715R1

HYD CONNECTOR,Fem, 5/16"-24

CONNECTOR, 1/8NPTF fem hi-duty tube fitting, diesel engine tractors

1шт.

25

222-500

TUBE NUT,5/16" - 24 NPT

NUT, hi-duty tube fitting, diesel engine tractors

2шт.

26

384206R1

PIPE, fuel pressure gage, diesel engine tractors

1шт.

27

59939D

HYD CONNECTOR,1/8" NPT x 5/16"-24

CONNECTOR, 1/8NPTF male hi-duty tube fitting, diesel engine tractors

1шт.

28

119930

BUSHING,1/4" NPT Male x 1/8" NPT Fem

1/4 x 1/8 reducing pipe, diesel engine tractors

1шт.

29

382458R2

KEY

switch

1шт.

30

403562R1

IGNITION SWITCH

SWITCH ASSY, key

1шт.

365502R1

NUT

switch mounting

1шт.

375431R1

LOCK WASHER

switch mounting nut

1шт.

31

117142

FUSE,10 Amp, Type 3AG

cartridge type AGC 10

1шт.

31

106653

FUSE

cartridge type AGC 20, tractors with cab

1шт.

32

376852R91

HOUSING

ASSY, fuse

1шт.

33

366317R93

SWITCH

ASSY, push button

1шт.

33

366317R93GV

CONTROL

Value, Control Switch

1шт.

120611

NUT,#10 - 32

10-32 C-Z SW

2шт.

132903

ADAPTER

SCREW, 10-32 x 7/16 C-Z slt-rd-hd mach

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

34

376851R91

LIGHT SWITCH

SWITCH ASSY, lighting

1шт.

35

382671R91

CIGAR LIGHTER

CIGARETTE LIGHTER PARTS ACCESSORY

1шт.

36

378781R91

PACKAGE

UNIT, pop-out

1шт.

37

432281

HOLE PLUG BUTTON,29/32"

PLUG, cigarette lighter hole button

1шт.

38

371487R1

CYLINDER END CAP

CAP, horn switch dust, gray

1шт.

39

373611R91

IGNITION SWITCH

SWITCH, horn, less cap

1шт.

40

374342R1

PLUG

horn switch

1шт.

41

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, instrument panel mounting

10шт.

42

370205R1

CLIP, choke cable rear, on battery tray RH front support, carbureted engine tractors

1шт.

43

361774R1

CLIP, tachometer flexible drive shaft, on LH gear selector support upper tapped hole, carbureted engine tractors

1шт.

44

349059R91

CLIP, tachometer flexible drive shaft, on oil cooler outlet elbow diesel engine tractors

1шт.

45

356445R91

KNOB

fuse housing

1шт.
