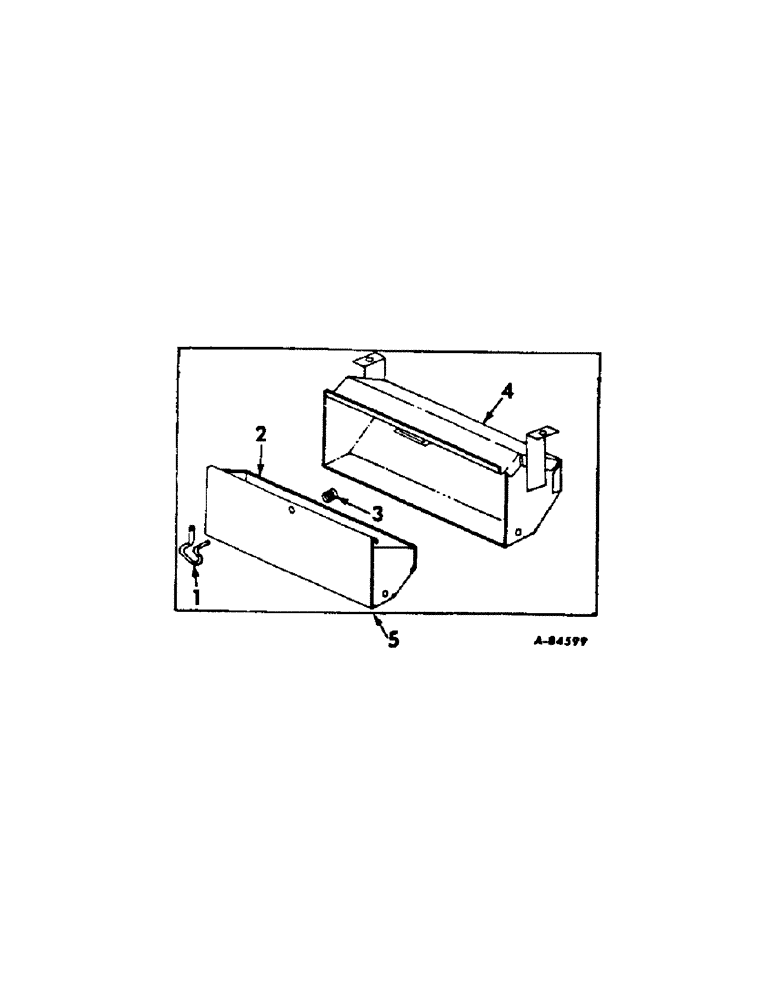

Запчасти Case IH 2806 (M-07) - SEAT, OPERATORS PLATFORM & MISCELLANEOUS, TOOL BOX, DIESEL ENGINE TRACTORS (10) - OPERATORS PLATFORM

1

383114R1

HANDLE

tool box

1шт.

114856

PIN, 3/64 x 1/2 cotter

1шт.

103338

WASHER,#10

7/32 x 1/2 x 16 ga

1шт.

2

383110R11

DRAWER ASSY, tool box

1шт.

133354

RIVET, 3/16 x 9/32 ov-hd tubular

2шт.

3

27452D

VALVE SPRING

SPRING, tool box handle

1шт.

4

383116R91

COVER ASSY, tool box

1шт.

5

383115R91

BOX

TOOL BOX ASSY

1шт.

W6075

SPACER, tool box mounting

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

2шт.
