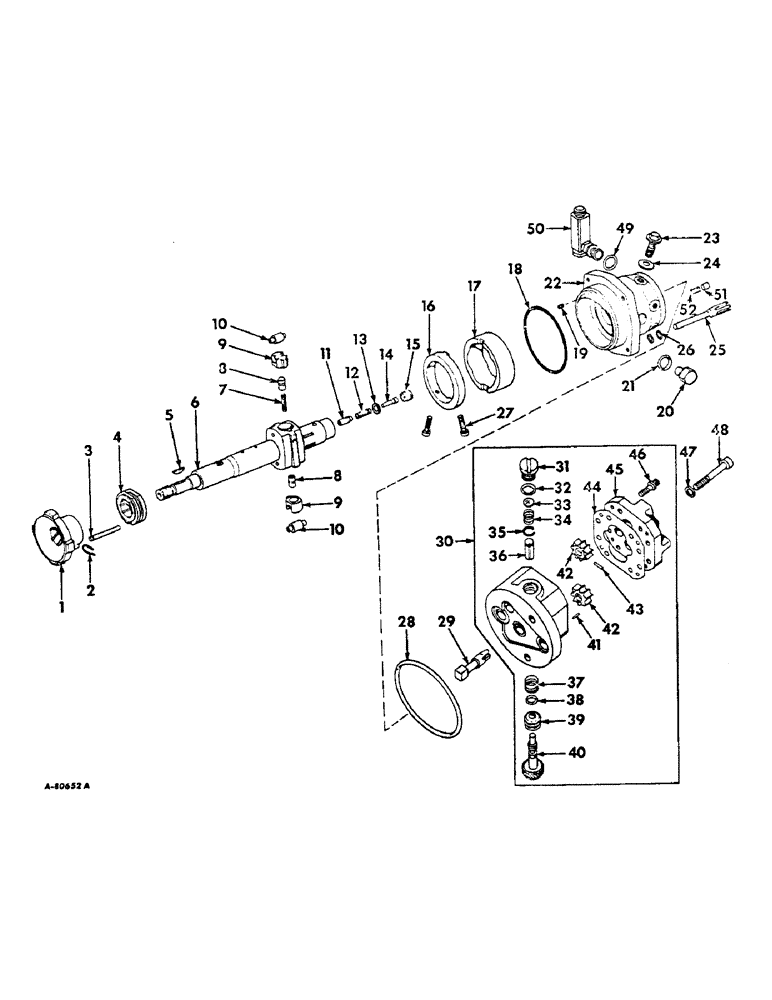

Запчасти Case IH 2806 (E-33) - FUEL SYSTEM, INTERNATIONAL R.D. FUEL INJECTION PUMP, MAIN SHAFT, PRIMARY PUMP AND CONNECTIONS (02) - FUEL SYSTEM

1

NSS

NOT SOLD SEPARAT

CUP, governor, order main shaft, 607231C11

1шт.

2

320068R1

RETAINER, governor cup pin

1шт.

3

320067R1

PIN, governor cup

1шт.

4

NSS

NOT SOLD SEPARAT

SLEEVE, timing, order main shaft, 607231C11

1шт.

5

124543

WOODRUFF KEY,#3, 1/8" x 1/2", HT

1шт.

6

607231C11

SHAFT ASSY, main

1шт.

For service replacement also order pin, 610324C1, two pins, 20796R1 and shaft, 607237C1, composed of (1) cup (NSS), (1) head (NSS), (2) o-ring 310136R1, (1) piston 607290C1, (2) plunger (NSS), (1) shaft (NSS), (1) sleeve (NSS), (1) spring 607291C1, (1) spring 607392C1, (1) valve 345213R91

1шт.

610324C1

PIN

governor shaft dowel, thru main shaft

1шт.

20796C1

PIN, 1/8 x 1/4 phosphate coated roll, pressed on ends of pin, 610324C1

2шт.

7

320069R1

SPRING, plunger, up to pump serial no. 4574

1шт.

7

607392C1

VALVE SPRING

SPRING, plunger, pump serial no. 4575 and above

1шт.

8

NSS

NOT SOLD SEPARAT

PLUNGER, order main shaft, 607231C11

2шт.

9

349326R11

LOCK VALVE

TAPPET ASSY

2шт.

10

310053R1

ROLLER, tappet

2шт.

11

349052R1

VALVE, retraction

1шт.

12

310058R1

SPRING, retraction valve

1шт.

13

310142R1

SEAL

valve retainer

1шт.

14

318333R1

STOP, retraction valve

1шт.

15

318349R1

SCREW, traction valve

1шт.

16

318332R1

RETAINER, cam

1шт.

17

345248R1

CAM

1шт.

18

310141R1

O-RING

distributor head

1шт.

19

318413R1

SCREW, distributor head bleed, up to pump serial no. 26863

1шт.

20

9410358

PLUG

distributor head

1шт.

21

303545R1

O-RING

distributor head plug

1шт.

22

NSS

NOT SOLD SEPARAT

HEAD, distributor, order main shaft, 607231C11

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

23

341193R1

CAPSCREW,5/16" x 1.33"

SCREW, fuel line connecting

6шт.

24

318335R1

GASKET

fuel line fitting

12шт.

25

345213R91

VALVE ASSY, fuel recirculation check, only serviceable item is o-ring, 345218R1

1шт.

26

310136R1

SEAL

O-RING, 1/4 x 3/8 x 1/16, recirculation valve

2шт.

27

20120R1

SCREW, cam retainer

2шт.

59624D

GASKET

cam retainer screw, up to pump serial no. 18051

2шт.

27

601206C91

BOLT

SEELBOLT, cam retainer, pump serial no. 18052 and above

2шт.

28

310067R1

GASKET

O-RING, primary pump

1шт.

29

310068R1

SHAFT

primary pump drive

1шт.

30

341336R91

PUMP ASSY, primary

1шт.

31

347531R1

CAP

1шт.

32

347532R1

GASKET

O-RING, cap

1шт.

33

347541R1

SHIM

.005

1шт.

33

347539R1

SHIM

.010

1шт.

33

347542R1

SHIM

.015

1шт.

33

347540R1

SHIM

.020

1шт.

34

347537R1

SPRING, relief valve

1шт.

35

268552R1

SNAP RING,#18, .145" Dia, E-Type

Ring, Retaining, , plunger #18, .145" Dia, E-Type

1шт.

36

347536R1

PLUNGER

1шт.

37

347538R1

SPRING, return

1шт.

38

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

1/4 x 3/8 x 1/16, stem

1шт.

39

347535R1

BOOT

rubber

1шт.

40

347534R1

STEM

1шт.

41

865298R1

NEEDLE BEARING CAGE

PIN, stem stop

1шт.

42

347529R91

GEAR W/PIN ASSY, can be used for either drive or driven gear

2шт.

43

865298R1

NEEDLE BEARING CAGE

PIN, shear

1шт.

44

347530R1

GASKET, plastic

1шт.

45

347528R1

CAP, end

1шт.

46

347533R91

SCREW, 1/4-20 x 3/4 twelve-pt cap

6шт.

47

59624D

GASKET

primary pump screw

2шт.

48

20098R1

SCREW, 1/4-28 x 1-7/8 hex-soc-hd cap, primary pump mounting

2шт.

49

303545R1

O-RING

strainer

1шт.

50

601769C92

STRAINER ASSY, inlet, composed of (1) body 601768C21, (1) gasket 67919D, (1) screen 67924D

1шт.

51

607290C1

PISTON ASSY.

PISTON, surge, also order spring, 607291C1

1шт.

52

607291C1

VALVE SPRING

SPRING, surge piston, also order piston, 607290C1

1шт.
