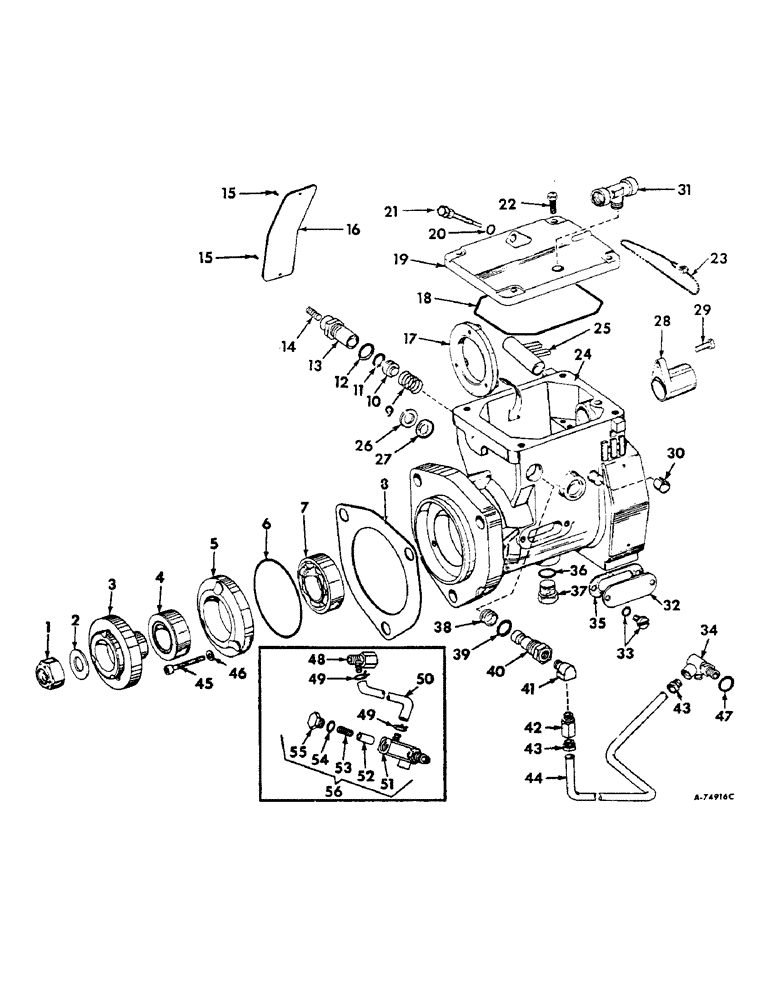

Запчасти Case IH 2806 (E-31) - FUEL SYSTEM, INTERNATIONAL R.D. FUEL INJECTION PUMP, PUMP HOUSING AND COVER (02) - FUEL SYSTEM

1

19899R1

NUT

gear hub lock

1шт.

2

345032R1

GASKET

gear hub

1шт.

3

341311R1

HUB, gear

1шт.

4

343715R91

SEAL

main shaft oil

1шт.

5

310130R2

PLATE, main shaft oil seal

1шт.

6

310140R1

GASKET,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

O-RING, main shaft oil seal plate

1шт.

7

ST681A

BEARING, main shaft front ball

1шт.

8

278347R1

GASKET

injection pump

1шт.

9

330452R1

SPRING, timing

1шт.

10

330450R1

SEAT, spring

1шт.

11

330453R1

O-RING

spring seat

1шт.

12

303545R1

O-RING

timing advance stop

1шт.

13

341313R11

STOP ASSY, timing advance

1шт.

14

20684R1

SCREW, no. 10-32 x 3/4 hex-soc-ov-pt set

1шт.

15

40329DA

RIVET

identification plate

2шт.

16

323745R1

PLATE, identification

1шт.

17

310131R1

RETAINER, main shaft front bearing

1шт.

18

310126R1

GASKET

pump housing top cover

1шт.

19

310074R1

COVER, pump housing top

1шт.

110488

SCREW, no. 10-24 x 5/8 slt-fil-hd mach

2шт.

20

321730R1

O-RING

SEAL, low idle screw

1шт.

21

349325R1

SCREW, low idle

1шт.

22

310125R1

SCREW

pump housing top cover seal

2шт.

23

279673R91

WASHER

WIRE, seal

1шт.

24

341327R11

HOUSING

ASSY, pump, order housing, 601452C11, two sealbolt, 601209C91 & three washer, 113934H, up to pump serial no. 20224

1шт.

24

601452C11

HOUSING ASSY, pump, composed or ref. nos. 26. 27, 36 & 37, pump serial no. 20225 and above

1шт.

25

330446R91

SLEEVE ASSY, timing advance

1шт.

26

312594R1

RETAINER

control shaft seal

2шт.

27

312593R1

SEAL

control shaft

2шт.

28

310129R1

COVER, torque adjusting screw

1шт.

29

310125R1

SCREW

torque adjusting cover

1шт.

30

310073R1

RING, stop screw contact

1шт.

31

346793R1

TEE, 1/4 pipe restricted

1шт.

32

349061R1

COVER, timing window

2шт.

33

349062R91

SCREW W/SEAL, timing window cover

4шт.

34

347007R91

ELBOW, pressure pipe

1шт.

35

310128R1

GASKET

timing window cover

2шт.

36

303545R1

O-RING

housing plug

1шт.

37

9410358

PLUG

pump housing

1шт.

38

337147R1

SPACER, timing sleeve, 1 deg

1шт.

38

337148R1

SPACER, timing sleeve, 2 deg

1шт.

39

303545R1

O-RING

pressure inlet fitting

1шт.

40

328823R11

FITTING ASSY, pressure inlet

1шт.

41

333819R1

ELBOW, street

1шт.

42

29901D

HYD CONNECTOR,1/8" NPT x 7/16"-24

CONNECTOR, 7/16-24 male hi-duty tube fitting

1шт.

43

19984R1

TUBE NUT,7/16"-24

NUT, 7/16-24 hi-duty tube fitting

2шт.

44

345307R1

PIPE, pressure

1шт.

45

147114

SCREW

no. 10-24 x 1-1/4 hex-soc-hd cap

3шт.

46

312589R1

SEAL, plate screw

3шт.

47

303545R1

O-RING

pressure pipe elbow

1шт.

48

607134C11

CONNECTOR, leak off hose, pump serial no. 14261 & below

1шт.

49

872436R1

HOSE CLAMP,#6, 3/8", Spring

CLAMP, hose, pump serial no. 14261 & below

2шт.

50

607135C1

HOSE, leak off, pump serial no. 14261 & below

1шт.

51

601822C11

BODY ASSY, surge piston, pump serial no. 14261 & below

1шт.

52

607290C1

PISTON ASSY.

PISTON, surge, .100 in. lift, pump serial no. 14261 & below

1шт.

53

607291C1

VALVE SPRING

SPRING, surge piston, pump serial no. 14261 & below

1шт.

54

303545R1

O-RING

surge piston body plug, pump serial no. 14261 & below

1шт.

55

601823C1

PLUG, surge piston body, pump serial no. 14261 & below

1шт.

56

601821C91

PISTON ASSY, surge, pump srial no. 14261 & below

1шт.

332374R92

SET

PACKAGE, injection pump o-ring and gasket

1шт.
