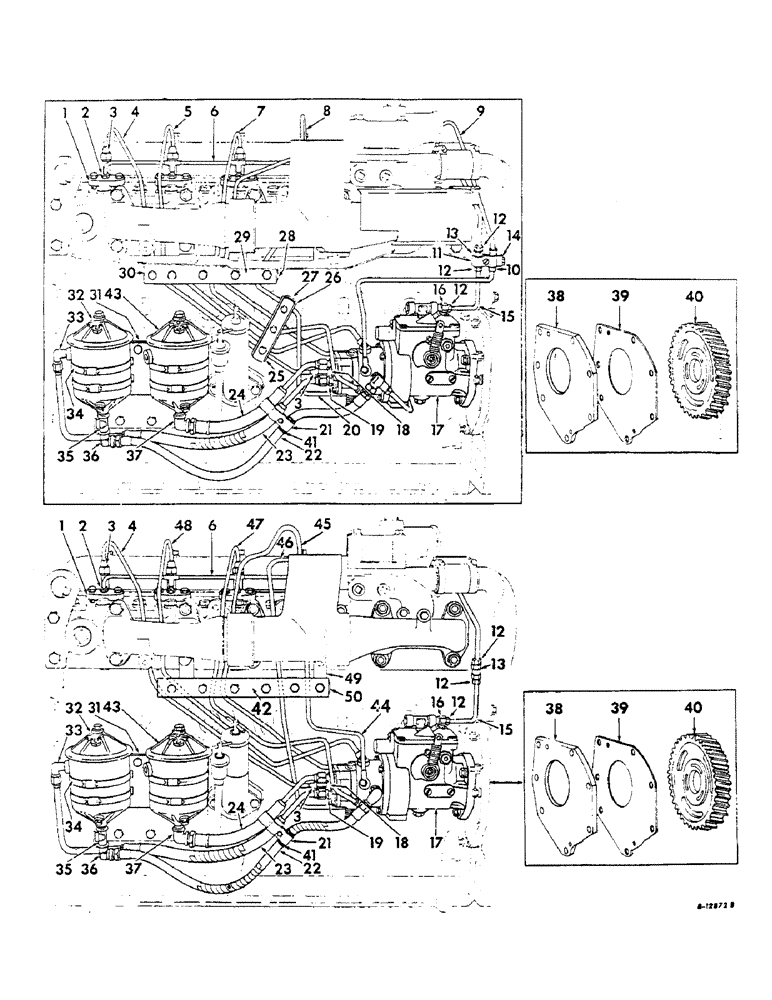

Запчасти Case IH 2806 (E-20) - FUEL SYSTEM, FUEL INJECTION PUMP, CONNECTIONS AND PIPES, ENGINE SERIAL NO. D-361 23978 AND BELOW (02) - FUEL SYSTEM

1

349406R91

NOZZLE AND HOLDER ASSY, injection, IH, order nozzle & holder assy 610718C91, for components see list of parts under details of nozzle & holder

6шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

SCREW, 3/8-16 x 1-5/8 hex-hd cap

12шт.

2

336980R1

NUT

SLEEVE, leakoff manifold

6шт.

3

250617R1

NUT

injection pipe

7шт.

250610R2

GUARD

SLEEVE, injection pipe

7шт.

4

349021R1

PIPE

injection no. 6

1шт.

5

349020R11

PIPE ASSY, injection no. 5, D-361, Serial Range: to1-12736

1шт.

6

349098R91

PIPE CLAMP

MANIFOLD ASSY, leakoff

1шт.

915500R1

SLEEVE

rubber

6шт.

7

349019R11

PIPE

ASSY, injection no. 4, D-361, Serial Range: 501-12736

1шт.

8

349018R11

PIPE ASSY, injection no. 3, D-361, Serial Range: 501-12736

1шт.

9

349016R11

PIPE

ASSY, injection no. 1, D-361, Serial Range: 501-12736

1шт.

10

341660R1

SLEEVE, injection pipe, D-361, Serial Range: 501-12736

1шт.

11

345423R1

CLIP, injection line & leakoff manifold, D-361, Serial Range: 501-12736

1шт.

109084

NUT,1/4"-20, G5

1шт.

179799

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

354260R1

SPACER,1/8" Pipe x 7/16"

clip

1шт.

12

19984R1

TUBE NUT,7/16"-24

NUT, 7/16-24 hi-duty tube fitting

3шт.

13

89863H

UNION, 7/16-24 hi-duty tube fitting

1шт.

14

349100R1

BRACKET

leakoff manifold, D-361, Serial Range: 501-12736

1шт.

262038R1

NUT

speed

1шт.

113959

SCREW,Sl Rnd Hd, 1/4" - 20 x 1"

1/4-20 x 1 rd-hd

1шт.

273623R1

BOLT

3/8-16 x 1-5/8 hex-hd

1шт.

115519

BALL BEARING

WASHER, 3/8 int-tooth lock

1шт.

15

349101R1

PIPE, leakoff return lower

1шт.

16

59730H

HYD CONNECTOR,1/4" NPT x 7/16"-24

CONNECTOR, 7/16-24 male hi-duty tube fitting

1шт.

17

339176R92

PUMP

ASSY, International R.D. injection, order conversion kit, 394970R91, for components see list of parts under details of International R.D. injection pump

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

113934H

WASHER

injection pump

3шт.

18

318374R1

FITTING, extended banjo

1шт.

19

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 37 deg flared tube short swivel, pump to filter hose

2шт.

20

349017R11

INJECTION PIPE

PIPE ASSY, injection no. 2, D-361, Serial Range: 501-12736

1шт.

21

349338R1

CLIP, fuel line hose

1шт.

349339R1

SPACER, fuel line hose

1шт.

262038R1

NUT

1/4-20 speed

1шт.

179800

BOLT,Hex, 1/4" - 20 x 1 3/8", Gr 5

1шт.

22

347267R92

HOSE,9.53mm ID x 584.2mm L

ASSY, filter to injection pump, 3/8 ID x 23 in. long

1шт.

23

347064R91

HOSE

AND TUBE ASSY, fuel supply, Serial Range: pump-filter

1шт.

24

347065R91

HOSE

AND TUBE ASSY, filter to supply pump

1шт.

25

278831R21

CLAMP W/THREE PINS, 19387R1 injection pipe, D-361, Serial Range: 501-12736

1шт.

181315

BOLT,Hex, 1/4" - 28 x 1", Gr 5

3шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x 16 ga

3шт.

26

278833R2

PAD

injection pipe clamp, D-361, Serial Range: 501-12736

2шт.

27

278832R1

CLAMP, injection pipe, tapped, D-361, Serial Range: 501-12736

1шт.

28

345371R2

PAD

injection pipe clamp, D-361, Serial Range: 501-12736

2шт.

29

349107R91

PACKAGE, injection pipe outer clamp service D-361 501 to 2851, consists of (1) clamp 345370R21, (2) pad 345371R2, (5) screw 181316, (5) washer 103339

1шт.

29

345370R21

CLAMP W/FIVE PINS, 19387R1 injection pipe outer, D-361, Serial Range: 2852-12736

1шт.

19387R1

PIN, 7/16 x 3/4 ESNA roll

5шт.

414-420

BOLT,Hex, 1/4" - 28 x 1-1/4", Gr 5

5шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x .065

5шт.

30

345368R91

CLAMP ASSY, injection pipe inner

1шт.

31

345293R1

BRACKET, fuel filter

1шт.

46806DA

SPACER

filter bracket

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

413-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

32

347066R91

HOSE ASSY.

FILTER ASSY, final fuel, for components see list of parts under details of fuel filter

1шт.

33

9402838

ELBOW

9/16-18 37 deg hyd flared tube 90 deg

1шт.

303545R1

O-RING

elbow

1шт.

34

274090R91

HOSE CLAMP,3.75/4.63 Type F Worm

CLAMP, filter

4шт.

35

444528

TEE

1/4-18 automotive pipe, int. int, int

1шт.

36

444480

ELBOW

1/4-18 90 deg automotive pipe street

1шт.

37

444068

ELBOW

1/4-18 90 deg automotive pipe

1шт.

38

328841R1

PLATE, injeciton pump mounting

1шт.

103026

NUT,3/8"-24, G5

2шт.

324235R1

12 PT SCREW,Flg, 3/8"-16 x 3/4"

SCREW, 3/8-16 x 3/4 twelve-pt cap

2шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8-16 x 2-3/4 hex-hd cap

1шт.

186310

SCREW

3/8-24 x 3-1/2 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

39

328842R1

GASKET

injection pump mounting plate

1шт.

40

328840R1

GEAR, injection pump drive

1шт.

425475

SCREW, w/ext tooth lock washer, 3/8-24 x 1-1/8 hex-hd mach

3шт.

337178R1

WASHER

gear

1шт.

41

601190C1

CUSHION, fuel line

1шт.

42

601245C11

PLATE ASSY.

CLAMP W/PINS, injection pipe, outer, D-361 12737 up

1шт.

414-420

BOLT,Hex, 1/4" - 28 x 1-1/4", Gr 5

SCREW, 1/4-28 x 1-1/4 hex-hd cap

6шт.

95-11028

WASHER,1/4"

9/32 x 5/8 x 16 ga

6шт.

43

610932C91

FILTER CARTRIDGE

FILTER ASSY, primary fuel, Purolator, will work for 601507C91, optional with 610933C91, for components see list of parts under details of fuel filter

1шт.

43

610933C91

FILTER

ASSY, primary fuel, Fram, optional with 610932C91, for components see list of parts under details of fuel filter

1шт.

44

601233C21

PIPE ASSY, injection no. 1, D-361 12737 up

1шт.

45

601235C11

PIPE

ASSY, injection no. 3, D-361 12737 up

1шт.

46

601234C21

PIPE ASSY, injection no. 2, D-361 12737 up

1шт.

47

601236C11

PIPE

ASSY, injection no. 4, D-361 12737 up

1шт.

48

601237C11

TUBE

PIPE ASSY, injection no. 5, D-361 12737 up

1шт.

49

601811C1

CLAMP

injection pipe, inner, D-361 12737 up

1шт.

50

601249C1

PLATE ASSY.

PAD, injection pipe clamp, D-361 12737 up

2шт.

394970R91

KIT

Roosa Master injection pump conversion service, for converting engines equipped w/international RD fuel injection pump to Roosa master fuel injection pump, see note

1шт.

119933

ADAPTER,3/8" NPT Male x 1/8" NPT Fem

1/8 pipe reducing BRS, Roosa Master injection pump conversion kit engine serial no. D-361 23978 & below

1шт.

606792C91

BUTTON

ASSY, thrust, Roosa Master injection pump conversion kit engine serial no. D-361 23978 & below

1шт.

137405

CONNECTOR, ELEC

CONNECTOR, 1/8-27 BRS inverted flared tube, Roosa Master injection pump conversion kit engine serial no. D-361 23978 & below

1шт.

341523R11

COVER

ASSY, injection pump, Roosa Master injection pump conversion kit engine serial no. D-361 23978 & below

1шт.

311979R1

SCREW

BOLT, w/nylock insert, cover, Roosa Master injection pump conversion kit engine serial no. D-361 23978 & below

4шт.

613519C91

DRIVE SPROCKET

DRIVE ASSY, injection pump, for components see list of parts under details of injection pump, Roosa Master injection pump conversion kit engine serial no. D-361 23978 & below

1шт.

102635

NUT,3/8"-16, G5

Drive, Roosa Master injection pump conversion kit engine S/N D-361 23978 & below 3/8"-16, G5

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap, Roosa Master injection pump conversion kit engine serial no. D-361 23978 & below

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Roosa Master injection pump conversion kit engine S/N D-361 23978 & below 3/8"

3шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065), Roosa Master injection pump conversion kit engine serial no. D-361 23978 & below 3/8"

3шт.

138542

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, , Roosa Master injection pump conversion kit engine S/N D-361 23978 & below Int Tooth, 3/8"

2шт.

193004

ELBOW

1/4-18 BRS 90 deg inverted flared tube, Roosa Master injection pump conversion kit engine serial no. D-361 23978 & below

1шт.

225810

ELBOW UNION

ELBOW, 7/16-24 90 deg inverted flared tube, Roosa Master injection pump conversion kit engine serial no. D-361 23978 & below

1шт.

444082

ELBOW

1/4-18 45 deg automotive pipe, primary & final filter outlet, Roosa Master injection pump conversion kit engine serial no. D-361 23978 & below

2шт.

9402838

ELBOW

9/16-18 37 deg hyd flared tube 90 deg, Roosa Master injection pump conversion kit engine serial no. D-361 23978 & below

2шт.

326582R1

GASKET

injection pump cover, Roosa Master injection pump conversion kit engine serial no. D-361 23978 & below

1шт.

347823R92

HOSE

ASSY, primary to final filter, Roosa Master injection pump conversion kit engine serial no. D-361 23978 & below

1шт.

610423C91

HOSE

- Filter to injection pump, Roosa Master injection pump conversion kit engine serial no. D-361 23978 & below

1шт.

392955R11

LEVER

ASSY, Governor control rod, Roosa Master injection pump conversion kit engine serial no. D-361 23978 & below

1шт.

564577R1

PIN, 5/32 x 3/4 coiled spring, Roosa Master injection pump conversion kit engine serial no. D-361 23978 & below

1шт.

601249C1

PLATE ASSY.

PAD, injection pipe clamp, Roosa Master injection pump conversion kit engine serial no. D-361 23978 & below

2шт.

PIPE ASSY, fuel retun, use 44 in. of 1/4 OD copper tubing from 50 ft roll marked, 995061R1 & two nuts, 137397, Roosa Master injection pump conversion kit engine serial no. D-361 23978 & below

1шт.

PIPE ASSY, fuel tank to fuel filter, use 22 inc. of 3/8 OD copper tubing from 50 ft roll marked, 995063R1 & two nuts 137399, Roosa Master injection pump conversion kit engine serial no. D-361 23978 & below

1шт.

609279C11

PIPE

ASSY, injection no. 1, Roosa Master injection pump conversion kit engine serial no. D-361 23978 & below

1шт.

609280C11

PIPE

ASSY, injection no. 2, Roosa Master injection pump conversion kit engine serial no. D-361 23978 & below

1шт.

609281C11

TUBE

ASSY, injection no. 3, Roosa Master injection pump conversion kit engine serial no. D-361 23978 & below

1шт.

609282C11

PIPE

ASSY, injection no. 4, Roosa Master injection pump conversion kit engine serial no. D-361 23978 & below

1шт.

6909283C11

PIPE ASSY, injection no. 5, Roosa Master injection pump conversion kit engine serial no. D-361 23978 & below

1шт.

609284C11

PIPE

ASSY, injection no. 6, Roosa Master injection pump conversion kit engine serial no. D-361 23978 & below

1шт.

610689C91

PUMP

ASSY, fuel injection, for components see list of parts under details of fuel injection pump, Roosa Master injection pump conversion kit engine serial no. D-361 23978 & below

1шт.

392956R1

ROD, Governor control front, Roosa Master injection pump conversion kit engine serial no. D-361 23978 & below

1шт.

425475

SCREW, w/lock washer, 3/8-16 x 1-1/8 hex-hd mach, injection pump gear, Roosa Master injection pump conversion kit engine serial no. D-361 23978 & below

3шт.

250610R2

GUARD

SLEEVE, injection pipe, Roosa Master injection pump conversion kit engine serial no. D-361 23978 & below

6шт.

250617R1

NUT

injecition pipe, Roosa Master injection pump conversion kit engine serial no. D-361 23978 & below

6шт.

603676C1

TEE

injection pump inlet, Roosa Master injection pump conversion kit engine serial no. D-361 23978 & below

1шт.

29901D

HYD CONNECTOR,1/8" NPT x 7/16"-24

CONNECTOR, 7/16-24 hi-duty tube fitting, Roosa Master injection pump conversion kit engine serial no. D-361 23978 & below

1шт.

349102R1

TUBE

leakoff return to pump, lower, Roosa Master injection pump conversion kit engine serial no. D-361 23978 & below

1шт.

19984R1

TUBE NUT,7/16"-24

NUT, 7/16-24 hi-duty tube fitting, Roosa Master injection pump conversion kit engine serial no. D-361 23978 & below

2шт.

390069R91

SHUT-OFF VALVE

VALVE ASSY, fuel tank shut-off, Roosa Master injection pump conversion kit engine serial no. D-361 23978 & below

1шт.
