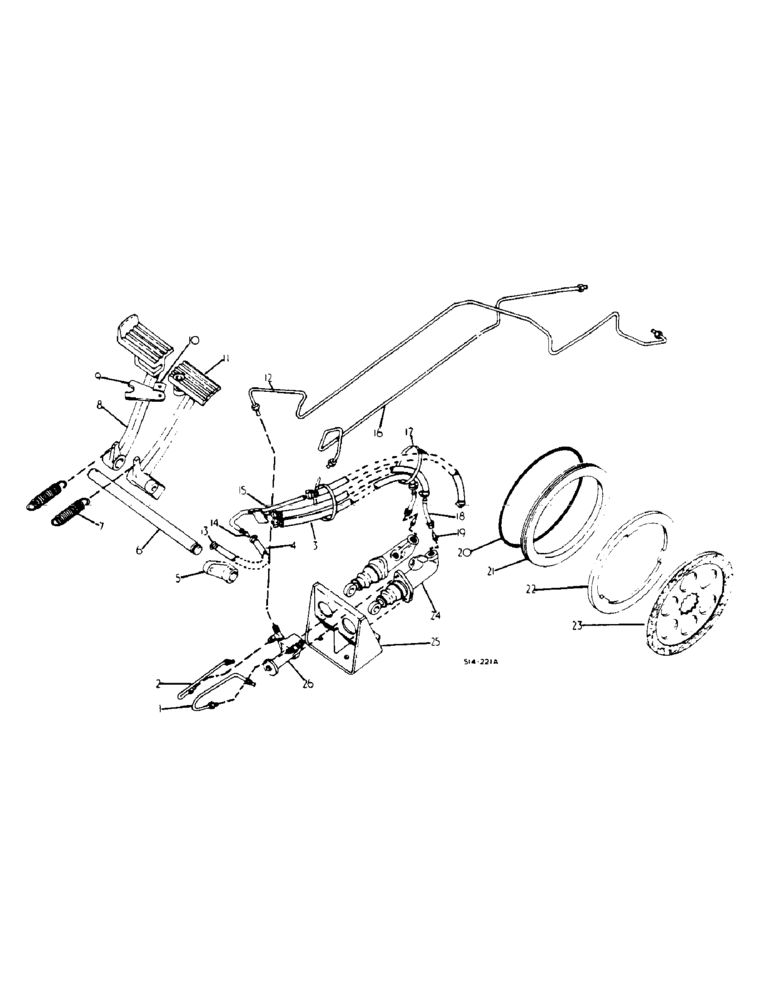

Запчасти Case IH 278 (04-002) - BRAKES, UP TO 278-541 (5.1) - BRAKES

1

530851R2

TUBE

EQUALIZER L.H.

1шт.

2

530852R1

TUBE

EQUALIZER R.H.

1шт.

3

66372C1

HYDRAULIC HOSE,0.31" ID x 25.00"

BRAKE RESERVOIR

3шт.

527433R1

CLIP

BRAKE RESERVOIR

1шт.

4

66368C1

FLEXIBLE HOSE

BRAKE RESERVOIR SUPPLY

1шт.

5

529858R1

ARM

SPARE PART R.H. BRAKE PEDAL, UP TO 4647

1шт.

5

3125228R1

ARM

BRAKE PEDAL R.H., 4648 UP

1шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

5/16" x 1 1/2", Coiled

1шт.

6

399740R1

SHAFT

PEDAL SUPPORT, UPTO 4647

1шт.

6

3125229R1

SHAFT

PEDAL SUPPORT, 4648 UP

1шт.

7

539556R1

SPRING

RETURN, UP TO 4647

2шт.

7

3125230R1

SPRING

RETURN, 4648 UP

2шт.

8

399741R4

PEDAL

R.H. BRAKE

1шт.

399744R1

BOLT

BOLT, BRAKE PEDAL ADJUSTING

1шт.

103026

NUT,3/8"-24, G5

1шт.

103321

LOCK WASHER,3/8"

1шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

5/16" x 1 3/4", Coiled

1шт.

9

43751DB

LATCH, PEDALS

PLATE, BRAKE LOCK

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

1/4-1-1/4 SMALL B HD SOLID

1шт.

10

51293D

SPRING

BRAKE PEDAL LOCK TENSION

1шт.

11

537095R11

PEDAL ASSY.

L.H. BRAKE, UP TO 4647

1шт.

11

3125226R91

PEDAL ASSY.

BRAKE L.H., 4648 UP

1шт.

399744R1

BOLT

BOLT, BRAKE PEDAL ADJUSTING

1шт.

103026

NUT,3/8"-24, G5

1шт.

103321

LOCK WASHER,3/8"

1шт.

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

1шт.

12

66093C1

BRAKE LINE

BRAKE L.H.

1шт.

13

3125239R1

COLLAR

WORM DRIVE HOSE

8шт.

14

537518R1

SCREEN

AND ORIFICE ASSY

1шт.

15

66369C1

TUBE ASSY.

BRAKE RESERVOIR SUPPLY

1шт.

172292

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

8-32 X 3/8 C-Z HD TAP

1шт.

16

66094C1

BRAKE LINE

BRAKE R.H.

1шт.

17

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP

1шт.

18

66367C1

TUBE ASSY.,0.31" OD, 2.5" Length

BRAKE CYL SUPPLY

2шт.

19

537849R2

SCREEN

AND ORIFICE ASSY, BRAKE RESERVOIR TUBE

2шт.

20

343932R1

O-RING,0.139" Thk x 9.984" ID, -274, Cl 6, 90 Duro

10 X 13-1/4 X 1/8, BRAKE PISTON

2шт.

21

114621C1

PISTON

BRAKE

2шт.

22

399736R2

RING

BRAKE

2шт.

23

114622C1

BRAKE DISC

BRAKE CENTRE

2шт.

24

527542R92

CYLINDER

ASSY, BRAKE MASTER

2шт.

24

527542R92GV

BRAKE CYLINDER

Value, Brake, Master Cylinder Assy.

2шт.

(P/N 527542R92) - Seal Kit for Brake Master 3125824R1

1шт.

71925C1

HOSE

SPARE PART MASTER BRAKE CYL RETAINING

1шт.

71926C1

BELLOWS

INSULATOR, MASTER BRAKE CYL DUST

1шт.

3125824R1

SEAL KIT

KIT, SEAL

1шт.

25

3116929R1

BRACKET

ASSY, BRAKE CYL MOUNTING, UP TO 4647

1шт.

25

3125224R1

BRACKET

ASSY, BRAKE CYLINDER MTG, 4648 UP

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

3шт.

181338

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5

4шт.

425-115

NUT,5/16"-24, G5

4шт.

103320

LOCK WASHER,5/16"

4шт.

26

530374R92

VALVE

ASSY, BRAKE EQUALIZER

1шт.

530373R1

WASHER

EQUALISING VALVE

1шт.

9411128

TEE,7/16"-20, 37 Degree x 7/16"-20, O-Ring Run

ADJ-STR THRO 90 DEG

2шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

2шт.

68434C3

SEAL PACKAGE

EQUALISED VALVE O-RING SERVICE

1шт.

539834R1

BUSHING,22.35mm ID x 25.47mm OD x 68.07mm L

USED TO MOUNT PEDAL TO SHAFT

1шт.
