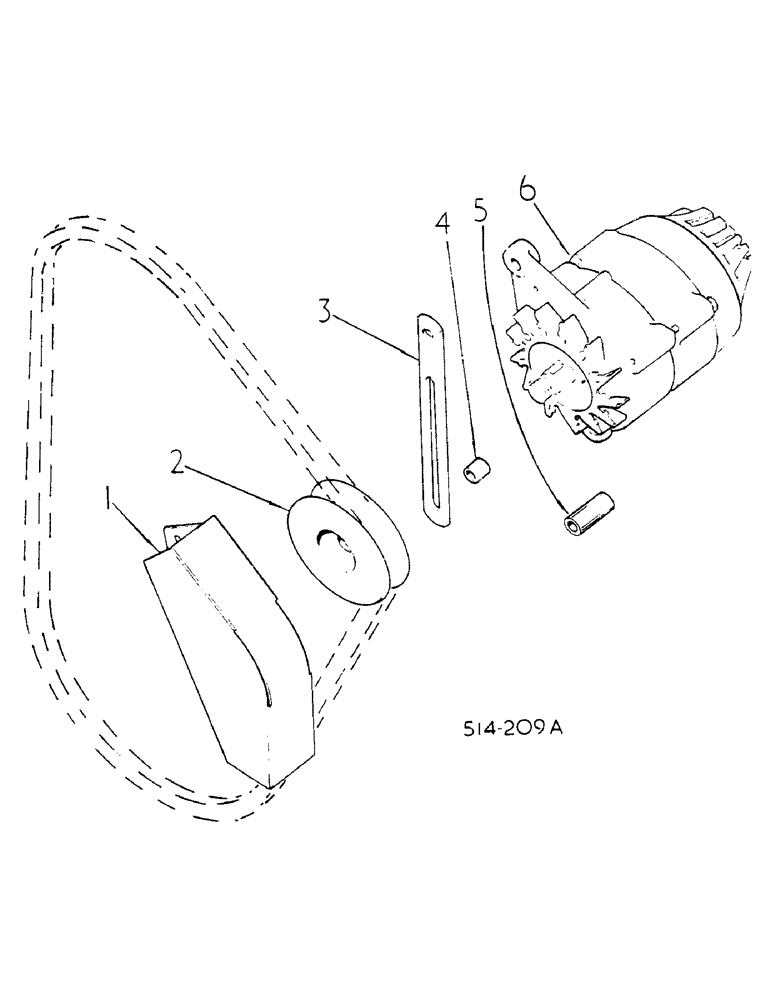

Запчасти Case IH 278 (08-009) - ALTERNATOR AND CONNECTIONS (06) - ELECTRICAL

1

3129852R2

SHIELD

ALTERNATOR

1шт.

2

3113672R1

PULLEY

ALTERNATOR

1шт.

3

3113336R1

BRACE

ALTERNATOR, LUCAS

1шт.

3

3129076R1

CLIP

BRACE, ALTERNATOR, AC DELCO ALTERNATORS

1шт.

930108R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

SCREW, M8 X 20 PLN MACH

1шт.

103320

LOCK WASHER,5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

11/32 X 11/16 X .065

1шт.

4

U13039

SPACER

ALTERNATOR BRACE

1шт.

4

190123

HOSE

SPACER, ALTERNATOR BRACE, OPTIONAL

1шт.

186273

BOLT,Hex, 5/16" - 18 x 4 1/4", Gr 5

Alternator Brace

1шт.

273888

SPRING

BOLT, ALTERNATOR BRACE, OPTIONAL

1шт.

186270

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

For use w/ spacer 894870H1

1шт.

5

3113678R1

SPACER

ALTERNATOR MOUNTING

1шт.

6

3129581R91

ALTERNATOR, LUCAS 18 ACR LESS FAN, LUCAS NO 23765

1шт.

3116095R1

BOLT

FIXING

3шт.

3116094R91

BRUSH HOLDER

HOLDER, BRUSH BOX ASSY, BRUSH

1шт.

3116089R91

BRACKET

ASSY

1шт.

3116092R1

BRACKET

S.R.E.

1шт.

3125297R1

CAPACITOR

1шт.

3116086R1

COVER

1шт.

231-1446

NUT,3/8" - 16, Gr 5

Diode Assy

1шт.

1502048C91

KIT, ALTERNATOR REPA

D/E BEARING

1шт.

1502049C91

KIT, ALTERNATOR REPA

S.R.E. BEARING

1шт.

3116090R91

KIT

SPARE PART SUNDRY PARTS

1шт.

3116088R1

RECTIFIER

1шт.

1502053C1

REGULATOR

1шт.

1502054C1

RING

SLIP

1шт.

3125133R91

ROTOR ASSY.

1шт.

7

1502051C1

SET

BRUSH

1шт.

1502050C1

STATOR

1шт.

7

1500560C91

ALTERNATOR, LUCAS 18 ACR W/FAN AND PULLEY

1шт.

7

1500541C91

ALTERNATOR

MOTOROLA W/PULLEY

1шт.

7

NS

NOT SERVICED

ALTERATOR, LUCAS 18 ACR W/FAN, LUCAS NO 54021461

1шт.

1502055C1

FAN

1шт.

3116087R2

REGULATOR

1шт.

3125134R1

STATOR

SPARE PART

1шт.

413-576

BOLT,Hex, 5/16" - 18 x 4-3/4", Gr 5

5/16 X 4-3/4 HEX HEAD

1шт.

80681

LOCK WASHER,5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

11/32 X 11/16 X .065

1шт.
