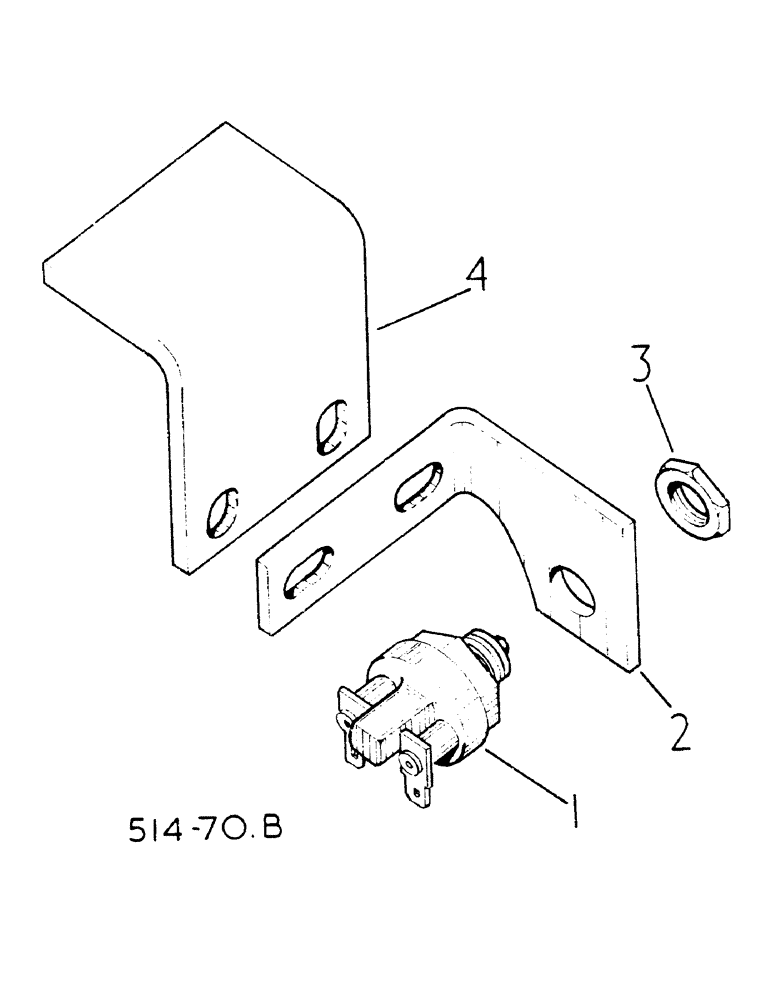

Запчасти Case IH 278 (08-004) - NEUTRAL SAFETY SWITCH, UP TO 785/12441, UP TO 278/800 (06) - ELECTRICAL

1

3072122R93

SWITCH

NEUTRAL SAFETY

1шт.

2

531203R2

BRACKET

ASSY, SAFETY SWITCH MOUNTING

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

103321

LOCK WASHER,3/8"

2шт.

95-11041

WASHER,3/8"

2шт.

3

3112570R1

NUT

SAFETY SWITCH

1шт.

4

3121286R1

ANGLE

CLUTCH, MACHINES FITTED W/CAB

1шт.

3125981R91

HARNESS

ASSY, MAIN CABLE, 10040 UP, 278548 UP, SERVICE PARTS ARE

1шт.

3115813R1

FUSE

35 AMP

3шт.

3121403R1

FUSE

35 AMP, OPTIONAL

3шт.

3118918R1

FUSE

10 AMP

2шт.

142630

FUSE

10 AMP, OPTIONAL

2шт.

3123157R1

COVER

LID, FUSE BOX

1шт.

3123158R1

PACKAGE

ALTERNATOR PLUG CONNECTIONS

1шт.

3123724R1

SLEEVE

1шт.

3129948R1

BOX, FUSE

PACKAGE

1шт.

3123110R91

HARNESS

ASSY, MAIN CABLE, UP TO 784/10039 278/547, SERVICE PARTS ARE

1шт.

3115813R1

FUSE

35 AMP

3шт.

3121403R1

FUSE

35 AMP, OPTIONAL

3шт.

3118918R1

FUSE

10 AMP

2шт.

NLS

NO LONGER SERVICED

10 AMP, OPTIONAL

2шт.

3123157R1

COVER

LID, FUSE BOX

1шт.

3123158R1

PACKAGE

ALTERNATOR PLUG CONNECTIONS, OPTIONAL

1шт.

3123724R1

SLEEVE

1шт.

3129948R1

BOX, FUSE

PACKAGE

1шт.

3125768R1

HARNESS

ASSY, MAIN

1шт.

3125769R1

HARNESS

ASSY, FRONT, SUPER DE-LUXE CAB

1шт.

3123138R3

HARNESS

CAB LIGHTING, UP TO 784/10284 - 278/559

1шт.

3125877R1

HARNESS

CAB LIGHTING, 784/10285, 278/560 UP

1шт.

3123139R2

CABLE

CAB HARNESS TO SIDE LIGHTS FLYING LEAD

1шт.

528301R1

CABLE ASSY.

BATT. TO STARTER

1шт.

3123190R2

CABLE ASSY.

FLEXIBLE EARTH LEAD

1шт.

705896R1

CONNECTOR, ELEC

CONNECTOR TACHO

1шт.

705897R1

CONNECTOR, ELEC

CONNECTOR SPEEDO

1шт.

539015R1

CLIP

STEERING SUPPORT L.H. TOP

1шт.

153515R1

CLIP

MAIN HARNESS TO INST. SHROUD

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

2шт.

120392

WASHER,1/4", SAE

2шт.

3116240R1

CLIP

BATTERY CABLE

1шт.

450643

SCREW,Hex Hd, #8-32 x 3/8"

1шт.

225-10108

NUT,#8-32

1шт.

492-11008

LOCK WASHER,#8

1шт.

3123109R1

CABLE CLIP

TEMP. SENDER

1шт.

100770H

CLIP

GRILLE SHROUD L.H.

1шт.

3113490R1

CLIP

STEERING SUPPORT L.H. CHANNEL

1шт.

537025R1

CLIP

HARNESS TO BATTERY SUPPORT

1шт.

316433C1

CLAMP

CLIP, MAIN HARNESS

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

103320

LOCK WASHER,5/16"

1шт.

316433C1

CLAMP

CLIP, MAIN HARNESS

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

1шт.

537025R1

CLIP

SAFETY START CABLE TO BATT TRAY

1шт.

3113490R1

CLIP

HARNESS TO MASTER CYL. BRACKET

1шт.

366460R1

CABLE CLIP

FRONT COVER R.H REAR

1шт.

537025R1

CLIP

STEERING SUPPORT R.H. TOP

1шт.

100770H

CLIP

INJECTION PUMP COVER

2шт.

3123195R1

CLAMP

CLIP, CABLE CAB REAR FRAME

3шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

NO 10-24 X 1/2 TAPTITE HEX WASHER HD

3шт.

1502019C1

SCREW,Hex Random Sl, #10 - 24 x 1/2"

10-24 X 1/2 HEX (RANDOM SLTD) OPTIONAL

3шт.

3123195R1

CLAMP

CLIP, CABLE LEFT HAND TOP FRAME

3шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

NO 10-24 X 1/2 TAPTITE HEX WASHER HD

3шт.

1502019C1

SCREW,Hex Random Sl, #10 - 24 x 1/2"

10-24 X 1/2 HEX (RANDOM SLTD) OPTIONAL, 784/10285 UP, 278/560 UP

3шт.

3123195R1

CLAMP

CLIP, CABLE WINDSCREEN TOP FRAME

3шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

NO 10-24 X 1/2 TAPTITE HEX WASHER HD

3шт.

1502019C1

SCREW,Hex Random Sl, #10 - 24 x 1/2"

10-24 X 1/2 HEX (RANDOM SLTD) OPTIONAL

3шт.

3123195R1

CLAMP

CLIP, CABLE - REAR TOP FRAME

2шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

NO. 10-24 X 1/2 TAPTITE HEX WASHER HD

2шт.

1502019C1

SCREW,Hex Random Sl, #10 - 24 x 1/2"

10-24 X 1/2 HEX (RANDOM SLTD) OPTIONAL, 784/10285 UP, 278/560 UP

2шт.

3123193R1

TAPE

SPARE PART HOSE, CABLE BINDING, BULK LENGTH 15.24 METERS

1шт.

3123158R1

PACKAGE

ALTERNATOR SOCKET

1шт.

705548R1

GROMMET

WINDSCREEN TOP FILLET

2шт.

3118661R1

GROMMET

WINDSCREEN CORNER FILLET

2шт.

3112438R1

GROMMET

LIGHT TUBE SUPPORT

2шт.

537504R1

CABLE ASSY.

STRAP ASSY, BATT TO EARTH

1шт.

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP BATTERY

2шт.

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP HARNESS TO FUEL LINE

2шт.

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP HARNESS TO FUEL PIPE

2шт.

3113490R1

CLIP

STEERING SUPPORT CHANNEL TOP

1шт.

3123431R1

CABLE

TACHO TO FUEL GAUGE EARTH, FLYING LEAD

1шт.

225-14112

NUT,#12-24

1шт.

160221

SCREW,Cross Pan Hd, #12 - 24 x 1/2"

1шт.

492-11012

LOCK WASHER,#12

For use w/earth harness on machines not fitted w/flasher unit

1шт.

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP USE W/IPTO CROSSOVER TUBE

1шт.
