Запчасти Case IH 278 (13-092) - CAB INSULATORS, DE-LUXE CAB (05) - SUPERSTRUCTURE

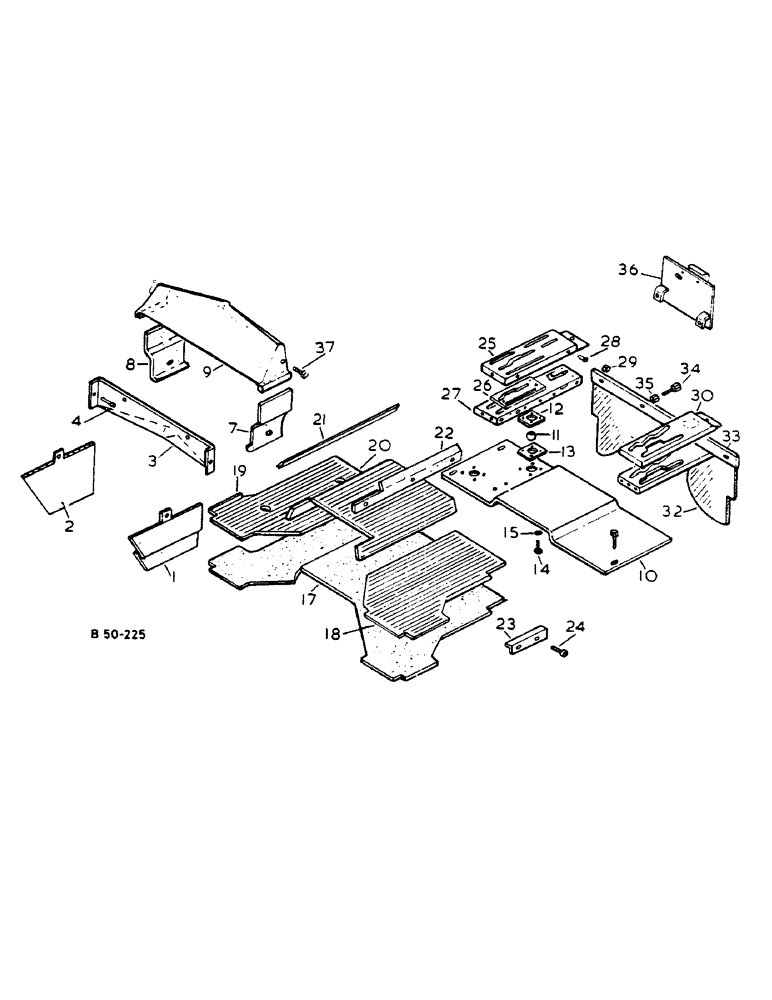

Схема запчастей Case IH 278 - (13-092) - CAB INSULATORS, DE-LUXE CAB (05) - SUPERSTRUCTURE
18
37
35
19
13
8
14
34
9
22
2
33
23
25
30
4
28
3
7
1
32
15
27
29
26
20
21
17
24
12
11
10
36

Артикул

Название

Примечание

Количество

1

3125676R1

PLATE

COVER L.H.

1шт.

2

3125677R1

PLATE

SPARE PART COVER R.H.

1шт.

3

3125410R1

PLATE

FRONT

1шт.

4

3125373R1

SCREW

M5 X 12 SELF-TAPPING

4шт.

5

3125678R1

PANEL

SPARE PART TOP FIREWALL

1шт.

6

3125679R1

PANEL

BOTTOM FIREWALL

1шт.

7

3125680R1

PLATE

SPARE PART INST. PANEL COVER L.H.

1шт.

8

3125681R1

PLATE

SPARE PART INST. PANEL COVER R.H.

1шт.

9

3125682R1

PLATE

SPARE PART INST. PANEL FRONT COVER

1шт.

10

3125683R1

PLATFORM

SPARE PART

1шт.

11

3125517R1

BALL

1шт.

12

3125519R1

SOCKET/RECEPTACLE

BALL

1шт.

13

3125518R1

SOCKET/RECEPTACLE

BALL

1шт.

14

3125520R1

SCREW

M5 X 12 SELF-TAPPING

4шт.

15

934490R1

LOCK WASHER,Ext Tooth, M5

TOOTHED

4шт.

16

3125367R1

SCREW

M8 X 15 SELF-TAPPING

4шт.

17

3125684R1

INSULATOR

FLOOR

1шт.

18

3125685R1

MAT

RUBBER L.H.

1шт.

19

3125686R1

MAT

RUBBER R.H.

1шт.

20

3125687R1

MAT

SPARE PART TRANSMISSION HOUSING

1шт.

21

3125689R1

STRIP

RUBBER MAT COVER R.H.

1шт.

22

3125688R1

STRIP

RUBBER MAT COVER L.H.

1шт.

23

3125690R1

STRIP

RUBBER MAT COVER

2шт.

24

3125691R1

SCREW

SPARE PART 5/8 NO.8 SELF-TAPPING

4шт.

25

3125692R1

SECTOR

SPARE PART LIFT, STANDARD

1шт.

25

3125693R1

SECTOR

SPARE PART LIFT, 4-WHEEL DRIVE

1шт.

26

3125694R1

PLATE

SPARE PART REINFORCING

1шт.

27

3125695R1

INSULATOR

FOAM

1шт.

28

3125696R1

RIVET

SPARE PART 3 X 12 TUBULAR

4шт.

29

3125380R1

COVER

TUBULAR RIVET

4шт.

30

3125697R1

SECTOR

GEAR

1шт.

30

3125665R1

SECTOR

SPARE PART HYDRO

1шт.

31

3125698R1

PLATE

SPARE PART REINFORCING

1шт.

32

3125699R1

PLATE

COVER REAR

1шт.

33

3125700R1

PLATE

SPARE PART CLAMP

1шт.

34

3125701R1

BOLT

M5

4шт.

35

934871R1

NUT,M5, Cl 5

M5

4шт.

36

3125702R1

PLATE

SPARE PART NUMBER

1шт.

37

3125703R1

SCREW

M5 X 18 FINGER

2шт.

PLATFORM ASSY, R.H., NOT ILLUSTRATED

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

Not Illustrated

2шт.

103323

LOCK WASHER,1/2"

Not Illustrated

2шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Not Illustrated

1шт.

103321

LOCK WASHER,3/8"

Not Illustrated

1шт.

PLATFORM ASSY, L.H., NOT ILLUSTRATED

1шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Not Illustrated

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

Not Illustrated

1шт.

103323

LOCK WASHER,1/2"

Not Illustrated

2шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Not Illustrated

1шт.

103321

LOCK WASHER,3/8"

Not Illustrated

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8-16 X 3/4 SHORT SQ., NOT ILLUSTRATED

2шт.

103321

LOCK WASHER,3/8"

Not Illustrated

2шт.

102635

NUT,3/8"-16, G5

Not Illustrated

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .051), Not Illustrated

2шт.

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

1/4-20 X 5/8 C-Z SLT PAN HD MACHINE, NOT ILLUSTRATED

2шт.

492-11025

LOCK WASHER,1/4"

Not Illustrated

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

Not Illustrated

2шт.

528909R1

SPACER

L.H. PLATFORM, NOT ILLUSTRATED

1шт.

Выбрано товаров: 58
