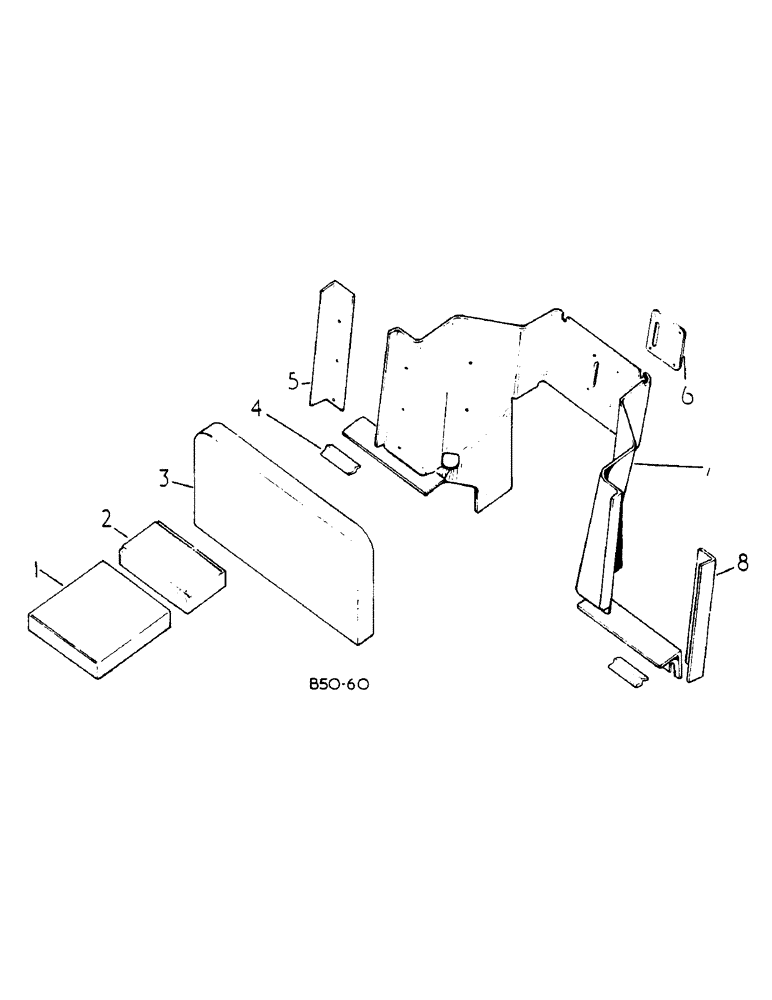

Запчасти Case IH 278 (13-053) - INSULATORS, SAFETY CAB (05) - SUPERSTRUCTURE

1

NOT APPLICABLE

1шт.

2

NOT APPLICABLE

1шт.

3

3118459R1

INSULATOR

BATTERY TRAY

1шт.

4

3118842R1

PLATE

SPARE PART RETAINING

2шт.

5

3123074R1

RETAINER

INSULATOR SIDE R.H.

1шт.

6

3116845R1

PLATE

SPARE PART ESCUTCHEON, UP TO 785/12358

1шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

10-24 X 1/2 HEX (RANDOM SLTD)

4шт.

1502019C1

SCREW,Hex Random Sl, #10 - 24 x 1/2"

10-24 X 1/2 HEX (RANDOM SLTD) OPTIONAL, UP TO 785/12358

4шт.

7

3123072R4

INSULATOR

STEERING SUPPORT

1шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

10-24 X 1/2 HEX HD CAP

2шт.

1502019C1

SCREW,Hex Random Sl, #10 - 24 x 1/2"

10-24 X 1/2 HEX (RANDOM SLTD) OPTIONAL

2шт.

30481R1

WASHER,M5 x 10 x 1

5.5 ID X 10.0 OD X 1 MM PLN

2шт.

7

3123088R3

INSULATOR

STEERING SUPPORT, SEKURA ROOF HEATER

1шт.

167214

CHAIN

SCREW, 12-24 X 3/8 ZND TAP

4шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

1/4-20 X 3/4 HEX HD TAP

4шт.

8

3123073R1

RETAINER

SPARE PART INSULATOR SIDE L.H.

1шт.
