Запчасти Case IH 278 (13-051) - CAB INSULATION (05) - SUPERSTRUCTURE

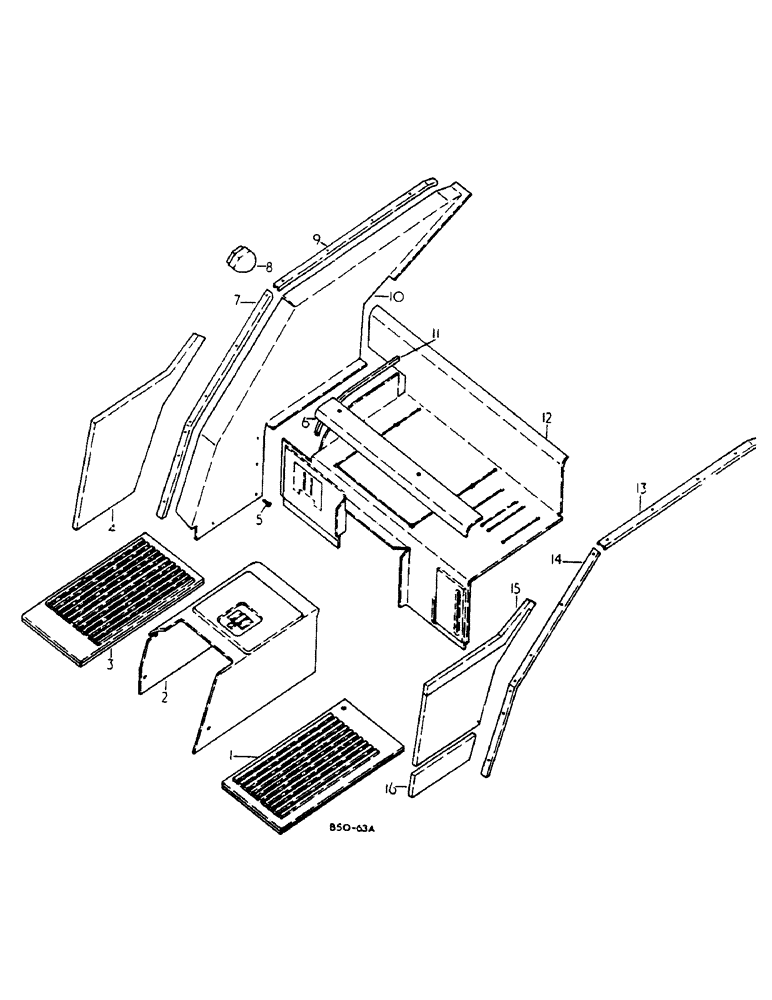

Схема запчастей Case IH 278 - (13-051) - CAB INSULATION (05) - SUPERSTRUCTURE
5
15
3
1
14
6
16
10
7
8
9
4
11
2
12
13

Артикул

Название

Примечание

Количество

1

3116832R1

INSULATOR

CPTE, FLOOR L.H.

1шт.

2

3116843R1

INSULATOR

CPTE, TUNNEL

1шт.

22470R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

1/4-20 X 3/4 HEX HD CAP

2шт.

120392

WASHER,1/4", SAE

.281 ID X .625 OD X .051 PLN

2шт.

3

3123069R2

INSULATOR

CPTE. FLOOR R.H.

1шт.

4

3123079R1

INSULATOR

DOOR R.H.

1шт.

5

3118451R1

CLIP,ELECTRICAL

STUD, FENDER TRIM RETAINER

18шт.

6

3116885R1

RETAINER

SPARE PART SEAT DECK INSULATOR, FRONT, 784

1шт.

6

3129275R1

RETAINER

SEAT DECK INSULATOR, FRONT, 785

1шт.

7

3118454R2

RETAINER

FENDER FRONT INSULATOR

1шт.

24613R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 3/4"

7шт.

8

3121165R1

PLUG

FENDER TRIM

2шт.

9

3118452R3

RETAINER

FENDER TOP INSULATOR

1шт.

24613R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 3/4"

4шт.

10

3118450R1

INSULATOR

FENDER TRIM RH, ILLUSTRATED

1шт.

10

3118449R1

INSULATOR

FENDER TRIM LH, 784

1шт.

10

3129279R1

INSULATOR

FENDER TRIM LH, 785

1шт.

11

MOULDING, INSULATION, 448 MM

1шт.

11

3118676R1

GASKET

MOULDING, INSULATOR, BULK LENGTH 150 FEET

2шт.

12

3116871R1

INSULATOR

CPTE, SEAT PLATFORM, 784

1шт.

12

3129280R1

INSULATOR

CPTE, SEAT PLATFORM, 785

1шт.

13

3118452R3

RETAINER

FENDER TOP INSULATOR

1шт.

24613R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 3/4"

4шт.

14

3118454R2

RETAINER

FENDER FRONT INSULATOR

1шт.

24613R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 3/4"

7шт.

15

3123078R1

INSULATOR

DOOR, L.H.

1шт.

16

3118457R1

INSULATOR

DOOR LOWER PANEL, L.H.

1шт.

Выбрано товаров: 27
