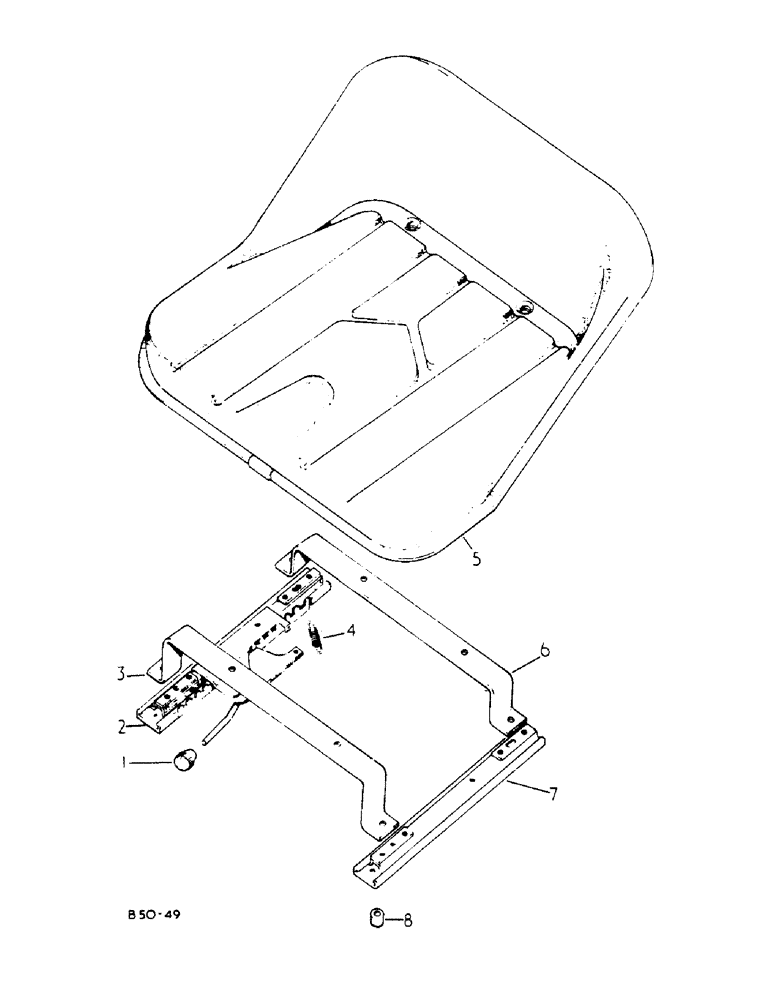

Запчасти Case IH 278 (13-032) - SEAT (05) - SUPERSTRUCTURE

3121641R91

SEAT ASSY.

1шт.

160722

SCREW,Cross Pan Hd, 5/16" - 18 x 1 1/4"

4шт.

138538

LOCK WASHER

5/16 CZ INT TOOTH

4шт.

1

538693R1

BUTTON

KNOB

1шт.

2

825199C91

SLIDE

RAIL, R.H. W/ADJUSTER

1шт.

3

3121642R1

SUPPORT

BRACKET, FRONT MOUNTING

1шт.

4

538694R1

SPRING

1шт.

5

538026R1

SEAT ASSY.

PAN

1шт.

6

3121643R1

SUPPORT

BRACKET, REAR MOUNTING

1шт.

7

825198C1

RAIL

SLIDE L.H.

1шт.

8

3064188R1

SPACER

SEAT

4шт.

160688

SCREW,Cross Pan Hd, 5/16" - 18 x 3/4"

12шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

Use for mounting brackets and slides

8шт.
