(6-58) - STARTER MOTOR AND CRANKCASE COLD STARTING ATTACHMENT

Запчасти Case IH 276 (6-58) - STARTER MOTOR AND CRANKCASE COLD STARTING ATTACHMENT (04) - ELECTRICAL SYSTEMS

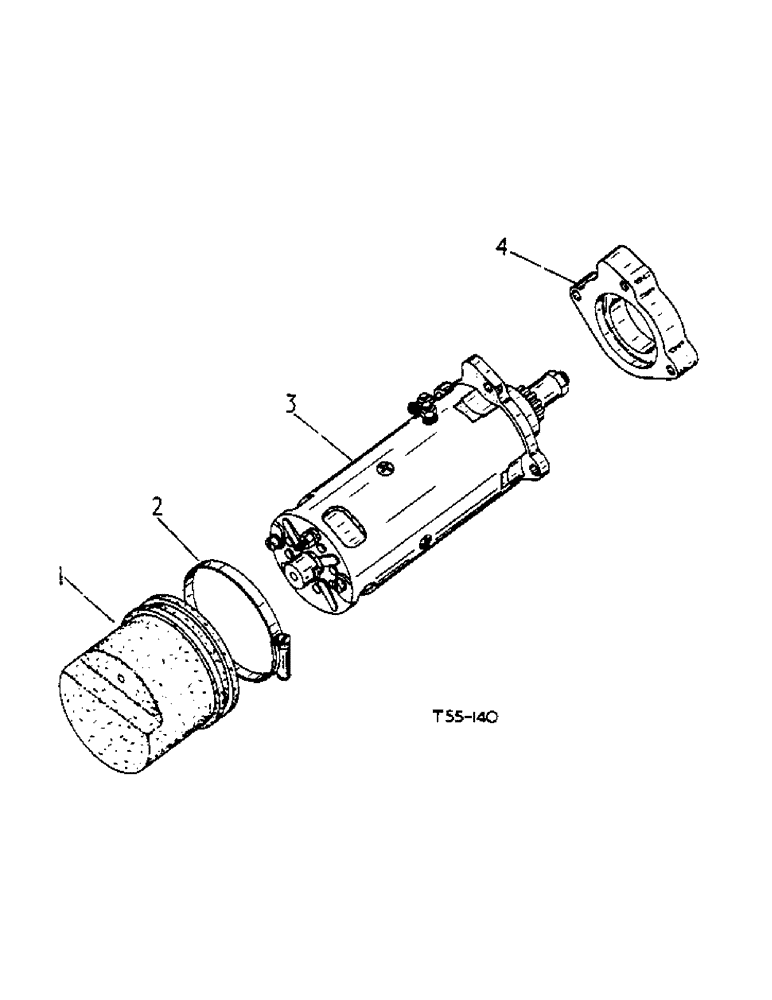

Схема запчастей Case IH 276 - (6-58) - STARTER MOTOR AND CRANKCASE COLD STARTING ATTACHMENT (04) - ELECTRICAL SYSTEMS
4
1
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

3064053R2

SLEEVE

SHEATH, protective

1шт.

2

708404R91

CLIP

jubilee, 5"

1шт.

3

3066553R91

STARTER MOTOR

MOTOR, cpte., starter(12 volt) (see detail list)

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

3066554R1

SPACER

starter motor

1шт.

3066563R91

CRANKCASE

cpte., (service only)

1шт.
