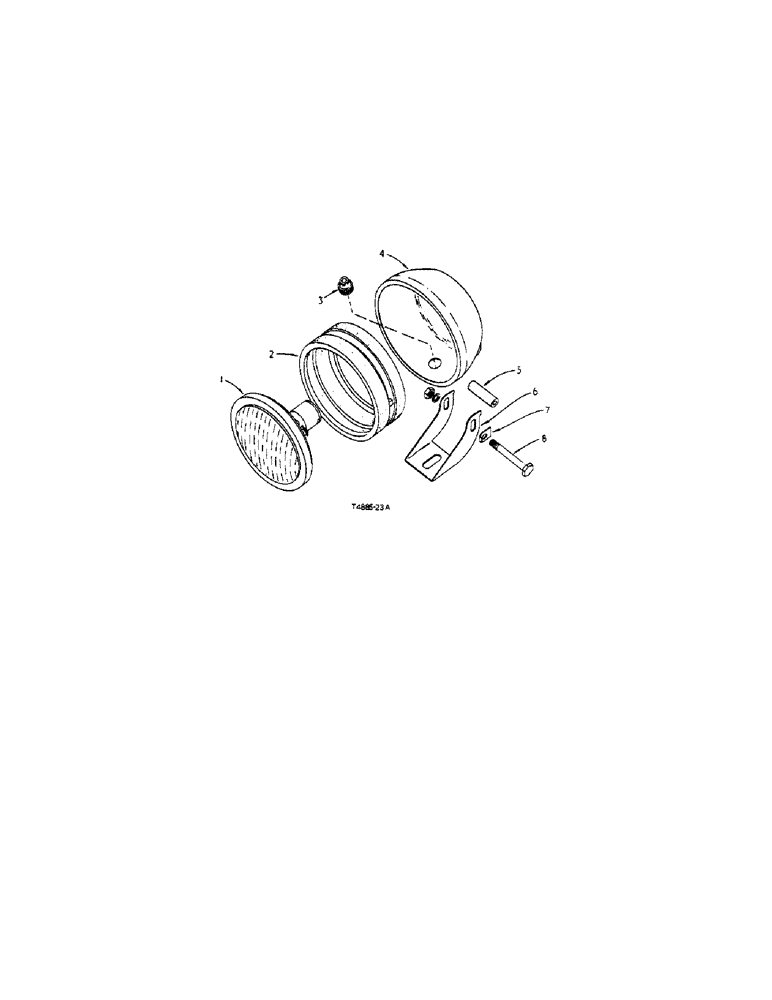

Запчасти Case IH 276 (3-22) - HEADLAMP ASSEMBLY (04) - ELECTRICAL SYSTEMS

3072562R91

HEADLIGHT

HEADLAMP, assy. (opt.)

2шт.

3070494R91

HEADLAMP

assy. (opt.), comprising

2шт.

1

3072947R91

HEADLIGHT

LIGHT, assy., sealed beam, pre-focus unit (12V - 40W) 2 Filament 3 Contact

1шт.

2

3071439R1

MOUNT, light unit

1шт.

3

3071444R1

GROMMET

1шт.

4

3071438R91

BODY, assy.

1шт.

3071449R1

BODY

1шт.

3071450R1

PEDESTAL

1шт.

5

3071442R1

SPACER

1шт.

6

3071441R1

BRACKET, mtg.

1шт.

7

3071443R1

RETAINER, bolt

1шт.

8

3071445R1

BOLT, pivot

1шт.

3071446R1

NUT

1шт.

3071447R1

WASHER, plain

1шт.

3071448R1

WASHER, shakeproof

1шт.

3071440R91

CABLE, assy.

1шт.

3064391R1

WASHER, cable retaining

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex-hd., 3/8" x 1" (Diesel)

2шт.

120377

NUT,3/8" - 16, Gr 5

(Diesel) 3/8"-16, G5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, (Diesel) 3/8"

2шт.

3070499R1

WASHER

(Diesel)

2шт.

120394

WASHER,3/8", SAE

WASHER (Diesel)

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Petrol) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

120377

NUT,3/8" - 16, Gr 5

(Petrol) 3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (Petrol) 3/8"

2шт.
