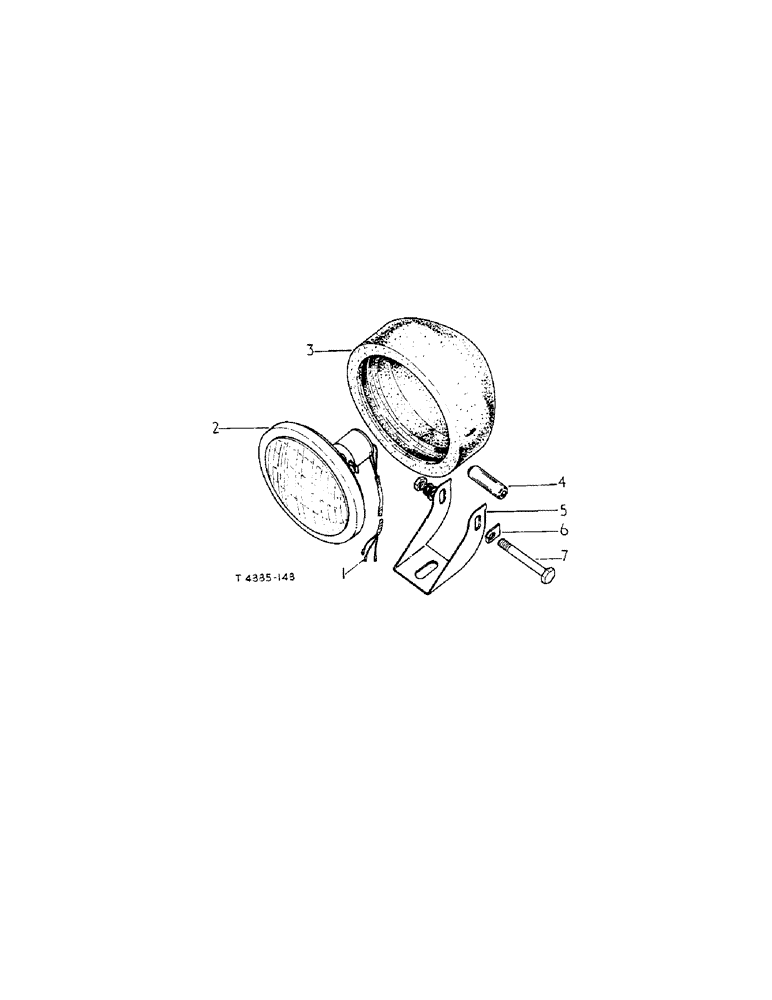

Запчасти Case IH 276 (3-22[1]) - HEADLAMP ASSEMBLY (04) - ELECTRICAL SYSTEMS

ref

Part No.

English

1шт.

3072562R91

HEADLIGHT

HEADLAMP, assy., comprising

2шт.

1

3072949R91

HARNESS, cpte., w/Connector

1шт.

2

3072947R91

HEADLIGHT

UNIT, sealed beam

1шт.

3

3072943R1

SHROUD

rubber

1шт.

4

3072946R1

TUBE

support

1шт.

5

3072944R1

BRACKET

1шт.

6

3072945R1

WASHER

tab

1шт.

7

181579

SCREW,Hex, 1/4" - 28 x 2", Gr 5

BOLT, hex-hd., 1/4" UNF x 2"

1шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

hex., 1/4" UNF

1шт.

16559R1

WASHER,1/4"

17/64" x 5/8" x .03

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.
