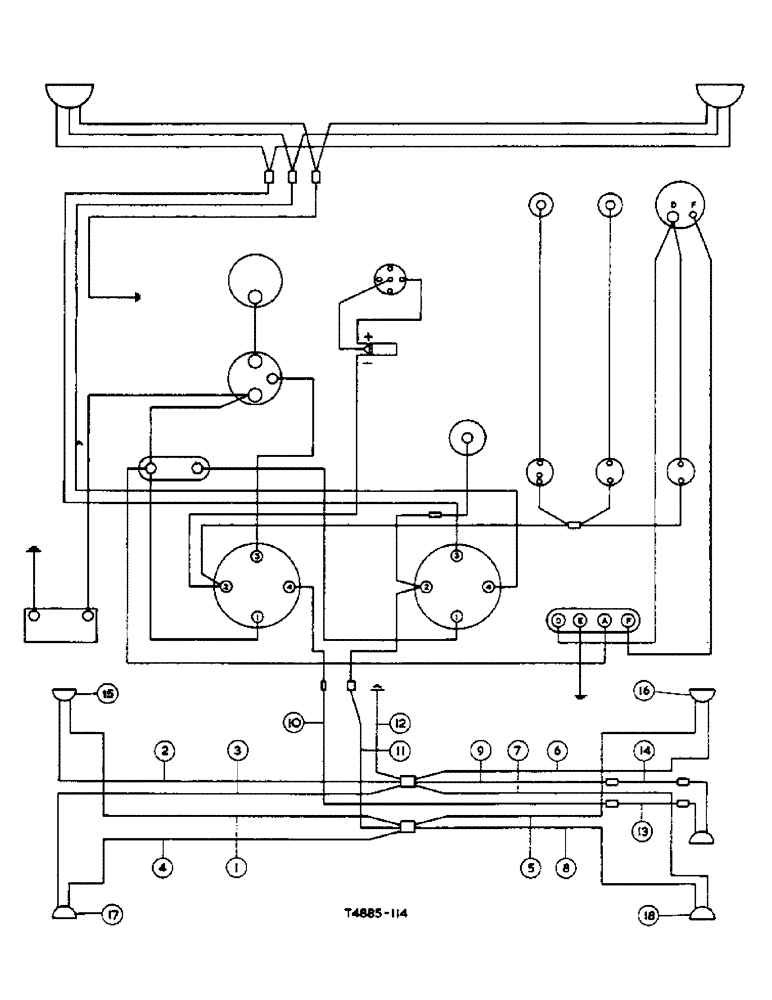

Запчасти Case IH 276 (3-20) - R.T.A. LIGHTING ATTACHMENT, PETROL (04) - ELECTRICAL SYSTEMS

3072036R91

ATTACHMENT, road traffic act,strial

1шт.

3071676R91

HARNESS, side and rear lamp,nn. too

1шт.

1

CABLE, rear lights feed conn. too

1шт.

2

CABLE, rear lights reath, Start Serial: conn.

1шт.

3

CABLE, rear lights earth, Start Serial: conn.

1шт.

4

CABLE, rear lights feed conn. too

1шт.

5

CABLE, rear light feed conn. to.o

1шт.

6

CABLE, rear light to earth conn.o

1шт.

7

CABLE, rear lights earth, Start Serial: conn.

1шт.

8

CABLE, rear lights feed conn. too

1шт.

9

CABLE, rear lights earth, Start Serial: conn.

1шт.

10

CABLE, rear conn. to plough lampo

1шт.

11

CABLE, rear conn. to rear lightto

1шт.

12

CABLE, rear lights earth, Start Serial: conn.

1шт.

3072035R91

CABLE, assy., plough, Serial Range: lamp-mainin

1шт.

13

CABLE, plough lamp, Serial Range: conn..-main

1шт.

14

CABLE, plough lamp, Serial Range: conn.-mainH

1шт.

15

LAMP, L.H. side (12V 6W)

1шт.

See Lamp, side and rear RTA Lighting Attachment

1шт.

16

LAMP, RH side (12V 6W)

1шт.

See Lamp, side and rear RTA Lighting Attachment

1шт.

17

LAMP, LH rear (12V 6W)

1шт.

See Lamp, side and rear RTA Lighting Attachment

1шт.

18

LAMP, RH rear (12V 6W)

1шт.

See Lamp, side and rear RTA Lighting Attachment

1шт.

BRACKET, rear lamps

1шт.

See Lamp, side and rear RTA Lighting Attachment

1шт.

BRACKET, reflector support

2шт.

See Lamp, side and rear RTA Lighting Attachment

1шт.

BRACKET, side lamps

2шт.

See Lamp, side and rear RTA Lighting Attachment

1шт.

708113R1

CLIP

cable

1шт.

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

hex-hd., 1/4" x 7/8"

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

112734

GROMMET, 3/8" (fender cable entry) 3/8" ID x 11/16" x .062"

6шт.

REFLECTOR, rear (red)

2шт.

See Lamp, side and rear RTA Lighting Attachment

1шт.
