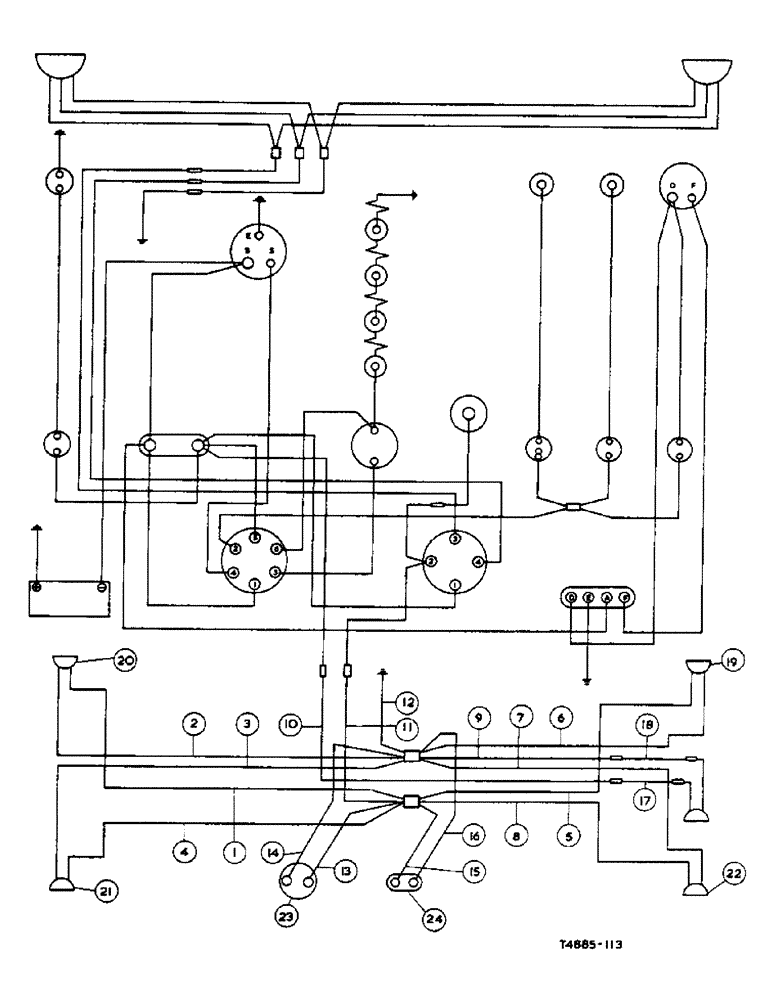

Запчасти Case IH 276 (3-18) - R.T.A. LIGHTING ATTACHMENT, DIESEL (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
3072034R91
ATTACHMENT, road traffic actstrialH
1шт.
3071676R91
HARNESS, side and tail, Serial Range: lamp,.-LH
1шт.
1
CABLE, rear L/Ts feed, Serial Range: conn.-LH
1шт.
2
CABLE, rear L/Ts feed earth conn.
1шт.
3
CABLE, rear L/Ts earth conn. toLH
1шт.
4
CABLE, rear L/Ts feed, Serial Range: conn.-LH
1шт.
5
CABLE, rear L/Ts feed, Serial Range: conn.-RH
1шт.
6
CABLE, rear L/Ts earth conn. tooH
1шт.
7
CABLE, rear L/Ts earth conn. toH
1шт.
8
CABLE, rear L/Ts feed, Serial Range: conn.-RH
1шт.
9
CABLE, rear L/Ts earth conn. topr
1шт.
10
CABLE, rear conn. to plough lampr
1шт.
11
CABLE, rear conn. to rear L/Tsorr
1шт.
12
CABLE, rear L/Ts earth conn. torr
1шт.
13
CABLE, reg. plate, Serial Range: conn.-powerr
1шт.
14
CABLE, reg. plate, Serial Range: conn.-powerr
1шт.
15
CABLE, reg. plate, Serial Range: conn.-number
1шт.
16
CABLE, reg. plate, Serial Range: conn.-reg.nr
1шт.
3072035R91
CABLE, assy., plough, Serial Range: lamp-mainnr
1шт.
17
CABLE, plough lamp, Serial Range: conn.-mainr
1шт.
18
CABLE, plough lamp, Serial Range: conn.-mainr
1шт.
19
LAMP, side L.H. (12V 6W)
1шт.
See Lamp, side and rear RTA Lighting Attachment
1шт.
20
LAMP, side RH (12V 6W)
1шт.
See Lamp, side and rear RTA Lighting Attachment
1шт.
21
LAMP, rear LH (12V 6W)
1шт.
See Lamp, side and rear RTA Lighting Attachment
1шт.
22
LAMP, rear RH (12V 6W)
1шт.
See Lamp, side and rear RTA Lighting Attachment
1шт.
23
SOCKET, power w/Cable
1шт.
24
LIGHT, reg. number plate
1шт.
BRACKET, rear lamp
2шт.
See Lamp, side and rear RTA Lighting Attachment
1шт.
BRACKET, reflector support
2шт.
See Lamp, side and rear RTA Lighting Attachment
1шт.
BRACKET, reg. number plate lamp
1шт.
See Lamp, side and rear RTA Lighting Attachment
1шт.
BRACKET, side lamps
1шт.
See Lamp, side and rear RTA Lighting Attachment
1шт.
708113R1
CLIP
cable
1шт.
NLS
NO LONGER SERVICED
hex., 1/4" x 7/8"
1шт.
109084
NUT,1/4"-20, G5
1шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
112734
GROMMET, 3/8" (fender cable entry) 3/8" ID x 11/16" x .062"
6шт.
REFLECTOR, rear (red)
2шт.
See Lamp, side and rear RTA Lighting Attachment
1шт.
Выбрано товаров: 46
