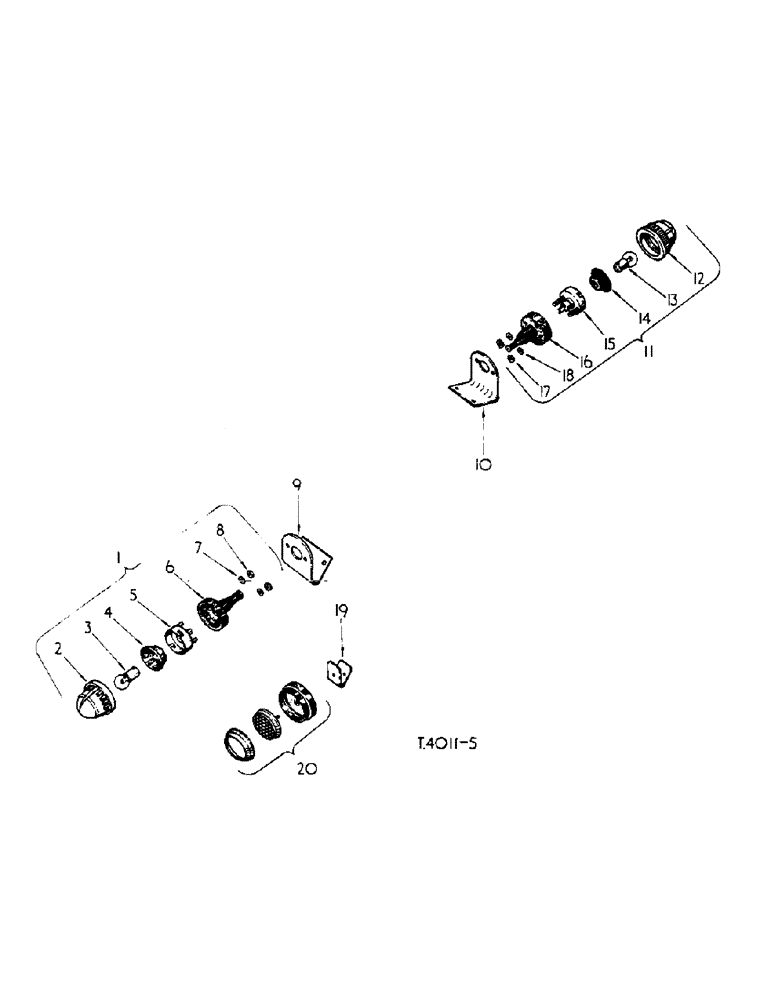

Запчасти Case IH 276 (3-17) - LAMPS, SIDE AND REAR, R.T.A. LIGHTING ATTACHMENT, WITH REAR INDUSTRIAL FENDERS (04) - ELECTRICAL SYSTEMS

1

3042099R91

INTERIOR LIGHT

LAMP, rear (12V 6W), comprising

2шт.

2

3062087R1

LENS

1шт.

3

3040096R1

NO LONGER SERVICED

BULB

1шт.

4

3041707R1

GASKET

1шт.

5

3041710R91

BODY

1шт.

6

3041709R1

GROMMET

1шт.

7

3041712R1

WASHER, shakeproof

2шт.

8

3041711R1

NUT

2шт.

9

3069332R1

BRACKET, rear lamp

2шт.

113956

WASHER,Slotted Rd Hd, 1/4"-20 x 5/8"

rd-hd-sltd., 1/4" x 5/8" mach.

4шт.

109084

NUT,1/4"-20, G5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

117959

GROMMET,5/16" ID x .719" x .062"

No. 3 5/16

2шт.

10

709234R1

BRACKET, side lamp

2шт.

109084

NUT,1/4"-20, G5

4шт.

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

rd-hd-sltd., mach., 1/4" x 5/8"

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

11

709233R91

LAMP, side (12V 6W), comprising

1шт.

12

3041708R1

LENS

1шт.

13

3040096R1

NO LONGER SERVICED

BULB

1шт.

14

3041707R1

GASKET

1шт.

15

3041710R91

BODY

1шт.

16

3041709R1

GROMMET

1шт.

17

3041711R1

NUT

2шт.

18

3041712R1

WASHER, shakeproof

2шт.

19

709443R1

BRACKET, reflector support

2шт.

110500

SCREW,Slotted Rd Hd, #10-24 x 1/2"

rd-hd-sltd., mach., No. 10 x 1/2"

4шт.

110633

NUT,#10-24

4шт.

100497

WASHER, lock, No.10

4шт.

20

709444R91

REFLECTOR

RELFECTOR, rear (red)

1шт.
