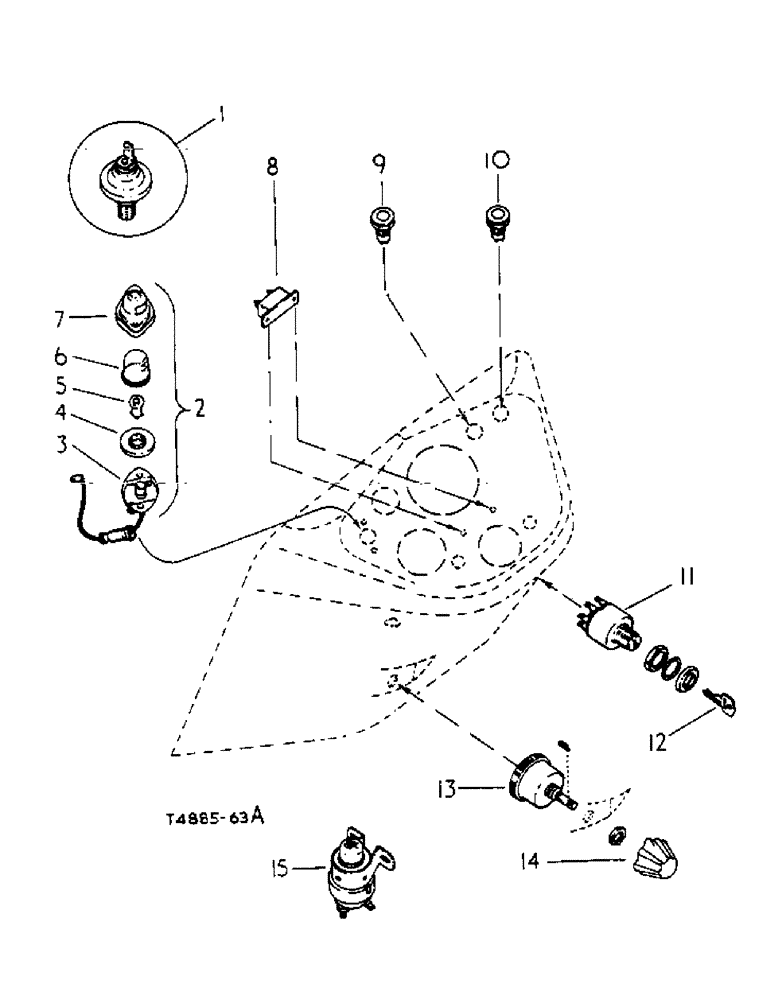

Запчасти Case IH 276 (3-15) - ELECTRICAL INSTRUMENTS, PETROL (04) - ELECTRICAL SYSTEMS

1

3041100R91

PRESSURE SWITCH

SWITCH, oil pressure (opt.)

1шт.

3060472R91

SWITCH ASSY

SWITCH, oil pressure (opt.)

1шт.

2

3063835R91

LIGHT ASSY.

LAMP, cpte., panel (I.H. Red), comprising

1шт.

3

751462R91

BODY and CONTACT, assy.

1шт.

3041398R1

TERMINAL, flag

1шт.

4

751468R1

WASHER, sealing

1шт.

5

751467R1

BULB

(12 v - 6w) single contact

1шт.

6

751466R1

LENS

glass

1шт.

7

751465R91

SHIELD, assy.

1шт.

8

3062302R91

BREAKER

circuit

1шт.

134532

DISC

NUT, hex., No. 6

2шт.

121839

SCREW,Sl Rnd Hd, #6 - 32 x 5/16"

rd-hd., No. 6 x 5/16"

2шт.

446120

WASHER,#6

5/32" x 5/16" x 20 ga.

2шт.

9

894313H1

LAMP

oil pressure warning (Green)

1шт.

894350H1

BULB

1шт.

10

894348H1

WARNING LIGHT

LAMP, warning (Red)

1шт.

11

3062964R91

IGNITION SWITCH

SWITCH, key

1шт.

3109938R91

LOCK

w/two KEY 3062962R1

1шт.

12

3062962R91

KEY, starter switch

2шт.

Illustration shows the key with the switch, it is not included.

1шт.

3063384R1

SEALING RING

RING, rubber sealing

1шт.

13

709489R92

LIGHT SWITCH

SWITCH, light

1шт.

3042361R1

NUT, friction

1шт.

3042365R1

NUT, switch retaining

1шт.

3042364R1

SCREW

1шт.

3042360R1

WASHER, lock

1шт.

3042362R1

WASHER

1шт.

3042363R1

WASHER

1шт.

14

3042366R1

KNOB

1шт.

15

704668R94

SWITCH

strater motor solenoid (12V)

1шт.

372632A1

SPRING

hex., No. 12 mach.

2шт.

113809

SCREW, No. 12 x 9/16" rd-hd., sltd., mach.

1шт.

106498

LOCK WASHER,#12

Washer, Lock, #12

2шт.

3070493R1

GROMMET

1шт.
