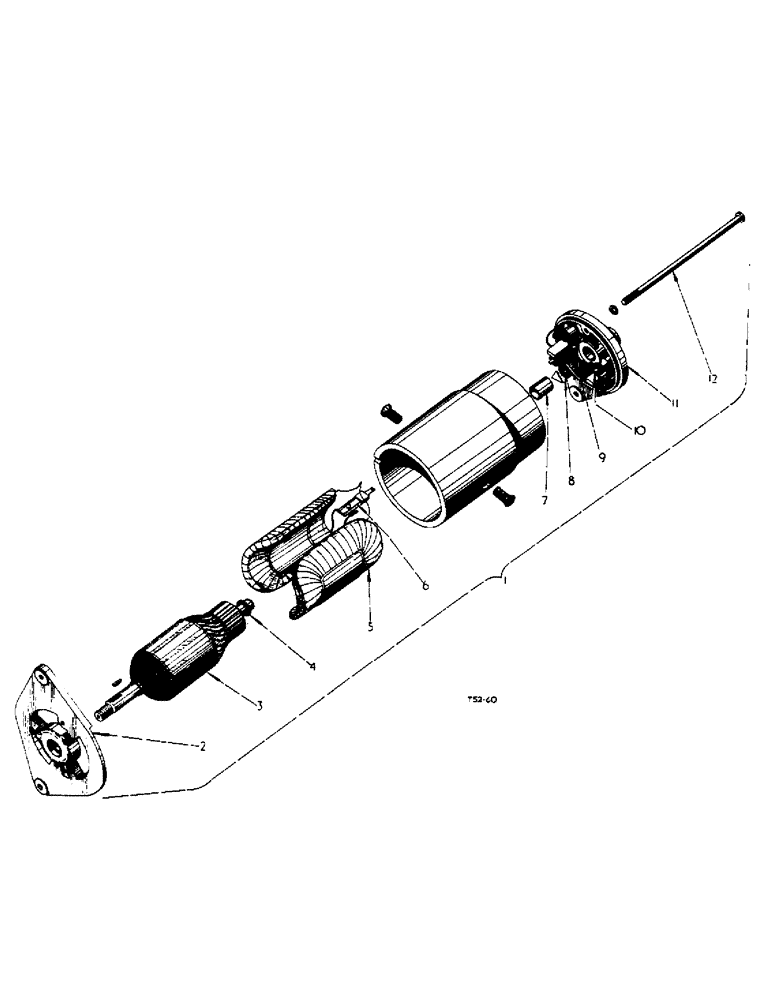

Запчасти Case IH 276 (3-07) - GENERATOR (04) - ELECTRICAL SYSTEMS

1

3043178R92

GENERATOR

12 volt, cpte., comprising Ref. 2 - 10

1шт.

2

3043332R1

BRACKET

drive end, rivetted, order 3043332R91

1шт.

2

BRACKET, drive end, cpte., circlipped, comprising next 5 items

1шт.

3107835R1

SNAP RING

CIRCLIP

1шт.

3106545R1

"O" RING

1шт.

3106541R1

PLATE ASSY.

PLATE, bearing

1шт.

3106543R1

WASHER

felt retaining

1шт.

3106544R1

WASHER

felt

1шт.

3

3043336R92

ARMATURE

1шт.

4

706483R1

COLLAR CLAMP

WASHER, fibre, thrust

1шт.

5

3043338R91

COIL

S, field set, with Terminals 3106546R91

1шт.

6

3106546R91

TERMINAL, lucas, set

1шт.

Used in Generators with Circlipped Drive End Bracket

1шт.

6

3043339R91

TERMINAL CONNECTOR

TERMINAL, lucas, set

1шт.

Used in Generators with Rivetted Drive End Bracket

1шт.

7

700474R1

BUSHING

BUSH, bronze

1шт.

8

3043329R91

OILER

FELT, oiler

1шт.

9

3043327R91

BRUSH, COMMUTATOR

BRUSH, set

1шт.

10

3043330R91

SPRING

KIT, brush tension spring

1шт.

11

3043328R91

BRACKET

commutator end, cpte., comprising next 3 items

1шт.

700474R1

BUSHING

BUSH

1шт.

3043330R91

SPRING

KIT

1шт.

3043329R91

OILER

1шт.

12

702001R1

BOLT

through

2шт.

700468R1

BEARING

drive end

1шт.

3043337R1

CLAMP

COLLAR, drive end bearing

1шт.

3043334R1

NUT

shaft

1шт.

3043333R1

PLATE

bearing

1шт.

Used in Generators with Rivetted Drive End Bracket

1шт.

700481R1

RETAINER, bearing ring

1шт.

3043340R91

PACKAGE

SUNDRY PARTS SET

1шт.

706480R1

WASHER, corrugated

1шт.

Used in Generators with Rivetted Drive End Bracket

1шт.

3043335R1

WASHER, shakeproof

1шт.

17923R1

BOLT

hex-hd., 5/16" x 7" up to 276 / 2687

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16" up to 276 / 2687

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, , Up tolatecuit 5/16"

1шт.

181339

BOLT,Hex, 5/16" - 24 x 1", Gr 5

276 / 2688 up Hex, 5/16"-24 x 1", G5, Full Thd

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, , 276 / 2688 up 5/16"

2шт.
