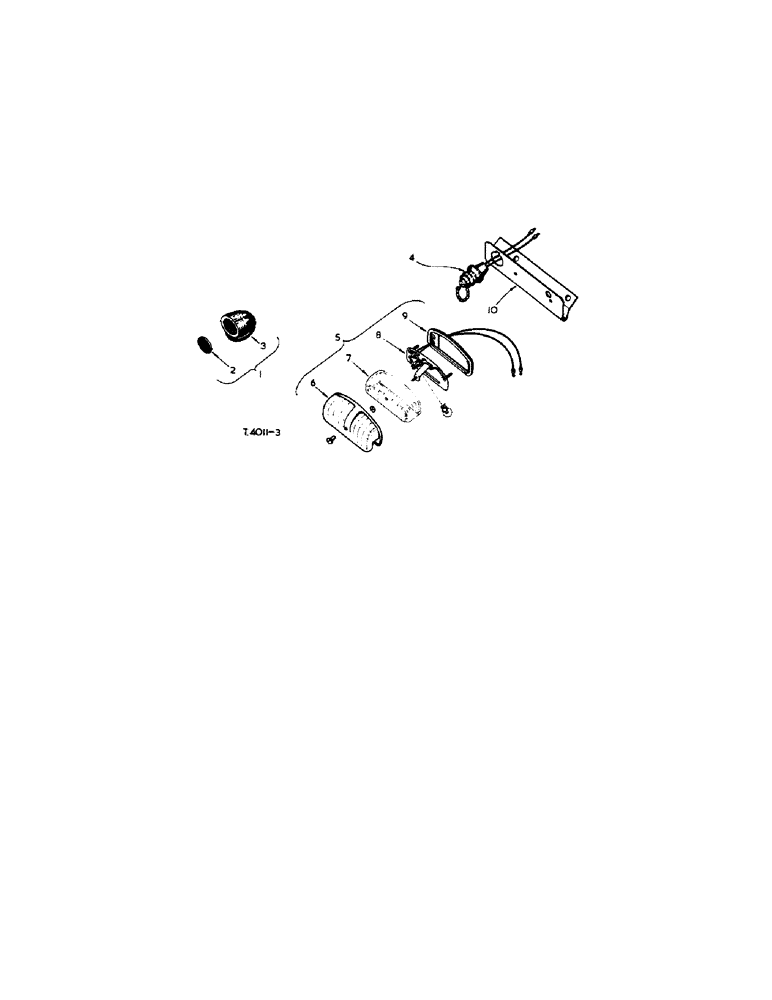

Запчасти Case IH 276 (3-06) - REGISTRATION LAMP AND REFLECTORS (04) - ELECTRICAL SYSTEMS

1

705268R91

1шт.

2

705751R1

REFLECTOR

reflex

2шт.

3

NSS

NOT SOLD SEPARAT

HOLDER, reflex

2шт.

4

705271R91

SOCKET/RECEPTACLE

SOCKET, power w/CABLE

1шт.

5

3107874R91

LIGHT, WARNING

LAMP, cpte., reg., number platecuit

1шт.

705270R91

NO LONGER SERVICED

LAMP, cpte., reg., number platecuit

1шт.

705757R91

LAMP

BULB, 12 v 4w

1шт.

705756R1

GROMMET, cable

1шт.

705758R91

NO LONGER SERVICED

SUNDRY PARTS, set

1шт.

6

705759R91

BASE, assy.

1шт.

7

705755R1

WINDOW

1шт.

8

705753R1

BODY

1шт.

9

705754R1

GASKET, window seating

1шт.

10

3071501R2

BRACKET

reg. number plate

1шт.

3068321R1

SPACER, .406 x .75 x .250

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex-hd., 3/8" x 1"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
