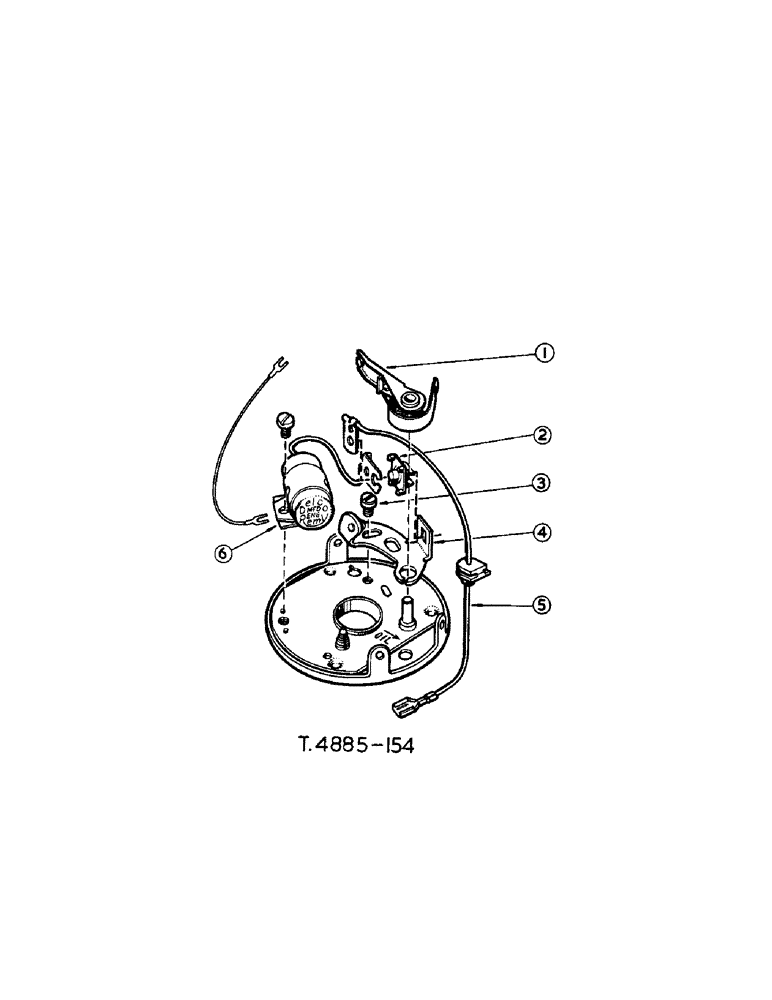

Запчасти Case IH 276 (2-19[1]) - CIRCUIT BREAKER DISTRIBUTOR WITH TACHO DRIVE (04) - ELECTRICAL SYSTEMS

ref

Part No.

English

1шт.

3072997R91

BREAKER

circuit, assy., comprising

1шт.

3072998R91

MULTIPOLE CONNECTOR

SET, contact, cpte., w/LEVER 3072999R1, SUPPORT 3073000R91 and INSULATOR 3073001R1

1шт.

1

3072999R91

LEVER

contact point locking

1шт.

2

3073001R1

INSULATOR

1шт.

3

3073002R1

SCREW

contact point locking

1шт.

4

3073000R91

BREAKER POINTS

SUPPORT, contact point assy.

1шт.

5

3069884R91

ELECTRICAL WIRE

LEAD, Lt., w/GROMMET

1шт.

6

3073003R91

CONDENSER

assy.

1шт.
