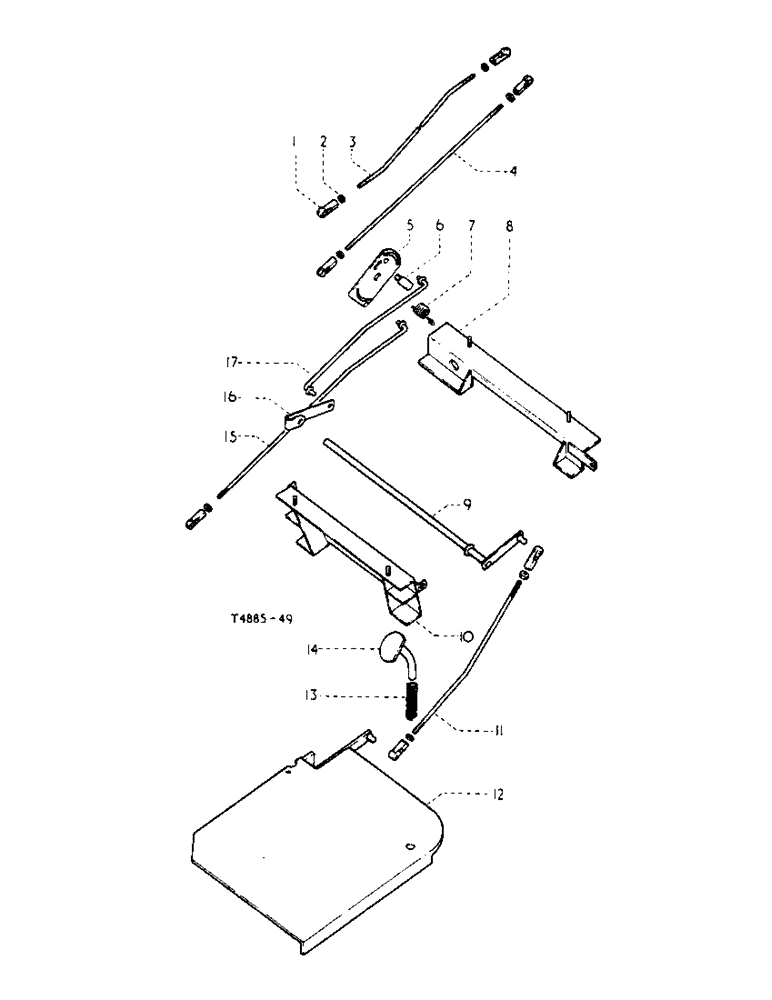

Запчасти Case IH 276 (6-59) - ROD ACTUATED FOOT ACCELERATOR ATTACHMENTS (03) - FUEL SYSTEM

3106785R91

1шт.

3106786R91

ACCELERATOR

1шт.

1

(See Accelerator Controls -e.,x, (A

1шт.

2

(See Accelerator Controls -e.,x, (A

1шт.

3

(See Accelerator Controls -e.,x, (A

1шт.

4

(See Accelerator Controls -e.,x, (A

1шт.

5

3071202R11

PLATE, two way control, cpte.,x, (A

1шт.

5

3071213R11

PLATE, two way control, cpte.,x, (A

1шт.

706204R1

PIN, governor control rod ball

1шт.

6

3071207R1

AXLE PIN

STOP, governor control

1шт.

231-1445

NUT,5/16"-18, GB

NUT, stop, 5/16"

1шт.

106261

WASHER,1/4"

plain, 5/16" x 3/4" x, (A

1шт.

7

3071204R1

SPRING

control plate return

1шт.

8

3071210R91

SUPPORT, fuel tank-front, cpte.

1шт.

9

3071199R11

SHAFT, cross, cpte., w/PIN 706204R1

1шт.

706204R1

PIN, governor control rod ball

1шт.

10

3071208R91

SUPPORT, fuel tank, rear, cpte., (A

1шт.

11

3071198R11

ROD

governor control, cpte., x 16"

1шт.

3068537R1

TRUNNION

END, control rod

2шт.

114501

JAM NUT,Jam, 1/4"-20, G5

2шт.

3071198R1

ROD, governor control

1шт.

12

3071180R91

FOOTPLATE, R.H. cpte. (A C)

1шт.

13

751665R1

SPRING

foot accelerator

1шт.

14

3047530R91

PEDAL, foot control, cpte.

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

15

3071205R11

ROD, control, centre, cpte.," x 16"

1шт.

3068537R1

TRUNNION

END, control rod

1шт.

114501

JAM NUT,Jam, 1/4"-20, G5

1шт.

103361

PIN, SPLIT (COTTER)

PIN, cotter, 1/16" x 1/2"

1шт.

16558R1

WASHER

flat, 17/64" x 5/8" x 16"

1шт.

16

3071201R1

LEVER, foot control

1шт.

114501

JAM NUT,Jam, 1/4"-20, G5

1шт.

113959

SCREW,Sl Rnd Hd, 1/4" - 20 x 1"

rd-hd., sltd., mach., 1/4"

1шт.

17

3071203R11

ROD, control, control plate tohaft

1шт.

NLS

NO LONGER SERVICED

PIN, cotter, 1/16" x 1/2"

2шт.

16558R1

WASHER

1шт.

3071181R91

BRACKET, foot control, cross shaft

1шт.

3071209R1

BRACKET, cross shaft (B2 D2)

1шт.
