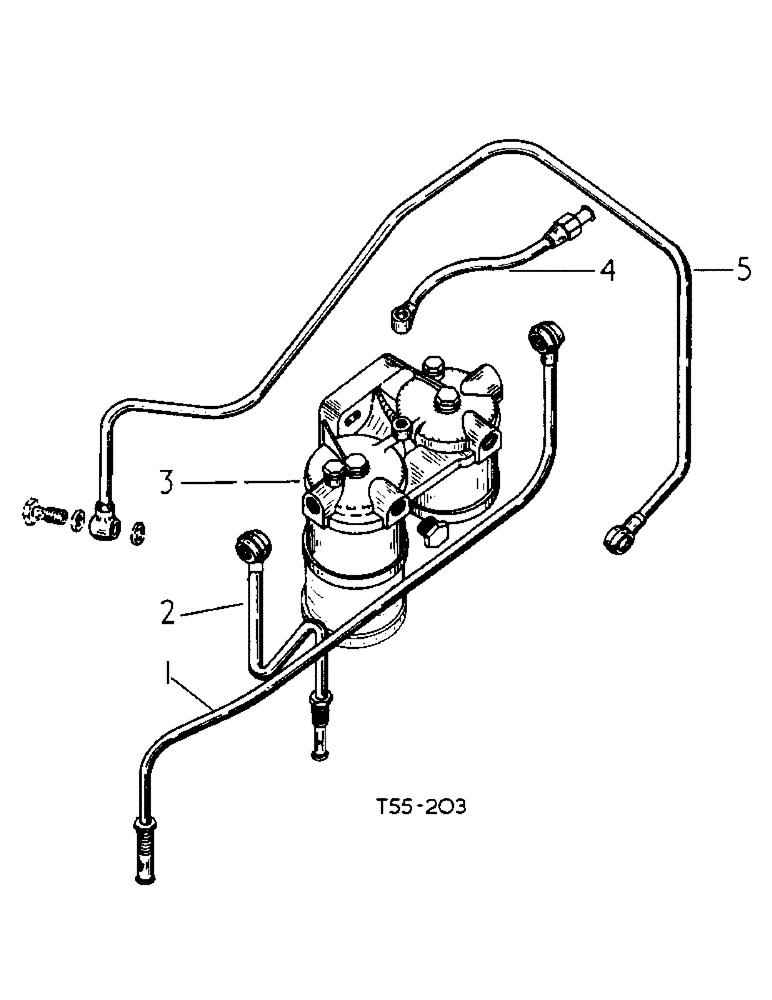

Запчасти Case IH 276 (6-51) - FUEL FILTER AGGLOMERATOR ATTACHMENT (03) - FUEL SYSTEM

ATTACHMENT, twin bowl fuel filter agglometer (Factory application) (A)

1шт.

3069605R91

ATTACHMENT, twin bowl fuel filter agglometer (B)

1шт.

3069606R91

1шт.

ATTACHMENT, twin bowl fuel filter agglometer (C) Units. Letters of these units correspond with those following the description of the parts in the list below and identifies the unit for which the part is used. Items without letters after the description indicates the part is used for all units.

1шт.

1

3064791R92

PIPE

fuel (excess fuel) inj., Serial Range: pump-filter

1шт.

2

3064790R92

PIPE

fuel filter to injection pump

1шт.

3

3069608R91

FILTER

agglometer(A B)

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

BOLT, hex-hd., 3/8" x 1-3/8"(A2) (B2)

1шт.

3064788R1

BOLT,1/2" - 20 x 0.875", Brass

fuel filter banjo inlet (A B)

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (A B) 3/8"

1шт.

4

3064792R91

PIPE

fuel filter air bleed to return (A B)

1шт.

5

3064789R92

PIPE

fuel feed pump to filter (A B)

1шт.

708308R31

PIPE

injection No. 2 cpte. (B C)

1шт.

3069609R91

KIT

twin bowl fuel filter conversion (C)

1шт.

3069610R1

BOWL

BODY, agglomerator

1шт.

3069612R91

BASE

agglometer w/Stud

1шт.

3072558R1

PLUG

drain

1шт.

3105001R1

SEAL

body & base

2шт.

3072559R1

WASHER

drain plug

1шт.
