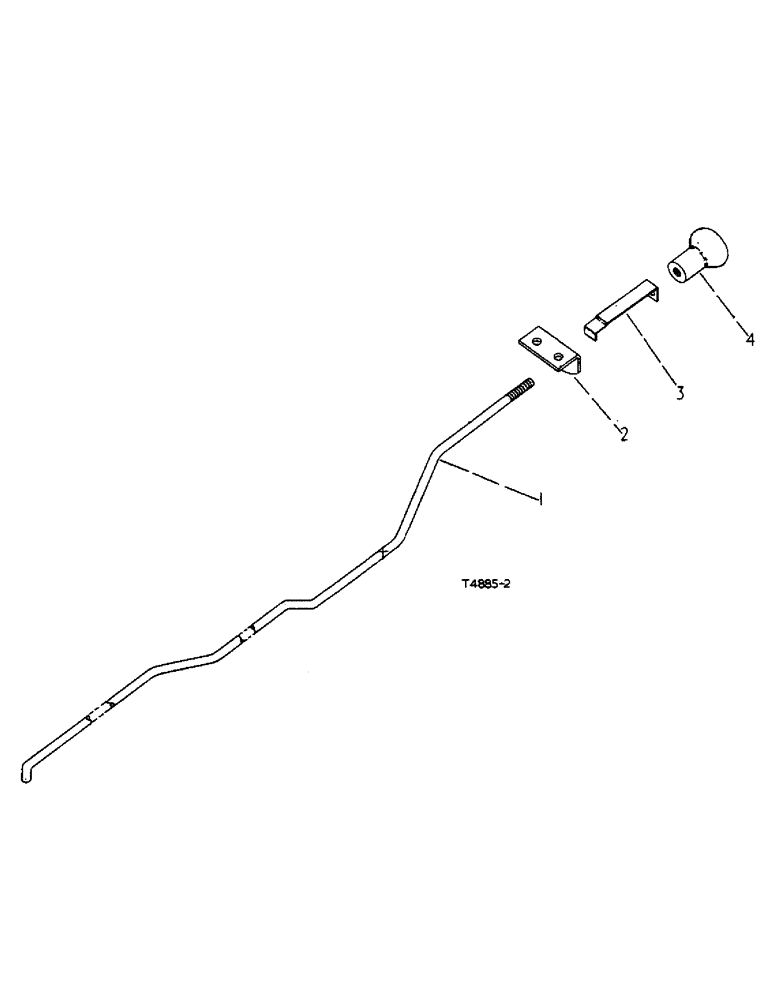

Запчасти Case IH 276 (4-14) - FUEL SHUT-OFF CONTROLS (03) - FUEL SYSTEM

1

3070484R1

ROD

fuel shut-off control

1шт.

NLS

NO LONGER SERVICED

PIN, 1/16" x 1/2" cotter

1шт.

440160

RELAY

WASHER, 7/32" x 7/16" x 18 ga.

1шт.

2

3070483R1

BRACKET

fuel shut-off rod support

1шт.

180014

SCREW,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

BOLT, hex-hd., 1/4" x 3/8"

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

3066382R1

SPRING

fuel shut-off control rod return

1шт.

4

3066381R1

KNOB

stop control

1шт.

706216R1

NUT

2 BA hex.

1шт.
