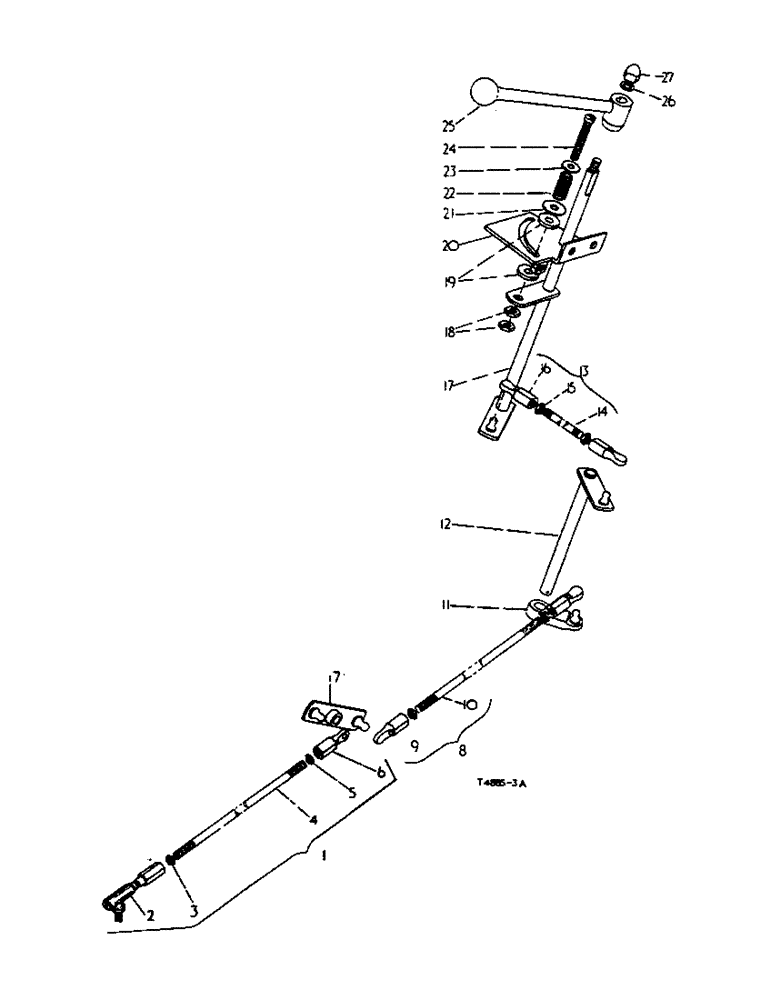

Запчасти Case IH 276 (4-12) - GOVERNOR CONTROLS, DIESEL (03) - FUEL SYSTEM

1

3109939R91

ROD, cpte., control front, 276D/5583 up, including 276 Ind/2024 up

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4" UNF hex.

1шт.

115547

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

1шт.

2

3109941R91

TRACK ROD END ASSY

END, ADT., control rod 276D/5583 up

1шт.

3070498R1

END

ball, Serial Range: up-276D/5582

1шт.

3

114492

JAM NUT,Jam, 1/4"-28, G5

1/4" UNF 276D/5583 up, including 276 Ind/2024 up

1шт.

4

3071206R1

ROD, front control order 3109939R91, including 276 Ind/2024 up

1шт.

4

3109940R1

ROD

front control 276D/5583 up, including 276 Ind/2024 up

1шт.

5

114501

JAM NUT,Jam, 1/4"-20, G5

1шт.

6

3068537R1

TRUNNION

END, control rod

1шт.

7

3070479R11

CENTRE, cpte., governor control lever

1шт.

NLS

NO LONGER SERVICED

PIN, 1/16" x 1/2" cotter

1шт.

95-11034

WASHER,1/4"

11/32" x 11/16"

1шт.

8

3071788R11

NUT

ROD, cpte., centre control

1шт.

9

3068537R1

TRUNNION

END, control rod

2шт.

114501

JAM NUT,Jam, 1/4"-20, G5

1шт.

10

3071788R1

ROD, centre control

1шт.

11

3070477R11

EXTENTION, cpte., governor control

1шт.

18607R1

LOCK PIN,1/8" x 3/4", Slotted

PIN, , ESNA 1/8" x 3/4", Slotted

1шт.

12

3070462R11

EXTENTION, cpte., governor controlD

1шт.

13

3070464R11

ROD

cpte., rear governor controlND

1шт.

14

3070464R1

ROD, rear governor control

1шт.

15

114501

JAM NUT,Jam, 1/4"-20, G5

2шт.

16

3068537R1

TRUNNION

END, control rod

2шт.

17

3070476R11

BOTTOM

LEVER, bottom governor control hand

1шт.

18

114492

JAM NUT,Jam, 1/4"-28, G5

1/4" jam

2шт.

19

704681R2

FRICTION WASHER

governor control friction

2шт.

20

3070457R11

PLATE, governor control friction

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4" UNF hex, jam

3шт.

187330

SCREW, 1/4" UNF x 1" fil-hd-sltd.

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

220507

SCREW, fill-hd., 1/4" UNF xl,rial

1шт.

21

3047325R1

WASHER

governor control

1шт.

22

709654R1

VALVE SPRING

SPRING, governor control friction

1шт.

23

95-11028

WASHER,1/4"

1шт.

24

225507

SCREW,Slotted Fil Hd, 1/4"-28 x 1 3/8"

1/4" UNF x 1-3/4" fill-hd.

1шт.

25

3073108R1

LEVER

cpte., governor control,rial

1шт.

26

446190

WASHER

17/64" x 5/8" x .049

1шт.

27

131436

LEVER

NUT, 1/4" low crown

1шт.
