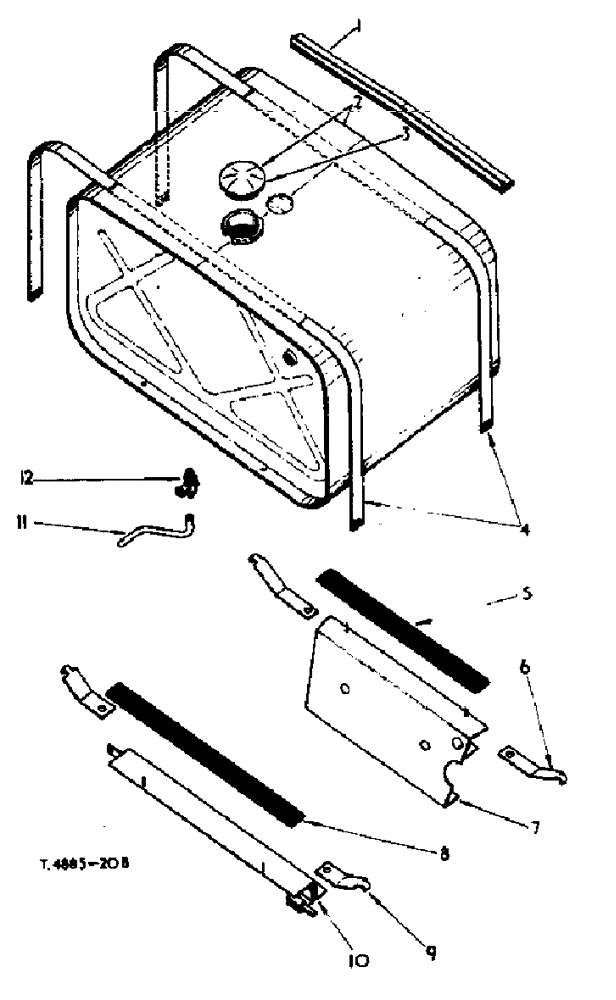

Запчасти Case IH 276 (4-10) - FUEL SYSTEM, DIESEL (03) - FUEL SYSTEM

1

3072842R1

BEADING, fuel tank

1шт.

2

3072843R91

TANK

w/BEADING 3072842R1 and CAP 3071341R91, cpte., fuel

1шт.

3

3071341R91

CAP

fuel tank filler

1шт.

3041388R1

GASKET

filler cap

1шт.

4

3070466R1

COLLAR CLAMP

STRAP, fuel tank hold down

2шт.

5

3070467R1

PAD, rubber, fuel tank rear support

1шт.

6

3070458R1

PLATE, fuel tank support spring

2шт.

7

3070452R11

SUPPORT, cpte., fuel tank, rear

1шт.

179857

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

hex-hd., 7/16" x 7/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

3070456R1

WASHER

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

8

3070467R1

PAD, rubber, fuel tank front support

1шт.

9

3070463R1

PLATE

fuel tank support front spring

2шт.

179836

SCREW,Hex, 3/8" - 16 x 11/16"

BOLT, hex-hd., 3/8" x 11/16"

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

10

3071210R91

SUPPORT, cpte., front fuel tank

1шт.

179836

SCREW,Hex, 3/8" - 16 x 11/16"

BOLT, hex-hd., 3/8" x 11/16"

2шт.

3070456R1

WASHER

2шт.

11

3072393R1

TUBE, Tecalon Nylon

1шт.

12

3072392R92

VALVE

TAP, water trap drain

1шт.
