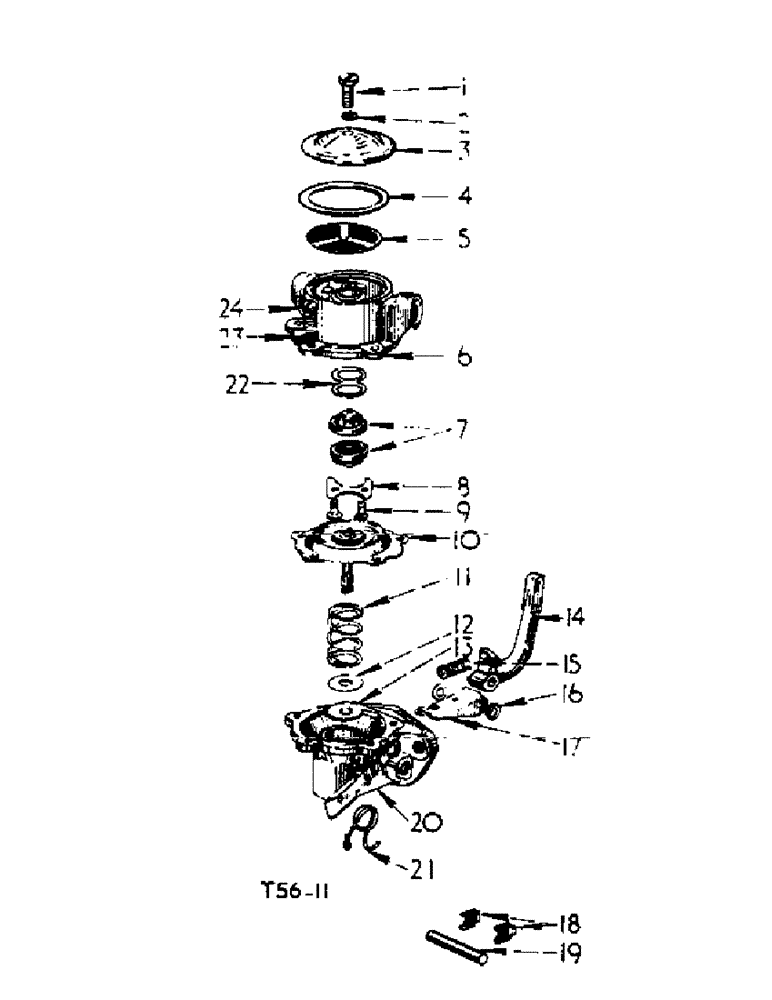

Запчасти Case IH 276 (2-13) - FUEL FEED PUMP (03) - FUEL SYSTEM

3044197R92

PUMP

fuel feed. cpte., comprising

1шт.

1

702953R1

SCREW

head

1шт.

2

3044511R1

GASKET

head screw

1шт.

(++) Parts used in Old Assemblies

1шт.

3

3044512R1

COVER

filter

1шт.

4

3044518R1

GASKET

filter

1шт.

(++) Parts used in Old Assemblies

1шт.

5

3044513R1

FILTER SCREEN

SCREEN, filter

1шт.

(++) Parts used in Old Assemblies

1шт.

6

3105122R91

COVER

assy.

1шт.

7

702959R91

VALVE

assy.

2шт.

(++) Parts used in Old Assemblies

1шт.

8

702960R1

RETAINER

valve

1шт.

(++) Parts used in Old Assemblies

1шт.

9

702961R1

SCREW

valve retaining

2шт.

(++) Parts used in Old Assemblies

1шт.

10

708953R91

DIAPHRAGM

assy.

1шт.

(++) Parts used in Old Assemblies

1шт.

11

3047235R1

SPRING, diaphragm

1шт.

12

3072671R1

WASHER

oil seal, (metal)

1шт.

(++) Parts used in Old Assemblies

1шт.

13

3072672R1

SEALING WASHER

OIL SEAL

1шт.

(++) Parts used in Old Assemblies

1шт.

14

3044517R1

ARM

rocker

1шт.

15

708956R1

SPRING

rocker arm

1шт.

(++) Parts used in Old Assemblies

1шт.

16

708957R1

WASHER

rocker arm pin

2шт.

(++) Parts used in Old Assemblies

1шт.

17

708963R1

LINK

1шт.

(++) Parts used in Old Assemblies

1шт.

18

3044516R1

RETAINER

rocker arm pin

2шт.

(++) Parts used in Old Assemblies

1шт.

19

3044515R1

PIN

rocker arm

1шт.

(++) Parts used in Old Assemblies

1шт.

20

3044519R91

COVER ASSY

BODY & HAND PRIMER, set

1шт.

21

3044520R1

SPRING

priming lever

1шт.

22

3065032R1

GASKET, valve

1шт.

(++) Parts used in Old Assemblies

1шт.

23

NOT USED

1шт.

24

132105

SCREW,Sl Fil Hd, #10 - 32 x 3/8"

cover, No. 10 unf x 3/8"

5шт.

3063872R1

BOLT

12 point ring 5/16" x 3/4"

2шт.

3046381R92

REPAIR KIT

KIT, repair, less rocker arms,rsize

1шт.

(++) Parts used in Old Assemblies

1шт.

702951R1

CLIP, pin

2шт.

(++) Parts used in Old Assemblies

1шт.

702958R1

GASKET

valve

1шт.

(++) Parts used in Old Assemblies

1шт.

3061658R1

GASKET

pad

1шт.

(++) Parts used in Old Assemblies

1шт.

702950R1

PIN, rocker arm

1шт.

(++) Parts used in Old Assemblies

1шт.

702960R1

RETAINER

valve

1шт.

(++) Parts used in Old Assemblies

1шт.

702961R1

SCREW

retainer

1шт.

(++) Parts used in Old Assemblies

1шт.

708958R1

WASHER

metal, oil seal

1шт.

(++) Parts used in Old Assemblies

1шт.

708959R1

WASHER

fabric, oil seal

1шт.

(++) Parts used in Old Assemblies

1шт.

3046382R91

PACKAGE

1шт.

(++) Parts used in Old Assemblies

1шт.

702958R1

GASKET

1шт.

(++) Parts used in Old Assemblies

1шт.

3061658R1

GASKET

PAD, gasket

1шт.

(++) Parts used in Old Assemblies

1шт.

3044458R1

PRIMER PAINT

PRIMER PARTS, set

1шт.

3043370R1

GASKET

feed pump

1шт.

3061658R1

GASKET

feed pump

1шт.
