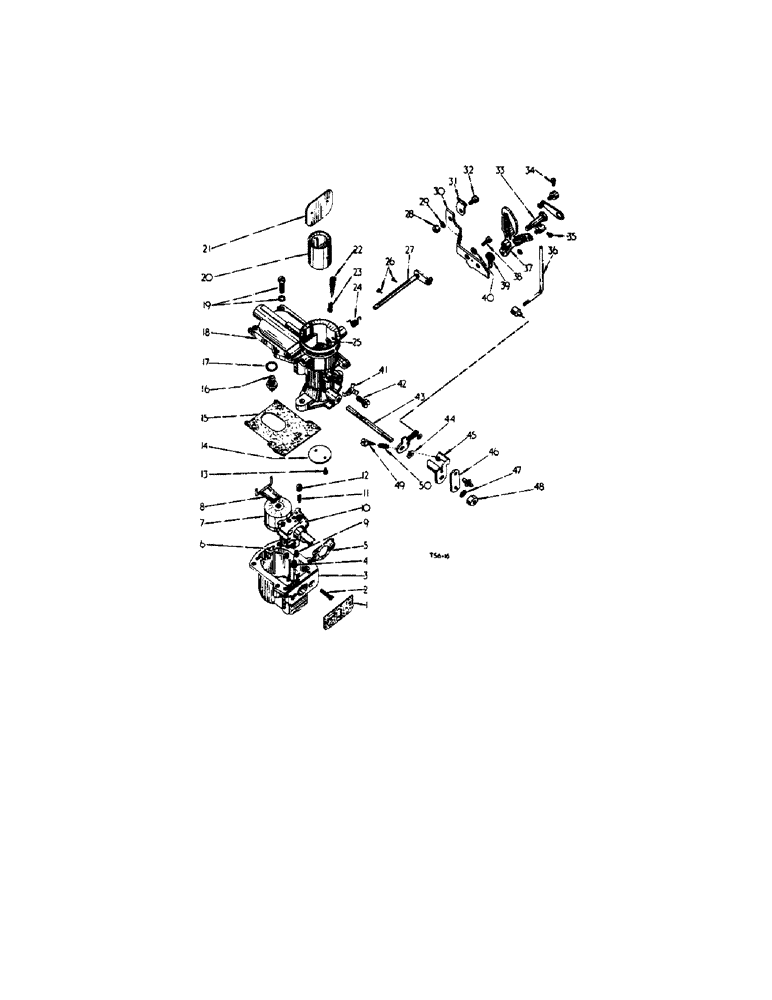

Запчасти Case IH 276 (2-11[1]) - CARBURETTOR (03) - FUEL SYSTEM

3045515R92

CARBURETTOR, comprising Ref. 1 - 50

1шт.

1

3047468R1

GASKET

vertrical bowl face

1шт.

3047467R1

SCREW, parker

2шт.

2

3047461R1

SCREW fixing, emulsion block

2шт.

3

3047458R1

BOWL, carburettor

1шт.

4

708396R1

JET

main (size 92)

1шт.

On orders for either furnish 708396R1 and 3048469R1

1шт.

5

3047460R1

GASKET

emulsion block

1шт.

6

3047505R1

SCREW

ventilating (size 2.6)

1шт.

7

3047463R91

FLOAT

1шт.

8

3047464R91

ARM

FLAOT ARM and PIVOT

1шт.

9

3048469R1

JET

compensating (size 85)

1шт.

On orders for either furnish 708396R1 and 3048469R1

1шт.

10

3047459R1

BLOCK, emulsion

1шт.

11

3047506R1

JET

slow running (size 50)

1шт.

12

3047507R1

PLUG

over slow running jet (size

1шт.

13

3047479R1

SCREW

throttle

2шт.

14

3047478R1

THROTTLE

1шт.

15

3047466R1

GASKET

cover float chamber

1шт.

3047467R1

SCREW, parker

4шт.

16

3047508R92

JET

SEATING, needle (size 1.5)

1шт.

17

3047462R1

WASHER

for needle seating

1шт.

18

3047469R91

BARREL, carburettor, assy.

1шт.

19

3047465R91

SCREW

1шт.

20

3047502R1

TUBE, choke (size 22)

1шт.

21

3047486R1

FLAP, strangler

1шт.

22

3047499R1

SCREW

volume control

1шт.

23

3047499R1

SCREW

SPRING, volume control

1шт.

24

3047485R1

SPRING

automaticity

1шт.

25

3047484R1

WASHER

for strangler spindle

1шт.

26

700659R1

SCREW

strangler flap

1шт.

27

3347483R91

LEVER and SPINDLE, stangler

1шт.

28

3047489R1

NUT

1шт.

29

3047490R1

WASHER, shakeproof

1шт.

30

3047491R91

BRACKET, strangler control

1шт.

31

3047487R1

CLIP

1шт.

32

3047488R1

SCREW

1шт.

33

3047495R1

SCREW

strangler control lever,he

1шт.

34

3047497R1

SCREW, swivel

1шт.

35

3047496R1

SCREW, interconnection swivel

1шт.

36

3047476R1

ROD, interconnection

1шт.

37

3047493R91

LEVER

strangler control

1шт.

38

3047492R1

SCREW, strangler control bracket

1шт.

39

3047494R1

SPRING

stangler control lever

1шт.

40

3047490R1

WASHER, shakeproof

1шт.

41

3047481R1

WASHER, tab

1шт.

42

3047482R1

SCREW, fixing choke tube

1шт.

43

3047470R1

SPINDLE

throttle

1шт.

44

3047477R1

WASHER, for throttle spindle

1шт.

45

3047471R1

STOP, throttle

1шт.

46

3047472R91

LEVER, throttle

1шт.

47

3047474R1

WASHER, shakeproof

1шт.

48

3047473R1

NUT

1шт.

49

3047480R1

SCREW, throttle stop

1шт.

50

700632R1

SPRING

throttle stop screw

1шт.

3047501R1

GASKET

flange

1шт.

3047475R91

LEVER, floating

1шт.

3047498R91

LINK, strangler control

1шт.
