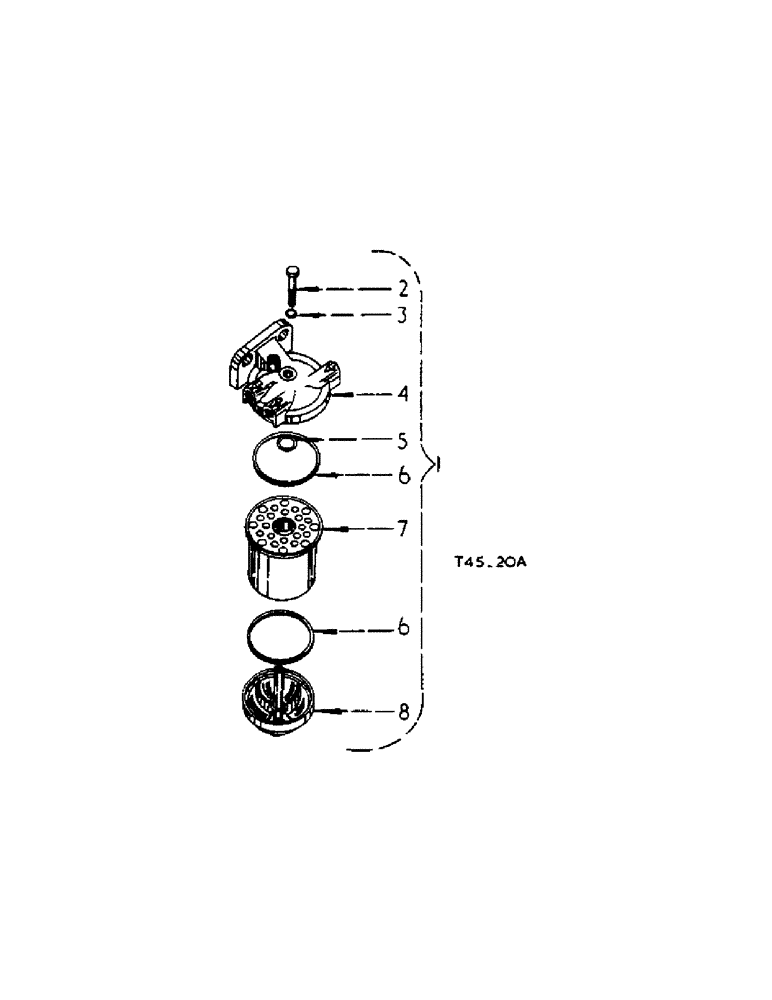

Запчасти Case IH 276 (1-11) - FUEL FILTER ASSEMBLY (03) - FUEL SYSTEM

1

3043645R91

FILTER CARTRIDGE

FILTER, fuel assy., comprising

1шт.

2

3044503R1

BOLT,1/4" - 20

centre

1шт.

3

3044504R1

WASHER

centre bolt

1шт.

4

3044502R1

HEAD

RING, element seal

1шт.

5

3044505R1

SEAL

head and base sealing

2шт.

6

3105001R1

SEAL

ELEMENT, w/two SEAL 3105001R1,of

1шт.

7

3044506R91

ELEMENT

BASE, and Stud, filter, assy.

1шт.

NLS

NO LONGER SERVICED

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
