(1-11[1]) - INJECTOR NOZZLE AND NOZZLE COMPLETE

Запчасти Case IH 276 (1-11[1]) - INJECTOR NOZZLE AND NOZZLE COMPLETE (03) - FUEL SYSTEM

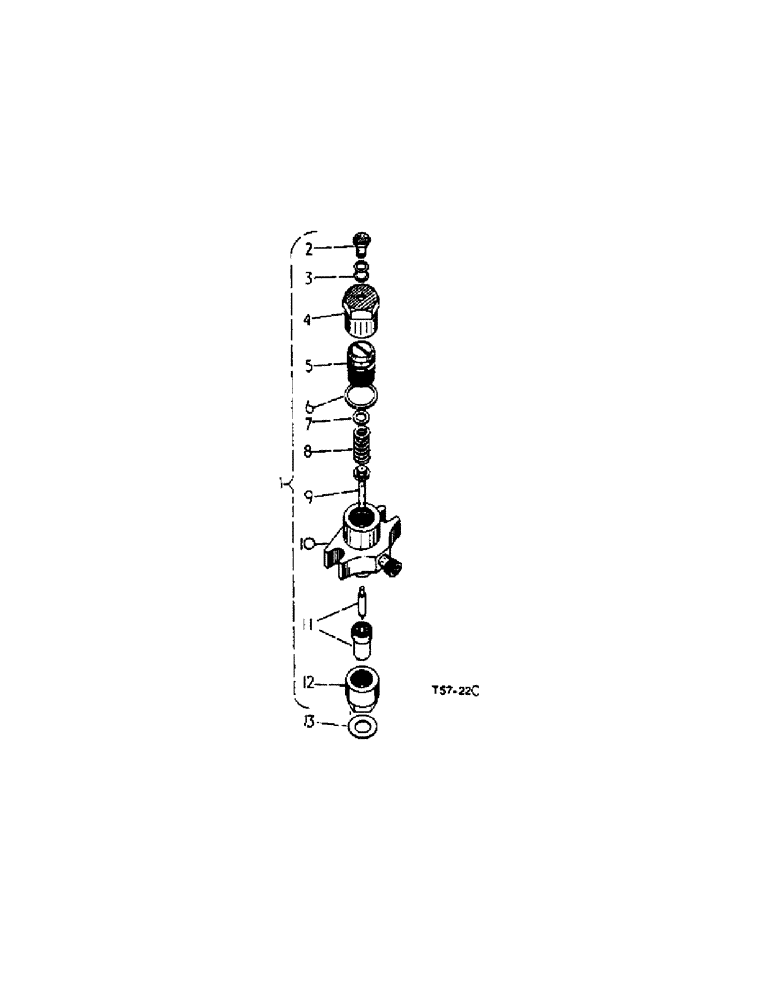

Схема запчастей Case IH 276 - (1-11[1]) - INJECTOR NOZZLE AND NOZZLE COMPLETE (03) - FUEL SYSTEM
9
8
3
7
1
13
10
4
6
5
11
2
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

ref

Part No.

English

1шт.

On orders for HOLDER 3040870R93 furnish R94 w/two WASHER 706077R1, two WASHER 703519R1 and one STUD 705498R1

1шт.

1

3040870R93

FUEL SYSTEM INJECTOR

1шт.

On orders for HOLDER 3040870R93 furnish R94 w/two WASHER 706077R1, two WASHER 703519R1 and one STUD 705498R1

1шт.

2

706498R1

STUD, leak off

1шт.

On orders for HOLDER 3040870R93 furnish R94 w/two WASHER 706077R1, two WASHER 703519R1 and one STUD 705498R1

1шт.

3

703519R1

WASHER

stud, leak off

2шт.

On orders for HOLDER 3040870R93 furnish R94 w/two WASHER 706077R1, two WASHER 703519R1 and one STUD 705498R1

1шт.

4

3066623R1

NUT

cap, body

1шт.

On orders for HOLDER 3040870R93 furnish R94 w/two WASHER 706077R1, two WASHER 703519R1 and one STUD 705498R1

1шт.

5

706287R1

WASHER

CAP, spring

1шт.

On orders for HOLDER 3040870R93 furnish R94 w/two WASHER 706077R1, two WASHER 703519R1 and one STUD 705498R1

1шт.

6

706287R1

WASHER

joint

1шт.

On orders for HOLDER 3040870R93 furnish R94 w/two WASHER 706077R1, two WASHER 703519R1 and one STUD 705498R1

1шт.

7

895578H1

WASHER

1шт.

On orders for HOLDER 3040870R93 furnish R94 w/two WASHER 706077R1, two WASHER 703519R1 and one STUD 705498R1

1шт.

8

3066625R1

SPRING

1шт.

On orders for HOLDER 3040870R93 furnish R94 w/two WASHER 706077R1, two WASHER 703519R1 and one STUD 705498R1

1шт.

9

706282R91

NEEDLE BEARING CAGE

SPINDLE

1шт.

On orders for HOLDER 3040870R93 furnish R94 w/two WASHER 706077R1, two WASHER 703519R1 and one STUD 705498R1

1шт.

10

3066622R91

BODY

1шт.

On orders for HOLDER 3040870R93 furnish R94 w/two WASHER 706077R1, two WASHER 703519R1 and one STUD 705498R1

1шт.

11

3040871R91

NOZZLE CAP

NOZZLE, cpte.

1шт.

12

3066627R1

NUT

nozzle cap

1шт.

On orders for HOLDER 3040870R93 furnish R94 w/two WASHER 706077R1, two WASHER 703519R1 and one STUD 705498R1

1шт.

3072556R91

HOLDER, INJECTOR NOZ

HOLDER, inj. nozzle (consists of

1шт.

On orders for HOLDER 3040870R93 furnish R94 w/two WASHER 706077R1, two WASHER 703519R1 and one STUD 705498R1

1шт.

13

706291R1

WASHER

1шт.
