Запчасти Case IH 276 (6-67[1]) - AIR PRE-CLEANER ATTACHMENTS, EXPORT ONLY (02) - ENGINE

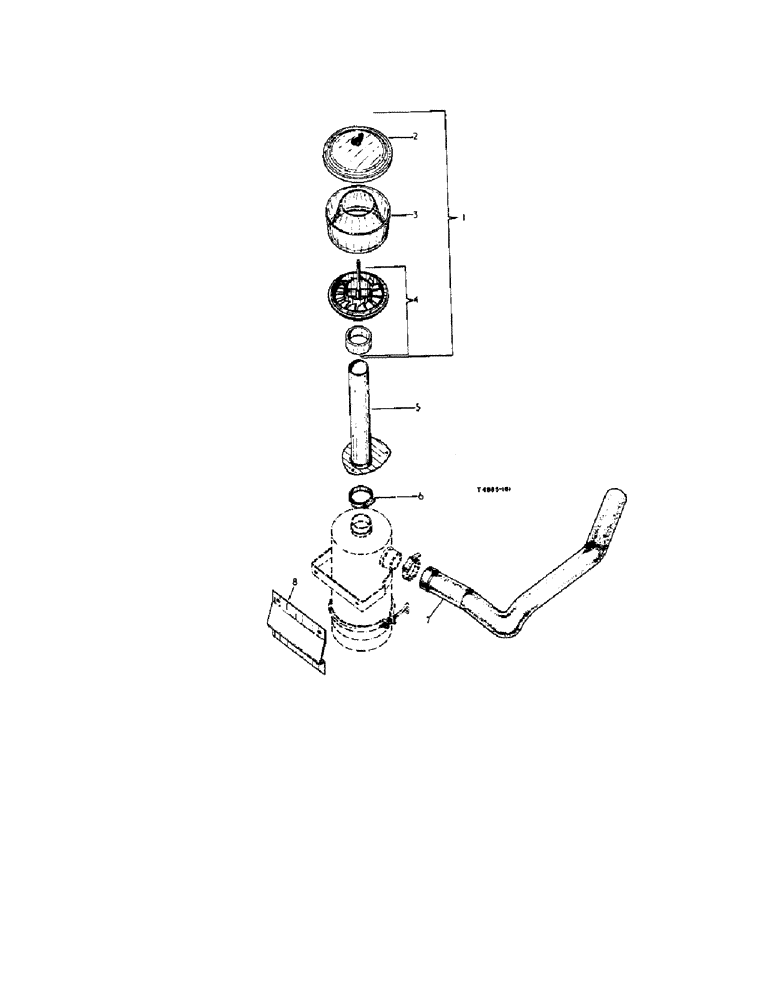

Схема запчастей Case IH 276 - (6-67[1]) - AIR PRE-CLEANER ATTACHMENTS, EXPORT ONLY (02) - ENGINE
4
1
7
8
2
5
6
3

Артикул

Название

Примечание

Количество

ref

Part No.

English, Serial Range: Key-Units

1шт.

ATTACHMENT, air pre-cleaner (Export) (Factory Application) (A)

1шт.

3110872R91

1шт.

ATTACHMENT, air pre-cleaner (Export) (B) Units. Letters of these units correspond with those following the description of the parts in the list below and identifies the unit for which the part is used. Items without letters after the description indicates the part is used for all units.

1шт.

1

3110873R91

PRE-CLEANER, assy., air, comprising

1шт.

2

3110930R91

COVER

assy.

1шт.

3

3110931R1

BODY, pre-cleaner (Plastic)

1шт.

4

3110932R91

SLEEVE

assy.

1шт.

5

3110865R1

TUBE, cpte., air cleaner extension

1шт.

180018

CONNECTING LINK

hex-hd., 1/4" x 5/8"

1шт.

180023

SPRING

hex-hd., 1/4" x 1-1/8"

2шт.

3072684R1

WASHER

2шт.

6

894056H1

CLIP

worm drive

1шт.

7

3110876R1

HOSE, air cleaner connection

1шт.

8

3110875R1

BRACKET, air cleaner

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16"

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3110877R91

FRAME, assy., radiator grille (A), comprising

1шт.

3071315R1

STRIP

cushion

1шт.

3110878R91

FRAME, cpte., radiator grille, comprising

1шт.

3070326R1

FRAME, radiator grille

1шт.

3044095R1

RIVET, pop

2шт.

3044094R1

SPRING

1шт.

3064777R1

WASHER, plain

4шт.

3110880R91

SHEET, assy., hood (A), comprising

1шт.

3070342R2

STRIP

BUFFER, lid retainer

6шт.

3070513R2

STRIP, battery cover stop

1шт.

752345R1

NUT, weld (B2)

1шт.

Выбрано товаров: 29
