Запчасти Case IH 276 (4-04[1]) - AIR CLEANER AND CONNECTIONS, DIESEL (02) - ENGINE

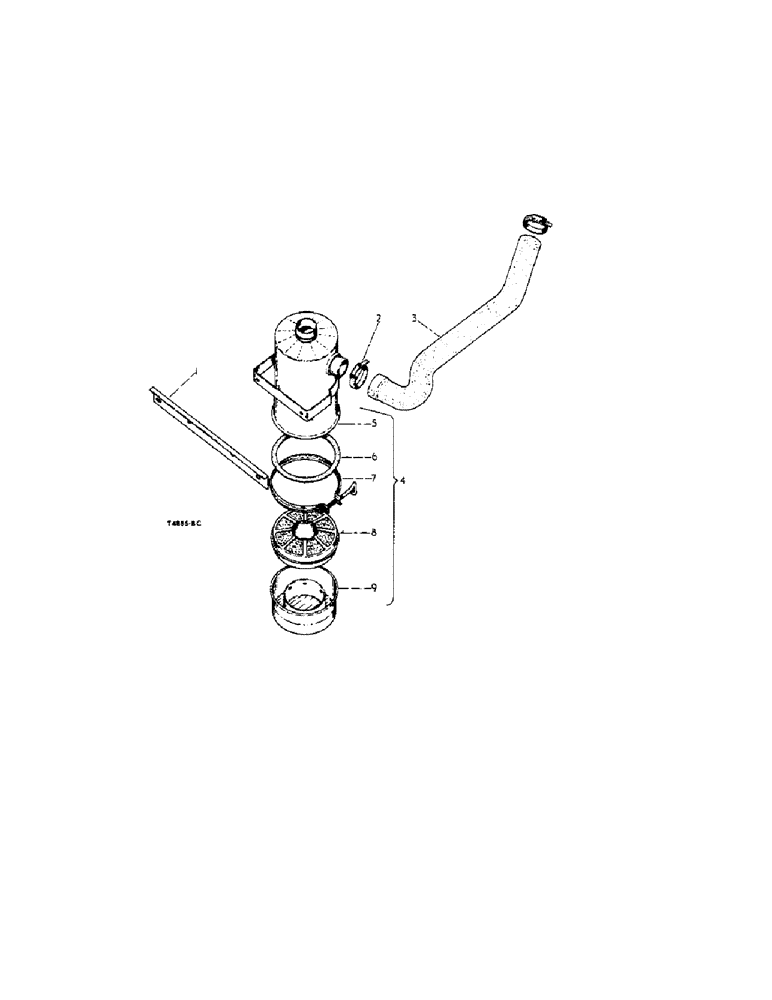

Схема запчастей Case IH 276 - (4-04[1]) - AIR CLEANER AND CONNECTIONS, DIESEL (02) - ENGINE
5
9
2
4
6
8
1
3
7

Артикул

Название

Примечание

Количество

1

3070385R1

BRACE, air cleaner support

1шт.

179814

SPACER

2шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

95-11034

WASHER,1/4"

plain, 11/32" x 11/16"

4шт.

2

3025291R91

CLIP

hose, worn drive

2шт.

3

3071263R1

HOSE

air cleaner connection

1шт.

4

3071527R91

FILTER

CLEANER, assy., oil bath, air, comprising

1шт.

5

3071528R91

HOUSING

SHELL, assy., & element

1шт.

6

3071531R1

RING

SEAL, ring

1шт.

7

3071530R1

CLAMP, assy.

1шт.

8

3071529R91

ELEMENT

assy., lower

1шт.

9

3071532R91

CONTAINER

oil

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Выбрано товаров: 17
