Запчасти Case IH 276 (2-17) - WATER PUMP AND THERMOSTAT HOUSING (02) - ENGINE

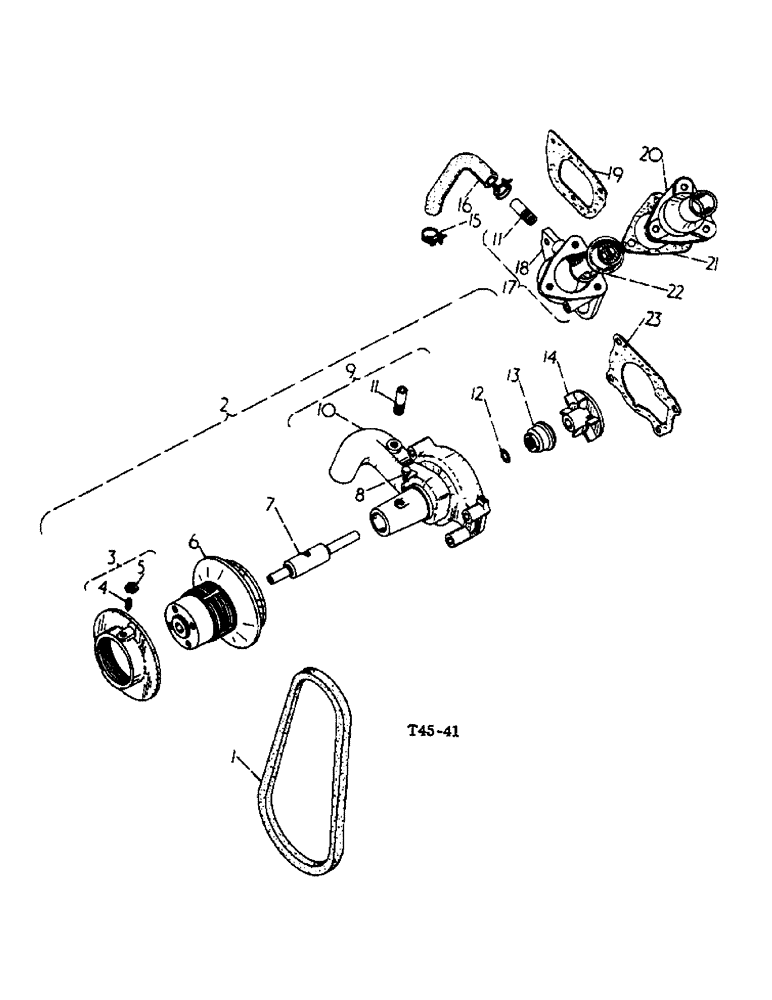

Схема запчастей Case IH 276 - (2-17) - WATER PUMP AND THERMOSTAT HOUSING (02) - ENGINE
4
20
7
18
12
19
16
13
5
23
8
14
9
22
10
11
2
15
21
6
3
1
11
17

Артикул

Название

Примечание

Количество

1

709502R1

BELT

BELT, Fan

1шт.

1

3060464R1

BELT,0.66" W

Fan (Premium grade - Special) 0.66" W

1шт.

2

703820R94

WATER PUMP

PUMP, water, cpte., comprising

1шт.

2

703820R95GV

WATER PUMP

Value, Water Pump Assy.

1шт.

3

703825R11

FLANGE

water pump pulley, cpte., w/SCREW 102831 and NUT 114502

1шт.

4

102831

SCREW

set, dog point, headless, 5/16" x 7/8"

1шт.

5

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

6

704222R1

HUB

water pump pulley

1шт.

7

704217R91

NO LONGER SERVICED

BEARING, water pump spindle (opt.)

1шт.

7

3042304R91

BEARING ASSY,0.6267" ID x 1.0616" OD x 2.25"

water pump spindle (opt.)

1шт.

7

3042676R91

CRANKSHAFT BEARING

BEARING, water pump spindle (opt.)

1шт.

8

704218R1

BOLT,1/4" - 20 x 1/2"

retaining, water pump beating

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

9

704216R41

BODY

water pump assy., w/BODY 704216R4 and TUBE 3065123R1

1шт.

10

704216R4

BODY

water pump

1шт.

11

3065123R1

TUBE

connection, thermostat by-pass

2шт.

12

252221R1

"O" RING, 9/16" x 3/4" x 3/32"

1шт.

13

703822R91

SEAL

water pump

1шт.

14

709909R2

TURBINE

IMPELLOR, water pump

1шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

15

3065128R91

COLLAR CLAMP

CLIP, thermostat by-pass hose

2шт.

16

3065127R1

HOSE,5.20", SAE 20R4 CLASS SC

5.20", SAE 20R4, Class SC, Thermostat By-Pass

1шт.

17

3069642R11

HOUSING

thermostat, cpte., w/TUBE 3065123R1 and HOUSING 3069642R1

2шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

18

3069642R1

HOUSING

thermostat

1шт.

19

703815R1

GASKET

thermostat housing

1шт.

20

3065126R1

COVER

thermostat housing

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

21

3065125R1

GASKET

thermostat housing cover

1шт.

22

3042303R91

THERMOSTAT

(170 degrees F - 199 degrees F)

1шт.

23

703816R1

GASKET

water pump

1шт.

3065132R92

PUMP

PACKAGE, service, water pump (on order for 703820R91)

1шт.

3106564R91

SERVICE KIT

PACKAGE, short water pump service, comprising

1шт.

704217R91

NO LONGER SERVICED

BEARING

1шт.

703816R1

GASKET

1шт.

709909R2

TURBINE

IMPELLOR

1шт.

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

"O" RING

1шт.

703822R91

SEAL

1шт.

Выбрано товаров: 42
