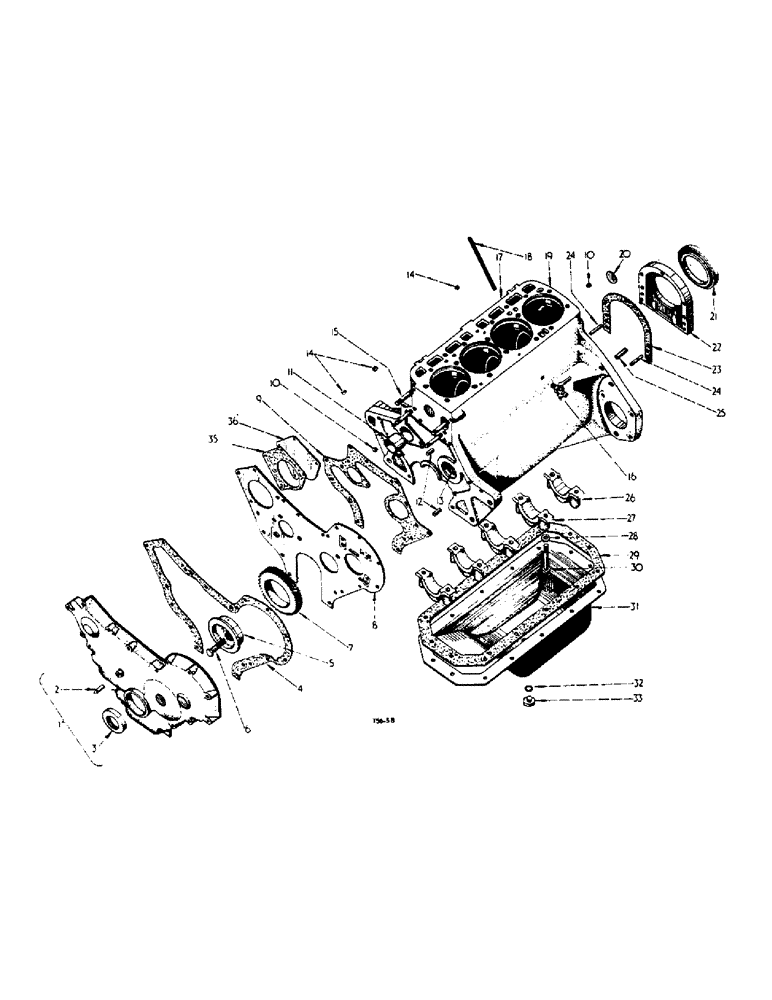

Запчасти Case IH 276 (2-05) - CRANKCASE, FRONT COVER AND OIL PAN (02) - ENGINE

1

3044166R92

COVER, crankcase front, cpte., w/OIL SEAL 703844R91 and POINTER 712064R1

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

179824

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 5

4шт.

179825

BOLT,Hex, 5/16" - 18 x 1 7/8", Gr 5

hex., 5/16 x 1-3/4"

4шт.

9635082

NUT,5/16" - 18, Gr 5

hex-hd., 5/16"

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

14шт.

2

712064R1

POINTER, timing

1шт.

3

3108650R91

SEAL

OIL SEAL, crankshaft front

1шт.

4

708285R1

GASKET

crankcase front cover

1шт.

5

3044191R1

SHAFT, idler gear

1шт.

6

181434

BOLT,Hex, 1/2" - 20 x 1 7/8", Gr 5

hex-hd., 1/2" UNF x 1-7/8"

1шт.

7

3044190R1

X

GEAR, idler

1шт.

8

3044164R91

PLATE, crankcase front, cpte., w/three LOCKS 46250D and three RIVETS 110638

1шт.

3047230R1

SCREW

mach., crankcase front plate

2шт.

9

709903R1

GASKET

crankcase front plate

1шт.

10

444691

PLUG

pipe

2шт.

11

703827R1

CAMSHAFT BEARING

BUSH, camshaft, front

1шт.

11

703828R1

CAMSHAFT BEARING

BUSH, camshaft, centre

1шт.

11

703829R1

CAMSHAFT BEARING

BUSH, camshaft, rear

1шт.

12

NLS

NO LONGER SERVICED

dowel (crankshaft front)

2шт.

13

751610R1

INSERT

lock, idler gear bolt screw, 1/2" UNF x 1/2"

1шт.

14

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

1шт.

15

703832R1

STUD

water pump

4шт.

16

106794

VALVE

TAP. water drain (opt.)

1шт.

16

707888R94

TAP, water drain (opt.)

1шт.

17

3044162R94

CRANKCASE

cpte., comprising

1шт.

3061211R1

BOLT,1/2" - 13 x 2.875"

10шт.

703827R1

CAMSHAFT BEARING

BUSH

1шт.

703828R1

CAMSHAFT BEARING

BUSH

1шт.

703829R1

CAMSHAFT BEARING

BUSH

1шт.

706491R2

CAP

1шт.

708902R2

BEARING CAP,2.273" ID x 1.1013"

CAP

1шт.

751610R1

INSERT

1шт.

751834R1

INSERT

14шт.

141287

DOWEL,1/2" x 1 1/2"

PIN

2шт.

141244

PIN

2шт.

141223

DOWEL,5/16" x 1"

PIN

2шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

3шт.

444691

PLUG

2шт.

172578

PLUG,Exp, 1 3/4"

1шт.

703877R1

STUD

1шт.

106794

VALVE

TAP

1шт.

751826R1

TUBE,0.375" OD, 5.75" Length

1шт.

3061325R1

WASHER

10шт.

18

751826R1

TUBE,0.375" OD, 5.75" Length

dipstick

1шт.

19

751834R1

INSERT

heli-coil thread, 7/16" - 14

14шт.

20

172578

PLUG,Exp, 1 3/4"

expansion, 1-3/4" dia. type 1

1шт.

21

3072092R1

OIL SEAL, crankshaft rear

1шт.

22

708904R1

RETAINER

crankshaft rear oil seal

1шт.

706732R1

BOLT,Hex, 5/16" - 18 x 1 1/8"

crankshaft rear oil seal retainer

7шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

23

708907R1

GASKET

crankshaft rear oil seal retainer

1шт.

24

141223

DOWEL,5/16" x 1"

PIN, dowel, crankshaft rear oil seal retainer

2шт.

25

141287

DOWEL,1/2" x 1 1/2"

PIN, dowel

2шт.

26

708902R2

BEARING CAP,2.273" ID x 1.1013"

CAP, crankshaft bearing, rear

1шт.

27

706491R2

CAP

crankshaft bearing

1шт.

28

709547R1

WASHER, crankshaft bearing cap bolt (used w/BOLT 708350R1)

10шт.

28

3061325R1

WASHER

crankshaft bearing cap bolt

10шт.

29

703840R1

GASKET

crankcase pan

1шт.

30

3061211R1

BOLT,1/2" - 13 x 2.875"

crankshaft bearing cap

10шт.

31

3064063R11

SUMP

PAN, crankcase oil, cpte.

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

14шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

14шт.

32

3405H

GASKET

crankcase pan drain plug (opt.)

1шт.

32

3043644R1

WASHER

GASKET, crankcase pan drain plug (opt.)

1шт.

33

445096

PLUG

crankcase pan drain

1шт.

34

703851R1

GASKET

hyd. pump opening cover

1шт.

35

703850R1

COVER

hyd. pump opening

1шт.

179825

BOLT,Hex, 5/16" - 18 x 1 7/8", Gr 5

3шт.

272391

BEARING ASSY,Hex, 5/16" - 18 x 2 1/8", Gr 5

hex-hd., 5/16" x 2-1/8"

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/8"

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

Q397

WASHER

3/4" x 11/32" x 16ga.

1шт.
