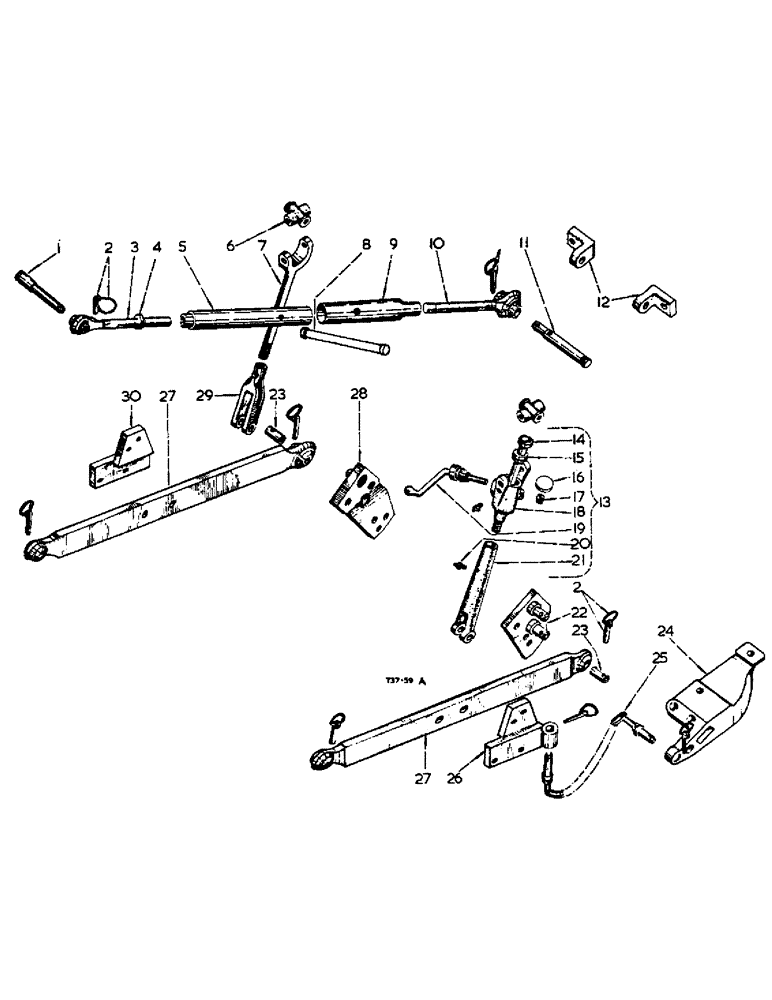

Запчасти Case IH 276 (7-10) - THREE POINT LINKAGE ATTACHMENT (88) - ACCESSORIES

751938R92

ATTACHMENT, three point linkage

1шт.

This attachment is available when tractors are already equipped with Hydraulic Lift Attachment only.

1шт.

751955R92

LINK, top, telescoping, cpte.,(Cat.

1шт.

704178R21

BOLT

EYEBOLT

1шт.

704177R21

BOLT

EYEBOLT

1шт.

3074660R11

HANDLE

1шт.

704179R1

LINK

1шт.

751956R1

LINK

1шт.

426899

NUT,Jam, 1"-8, G5

1шт.

1

704183R1

PIN

top link (Cat. I)

1шт.

2

704212R91

COTTER PIN

COTTER

10шт.

700531R1

NO LONGER SERVICED

COTTER, implement

10шт.

704187R1

LOCKING RING

RING, clip implement cotter

10шт.

3

704178R21

BOLT

EYEBOLT, top link cpte., (Cat I)

1шт.

4

426899

NUT,Jam, 1"-8, G5

jam., 1" (cad.-pltd.)

1шт.

5

704179R1

LINK

top, telescoping (half) (Cat.

1шт.

6

704179R1

LINK

SWIVEL, lift rod

2шт.

7

704541R3

ROD

lift upper half

1шт.

3044309R1

PIN

straight

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

8

3074660R11

HANDLE

1шт.

9

751956R1

LINK, top, telescoping (half) cpte.

1шт.

10

704177R21

BOLT

EYEBOLT, top link assy., (Cat. II)

1шт.

11

704182R1

PIN

top link (Cat. II)

1шт.

12

704779R3

BRACKET

check chain inner

2шт.

17439R1

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 2

hex-hd., 1/2" x 1-1/8"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

13

704196R95

ROD, lift, levelling, cpte., R.H.he

1шт.

704197R91

BALL BEARING

BEARING

1шт.

704195R4

BOX

1шт.

704200R32

CRANK

1шт.

704203R1

COLLAR

1шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

704205R3

NUT

1шт.

142507

GROOVED PIN

Pin, Grooved, 3/16" x 7/8", Type A

1шт.

172578

PLUG,Exp, 1 3/4"

1шт.

704198R1

ROD

1шт.

14

704198R1

ROD

levelling

1шт.

15

704197R91

BALL BEARING

BEARING, ball, thrust, 20mm. (opt.)

1шт.

15

704201R91

BALL BEARING

BEARING, ball, thrust, 20mm. (opt.)

1шт.

15

704202R91

BALL BEARING

BEARING, ball, thrust, 20mm. (opt.)

1шт.

16

172578

PLUG,Exp, 1 3/4"

expansion, 1-3/4" O.D.

1шт.

17

704203R1

COLLAR

levelling control crank

1шт.

NLS

NO LONGER SERVICED

Pin, Grooved, 3/16" x 7/8", Type A

1шт.

18

704195R4

BOX

levelling

1шт.

19

704200R32

CRANK

levelling control

1шт.

20

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , Lift rod 1/8"-27 x .66 lg

2шт.

21

704205R3

NUT

levelling rod

1шт.

22

704052R12

PLATE

drawbar support, cpte., R.H.

1шт.

23

704194R2

BUSHING

BUSH, lower link

2шт.

24

704213R2

BRACKET, check chain bracket L.H.

1шт.

24

704214R2

BRACKET

check chain bracket R.H.he

1шт.

18047R1

BOLT

hex-hd., 5/8" x 11"

4шт.

102639

NUT,5/8"-11, G5

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

25

704208R93

CHAIN (AG)

CHAIN check assy.

2шт.

26

751951R93

BRACKET, lower link, cpte., R.H.

1шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

hex-hd., 5/8" x 2"

2шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

27

751948R94

LINK

1шт.

3074662R1

HOLDER, lynch pin

4шт.

28

704051R12

PLATE

drawbar support, cpte., L.H.

1шт.

29

704542R5

ROD

lift lower half

1шт.

30

751950R93

BRACKET, lower link, cpte., L.H.

1шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

hex-hd., 5/8" x 2"

2шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

3044310R1

PIN, straight

2шт.

720631R1

LINCH PIN

PIN, cotter, 3/16" x 1"

2шт.

704190R51

END

lower link (Cat. I)

1шт.

704191R51

END

lower link (Cat. II)

1шт.
