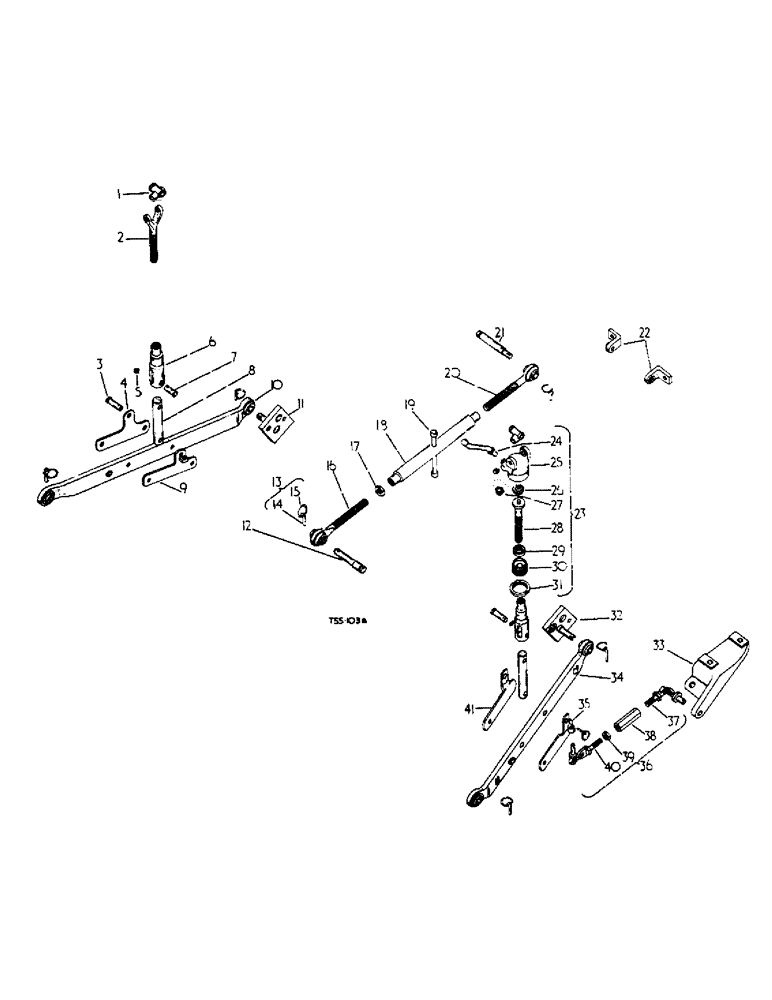

Запчасти Case IH 276 (7-08) - THREE POINT LINKAGE ATTACHMENT (88) - ACCESSORIES

, Serial Range: Key-Units

1шт.

3060811R91

ATTACHMENT, three point linkage (A)

1шт.

Used only with Hydraulic Lift Attachment, Vary Touch, when swinging drawbar is not fitted.

1шт.

3069517R91

ATTACHMENT, three point linkage (B)

1шт.

Used only with Hydraulic Lift Attachment, Vary Touch, when swinging drawbar is fitted

1шт.

Letters of these units correspond with those following the description of the parts in the list below and identifies the unit for which the part is used. Items without letters after the description indicates the part is used for all units.

1шт.

1

704207R2

NO LONGER SERVICED

SWIVEL, lift rod

2шт.

3045859R2

SWIVEL, lift rod (Australia only)

2шт.

3044309R1

PIN

hardened, 5/8" x 3-3/8"

1шт.

3069069R1

PIN

hardened, 5/8" x 3-3/4"

1шт.

432-1216

COTTER PIN,3/16" x 1"

PIN, cotter, 7/16" x 1"

2шт.

2

3044350R1

ROD

lift, upper half L.H.

1шт.

3

PO15149

PIN, std-htd., 3/4" x 3-3/4"

2шт.

119181

PIN, cotter, 1/4" x 1-7/8"

2шт.

4

3060818R91

CLEVIS, lift rod L.H. cpte.

1шт.

5

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

6

3045186R1

TUBE,1.5" ID, 1.906" OD, 7.8" Length

telescoping lift rod

2шт.

7

708884R1

AXLE PIN

PIN, std-hd., 3/4" x 2-7/16"

2шт.

575813R1

WASHER

25/32" x 1-1/4" x 11 ga.

2шт.

720631R1

LINCH PIN

CLIP, spring

2шт.

8

3048304R1

ROD, lift lower half

2шт.

9

3060823R91

CLEVIS, lift rod R.H. cpte.

1шт.

10

3060816R11

LINK, lower, L.H. cpte., comprising

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

3060818R91

CLEVIS

1шт.

3060823R91

CLEVIS

1шт.

3074662R1

HOLDER

2шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

3074662R1

HOLDER, lynch pin

2шт.

11

3060141R91

PLATE, linkage hitch cpte., L.H.8"

1шт.

13-1222

BOLT,Hex, 3/4" - 10 x 1-3/8", Gr 5

CAPSCREW, hex-hd., 3/4" x 1-3/8"

1шт.

114610

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

1шт.

3060812R91

LINK, top cpte., comprising

1шт.

19952

BOLT

1шт.

704177

EYEBOLT

1шт.

704178

EYEBOLT

1шт.

426899

NUT,Jam, 1"-8, G5

1шт.

3069869R1

NUT

1шт.

3060813R1

TURNBUCKLE

1шт.

12

3074755R1

PIN

top link (Cat. I)

1шт.

3074763R1

RETAINER

CIRCLIP

1шт.

13

704212R91

COTTER PIN

1шт.

14

700531R1

NO LONGER SERVICED

COTTER, implement

2шт.

15

704187R1

LOCKING RING

RING, clip, implement cotter

2шт.

16

704178R21

BOLT

EYEBOLT, top link assy., (Cat I)

1шт.

17

426899

NUT,Jam, 1"-8, G5

hex., jam., 1" (cad.-pltd)

1шт.

18

3060813R1

TURNBUCKLE, top link

1шт.

19

19952R1

BOLT,Hex, 1/2" - 13 x 7", Gr 5

hex-hd., 1/2" x 7"(cad.-pltd)

1шт.

3069861R1

NUT

self sealing 1/2"

1шт.

20

704177R21

BOLT

EYEBOLT, top link (Cat.II)

1шт.

21

3074756R1

PIN

top link (Cat. II)

1шт.

3074763R1

RETAINER

CIRCLIP

1шт.

22

704779R3

BRACKET

check chain inner

2шт.

17439R1

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 2

hex-hd., 1/2" x 1-1/8"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

23

3069056R91

ROD

levelling lift cpte.,, R.H.e.

1шт.

24

3069062R11

CRANK

leveling lift cpte.

1шт.

25

3069057R1

BOX

gear levelling

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

26

3069067R1

GEAR WHEEL

GEAR, lift rod

1шт.

27

3069063R1

GEAR

PINION, levelling box

1шт.

142506

LATCH

Pin, Grooved, 3/16" x 3/4", Type A

1шт.

28

3069066R1

ROD

levelling

1шт.

29

3044346R91

BALL BEARING

ball 1" (opt. )

1шт.

29

3044347R91

THRUST BEARING

BEARING, thrust ball 1" (opt. )

1шт.

29

3044348R91

BEARING, THRUST

ball 1" (opt. )

1шт.

29

3044349R91

BEARING, thrust ball 1" (opt. )

1шт.

30

3069064R1

BEARING

levelling rod

1шт.

31

3069065R1

LOCK NUT

lift rod bearing

1шт.

32

3060815R91

PLATE, linkage hitch cpte., R.H.e.

1шт.

13-1222

BOLT,Hex, 3/4" - 10 x 1-3/8", Gr 5

CAPSCREW, hex-hd., 3/4" xoothRe.

1шт.

114610

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

1шт.

33

3060815R91

BRACKET, check chain L.H.

1шт.

33

3060827R1

BRACKET, check chain R.H. HOLDERe.

1шт.

17596R1

BOLT, hex-hd., 5/8" x 7-3/4"

4шт.

102639

NUT,5/8"-11, G5

4шт.

34

3060817R91

LINK, lower R.H. cpte., comprising

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

3060819R91

CLEVIS

1шт.

3060822R91

CLEVIS

1шт.

704212R91

COTTER PIN

COTTER

2шт.

3074662R1

HOLDER

2шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

3074662R1

HOLDER, lynch pin

2шт.

35

3060819R91

CLEVIS, lift rod, R.H. cpte.

1шт.

36

3048454R91

X

1шт.

37

3048456R91

CHAIN (AG)

CHAIN, check tractor end

1шт.

38

3048314R1

NUT

adjustment check chain

1шт.

39

218443

NUT

hex., jam., 3/4"

1шт.

40

3048455R91

CHAIN (AG)

CHAIN, check link end cpte.

1шт.

41

3060822R91

CLEVIS, lift rod L.H. cpte.

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

102639

NUT,5/8"-11, G5

4шт.

704194R2

BUSHING

BUSH, lower link

2шт.

704212R91

COTTER PIN

1шт.

700531R1

NO LONGER SERVICED

COTTER, implement

4шт.

704187R1

LOCKING RING

RING, implement cotter

4шт.

709307R92

BOLT

1шт.

3074763R1

RETAINER

CIRCLIP

1шт.

704212R91

COTTER PIN

COTTER

1шт.

704178R21

BOLT

EYEBOLT

1шт.

218445

NUT,Jam, 1"-8, G5

1шт.

3074755R1

PIN

1шт.

709308R92

BOLT

1шт.

3074763R1

RETAINER

CIRCLIP

1шт.

704212R91

COTTER PIN

COTTER

1шт.

704177R21

BOLT

EYEBOLT

1шт.

3074756R1

PIN

1шт.
