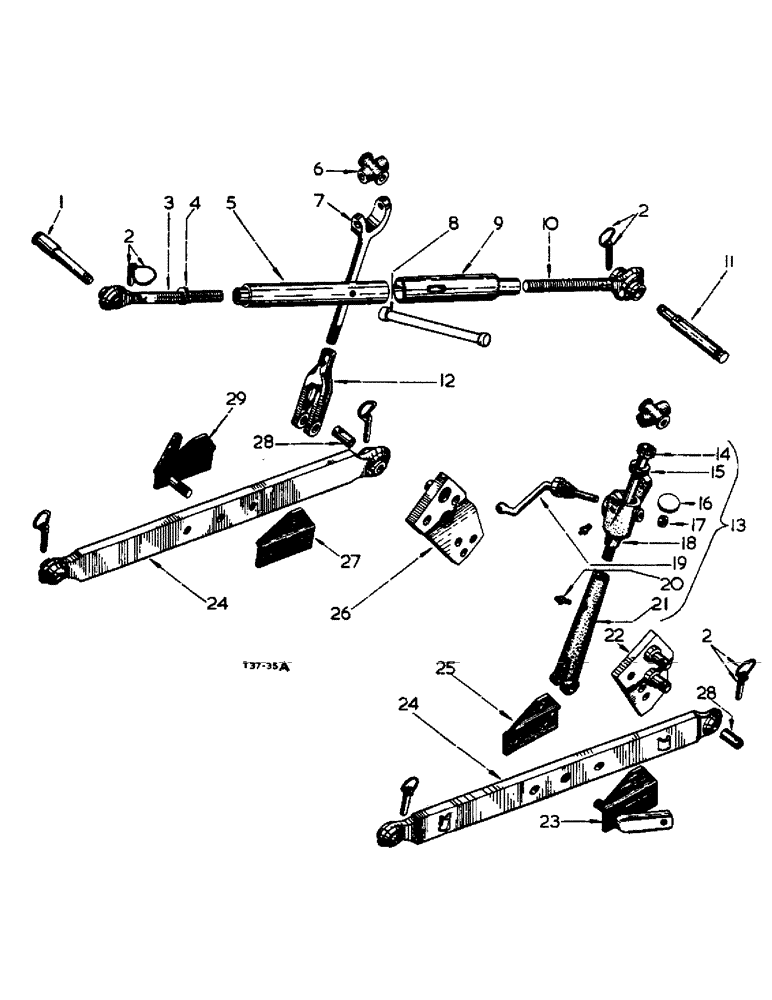

Запчасти Case IH 276 (7-04) - THREE POINT LINKAGE ATTACHMENT (88) - ACCESSORIES

709981R92

ATTACHMENT, three point linkage

1шт.

This attachment is available when tractors are already equipped with Hydraulic Lift Attachment only.

1шт.

709995R93

LINK, top telescoping, cpte.,.,ERER

1шт.

704178R21

BOLT

EYEBOLT

1шт.

704177R21

BOLT

EYEBOLT

1шт.

3074660R11

HANDLE

1шт.

704179R1

LINK

1шт.

843821R11

LINK

1шт.

426899

NUT,Jam, 1"-8, G5

1шт.

1

704183R1

PIN

top link (Cat. I)

1шт.

2

704212R91

COTTER PIN

COTTER

1шт.

700531R1

NO LONGER SERVICED

COTTER, implement

6шт.

704187R1

LOCKING RING

RING, clip, implement cotter

6шт.

3

704178R21

BOLT

EYEBOLT, top link cpte., (Cat.I)

1шт.

4

426899

NUT,Jam, 1"-8, G5

hex., jam., 1" (cad.-pltd.)

1шт.

5

704179R1

LINK

top, telescoping(half)..,ERER

1шт.

6

3045859R1

PIVOT

SWIVEL, lift rod

2шт.

7

704541R3

ROD

lift, upper half

1шт.

3044309R1

PIN

straight

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

8

3074660R11

HANDLE

cpte.

1шт.

9

843821R11

LINK, top, telescoping (half) cpte.

1шт.

10

704177R21

BOLT

EYEBOLT, top link, assy., (Cat.II)

1шт.

11

704182R1

PIN

top link (Cat. II)

1шт.

12

704542R5

ROD

lift, lower half

1шт.

13

704796R95

ROD, lift,leveling, cpte.,mm..,ERER

1шт.

704197R91

BALL BEARING

BEARING

1шт.

704195R4

BOX

1шт.

704200R32

CRANK

1шт.

704203R1

COLLAR

1шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

704205R3

NUT

1шт.

142507

GROOVED PIN

Pin, Grooved, 3/16" x 7/8", Type A

1шт.

172578

PLUG,Exp, 1 3/4"

1шт.

704198R1

ROD

1шт.

14

704198R1

ROD

leveling

1шт.

15

704197R91

BALL BEARING

BEARING, ball, thrust, 20 mm..,ERER

1шт.

15

704201R91

BALL BEARING

BEARING, ball, thrust, 20 mm..,ERER

1шт.

15

704202R91

BALL BEARING

BEARING, ball, thrust, 20 mm..,ERER

1шт.

16

172578

PLUG,Exp, 1 3/4"

expansion, 1-3/4" O.D.

1шт.

17

704203R1

COLLAR

levelling control crank

1шт.

NLS

NO LONGER SERVICED

Pin, Grooved, 3/16" x 7/8", Type A

1шт.

18

704195R4

BOX

levelling

1шт.

19

704200R32

CRANK

levelling, control

1шт.

20

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , Lift rod 1/8"-27 x .66 lg

2шт.

21

704205R3

NUT

levelling rod

1шт.

22

704052R12

PLATE

drawboat support, cpte.,ERER

1шт.

23

843834R11

BRACKET, link, outer right, cpte.

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

2шт.

218197

NUT,3/4"-16, G5

hex., 3/4" UNF

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

24

709993R94

1шт.

3074662R1

HOLDER, lynch pin

2шт.

25

843835R1

BRACKET, link, inner, R.H.

1шт.

26

704051R12

PLATE

drawbar support, cpte., L.H.

1шт.

27

843834R1

BRACKET, link, inner L.H.

1шт.

28

704194R2

BUSHING

BUSH, lower link

2шт.

29

843835R11

BRACKET, link, outer left

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

2шт.

218197

NUT,3/4"-16, G5

hex., 3/4" UNF

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

704190R51

END

lower link (Cat. I)

1шт.

704191R51

END

lower link (Cat.II)

1шт.
