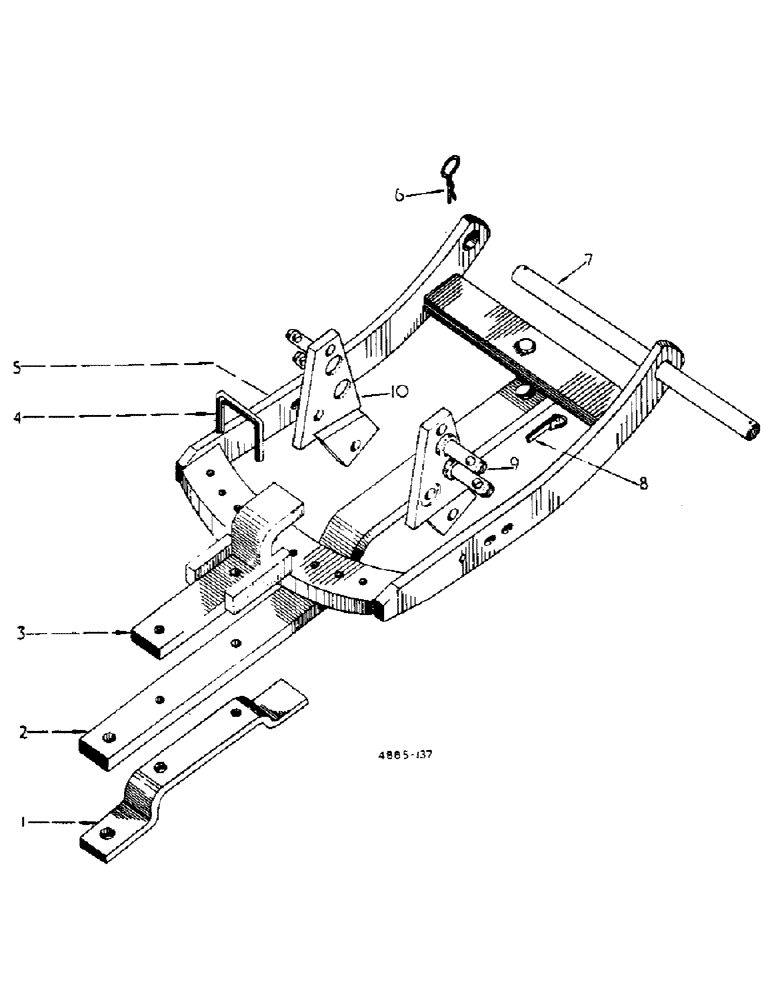

Запчасти Case IH 276 (7-03) - DRAWER ATTACHMENTS (88) - ACCESSORIES

3070062R92

ATTACHMENT, swinging drawbar & drawbar frame for machines without three point linkage (A)

1шт.

3070063R92

1шт.

ATTACHMENT, swinging drawbar & drawbar frame for machines with three point linkage (B) Units. Letters of these units correspond with those following the description of the parts in the list below and identifies the unit for which the part is used. Items without letters after the description indicates the part is used for all units.

1шт.

1

704060R3

CLEVIS

drawbar

1шт.

2

3071321R1

SWINGING DRAWBAR

DRAWBAR, swinging

1шт.

3043023R2

BOLT, hex-hd., 5/8" x 2-1/2"

2шт.

102639

NUT,5/8"-11, G5

2шт.

3

3072680R91

RETAINER, drawbar, cpte.

1шт.

4

3071189R1

PIN, stop, swinging drawbar

1шт.

720631R1

LINCH PIN

PIN, cotter

1шт.

5

3071327R91

FRAME

drawbar, cpte.

1шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

hex-hd., 3/4" x 2-1/4"

2шт.

425-1012

NUT,3/4"-10, G5

hex, 3/4"

2шт.

6

3067210R91

CLIP, spring

2шт.

7

704058R1

PIN

drawbar frame

1шт.

8

704212R91

COTTER PIN

PIN, implement cotter

1шт.

700531R1

NO LONGER SERVICED

COTTER, implement

1шт.

704187R1

LOCKING RING

RING, clip, implement cotter

1шт.

9

3064336R91

PLATE, drawbar support, cpte., R.H. (A)

1шт.

271606

BOLT,Hex, 3/4" - 10 x 1 3/8", Gr 5

hex-hd., 3/4" x 1-3/8" (A 2)

1шт.

114610

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4" (A2)

1шт.

10

3064335R91

PLATE, drawbar support, cpte., L.H. (A)

1шт.

NLS

NO LONGER SERVICED

hex-hd., 3/4" x 1-3/8" (A 2)

1шт.

114610

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4" (A2)

1шт.
