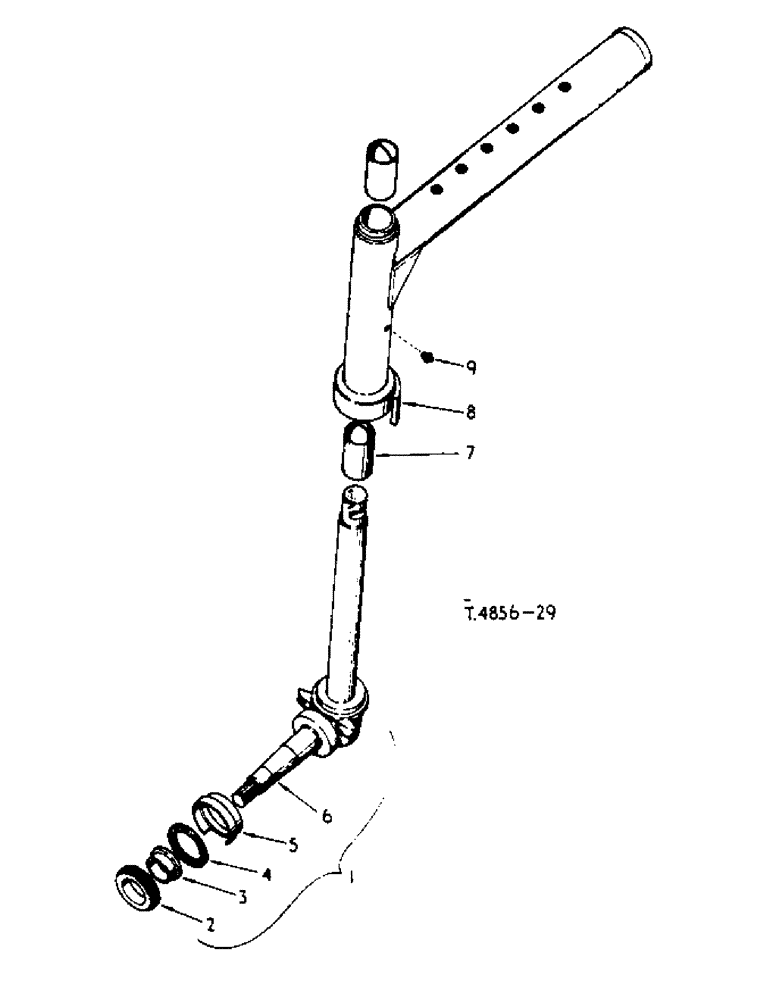

Запчасти Case IH 276 (7-02) - FRONT AXLE EXTENSION AND STEERING KNUCKLES (88) - ACCESSORIES

1

3066603R91

KNUCKLE, steering, cpte., R.H., comprising

1шт.

48539D

OIL SEAL

1шт.

50270D

SPACER

1шт.

48541D

SHIELD

1шт.

50259D

WASHER

WASHER

1шт.

2

48539D

OIL SEAL, front wheel (opt.)

2шт.

2

704083R91

SEAL

OIL SEAL, front wheel (opt.)

2шт.

2

3042600R91

RH DOOR LOCK

OIL SEAL, front wheel (opt.)

2шт.

3

50270D

SPACER

front wheel beating

2шт.

4

50259D

WASHER

WASHER, felt, front wheel

2шт.

5

48541D

SHIELD

dust, front wheel

2шт.

6

NSS

NOT SOLD SEPARAT

KNUCKLE, steering

1шт.

7

751942R1

BUSHING

BUSH, steering knuckle pivot pin

4шт.

8

3107961R91

EXTENSION

front axle, cpte., R.H. w/two BUSH 751942R1 and LUBRICATOR 109461

1шт.

9

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PT, Optional 1/8"-27 x .66 lg

2шт.

9

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , Optional 1/8"-27 x .66 lg

2шт.

751947R91

BEARING

thrust, steering knuckle

2шт.

3107960R91

EXTENSION

steering, cpte., L.H. w/two BUSH 751942R1 and LUBRICATOR 109461

1шт.

3066602R91

STEERING KNUCKLE

KNUCKLE, steering, cpte., L.H., comprising

1шт.

48539D

OIL SEAL

1шт.

50270D

SPACER

1шт.

48541D

SHIELD

1шт.

50259D

WASHER

WASHER

1шт.

1026269R1

TRANSFER, "High Clear"

2шт.

1080020R2

PRODUCT GRAPHIC

TRANSFER, "Caution"

1шт.
