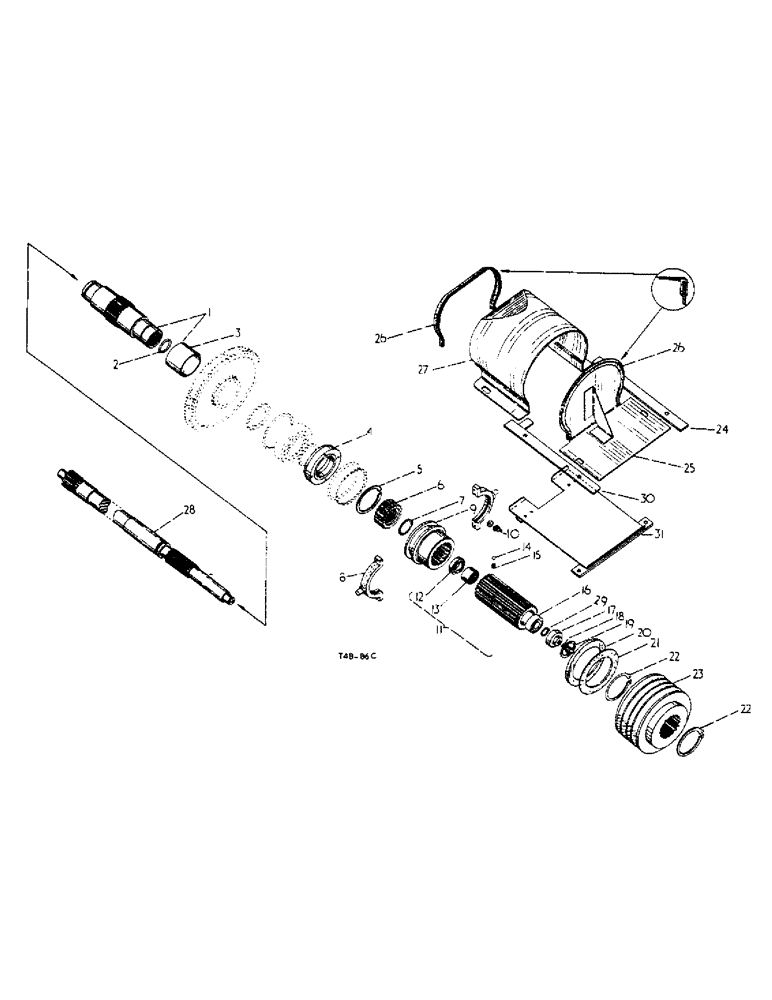

Запчасти Case IH 276 (6-66) - MOWER DRIVE GEARS AND SHAFTS, TWO SPEED, A.B., MOWER DRIVE ATTACHMENTS (88) - ACCESSORIES

1

3048768R11

SHAFT

COUNTERSHIFT, two speed P.T.O.,.,ng

1шт.

2

151244R1

O-RING

"O" RING

1шт.

3

751159R1

BUSHING

BUSH, SN 148 x 1-5/8" COMP

1шт.

4

3048093R21

CARRIER

P.T.O. gear seal, cpte.,ng

1шт.

3048094R91

SEAL

P.T.O. gear oil (optional)

1шт.

3070047R91

SEAL

P.T.O. gear oil (optional)

1шт.

3070048R91

SEAL

P.T.O. gear oil (optional)

1шт.

5

3074379R1

SNAP RING

CIRCLIP, Anderton type 1400 60mm.ng

1шт.

5

3064407R1

SNAP RING

CIRCLIP, retaining sliding coupling

1шт.

5

703696R1

RING

CIRCLIP, retaining sliding coupling

1шт.

6

3064405R1

GEAR

pulley driving

1шт.

7

3064406R1

RETAINER

CIRCLIP, retaining, pulley drivinge

1шт.

8

3065188R91

COLLAR

gear shifter, assy., SEALhe

1шт.

179798

BOLT,Hex, 1/4" - 20 x 1 1/8", Gr 5

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

9

3064418R1

COUPLING, BREAK AWAY

COUPLING, sliding

1шт.

10

109366

LUBRICATOR, angle, drive type

1шт.

11

3064408R21

GEAR

sliding quill cpte.,IL SEALhe

1шт.

12

3064409R91

SEAL

OIL SEAL, sliding quill gear gearhe

1шт.

12

3064502R91

SEAL

OIL SEAL, sliding quill gear gearhe

1шт.

13

3064410R91

NEEDLE BEARING

BEARING, needle (optional)

1шт.

13

3064503R91

NEEDLE BEARING

BEARING, needle (optional)

1шт.

13

3064504R91

BEARING

needle (optional)

1шт.

14

3072885R1

BALL,1/4" Dia

steel, .250" dia

3шт.

15

3064416R1

BRACKET

SPRING, compression

1шт.

16

3064411R91

BEARING

ball, sliding quill gear, opt.

1шт.

Furnish with 3070970R1, 3064408R21 and 109462

1шт.

16

3064462R91

BALL BEARING

BEARING, ball, sliding quill gearhe

1шт.

17

3070970R1

SPACER

PIECE, distance

1шт.

18

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

LUBRICATOR

1шт.

19

3064415R1

RETAINER

CIRCLIP, internal, sliding quilldhe

1шт.

20

3064423R1

RETAINER

rubber sealing

1шт.

21

3064422R1

WASHER

RUBBER, sealing

1шт.

22

3074379R1

SNAP RING

CIRCLIP, Anderson type 1400, 60 mm, opt.

1шт.

22

3064407R1

SNAP RING

CIRCLIP, retaining, pulley (opt.)

2шт.

22

703696R1

RING

CIRCLIP, retaining, pulley (opt.)

2шт.

23

3064421R1

PULLEY

mower drive

1шт.

24

3064452R1

STIFFENER, mower drive pulley cover

1шт.

25

3064450R11

COVER

mower drive pulley cage,ndhe

1шт.

26

3064453R1

STRIP

cover sealing

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

27

3064448R21

SHIELD

CAGE, mower drive pulley, cpte.

1шт.

28

3064404R3

SHAFT

P.T.O. front

1шт.

29

3064412R1

RETAINER

CIRCLIP, outer P.T.O. shaft front

1шт.

3065319R1

SHIM

1шт.

30

3064452R11

REINFORCEMENT

STIFFENER, cpte., pulley cover

1шт.

31

3068913R11

COVER

cpte., clutch housing handhe

1шт.
